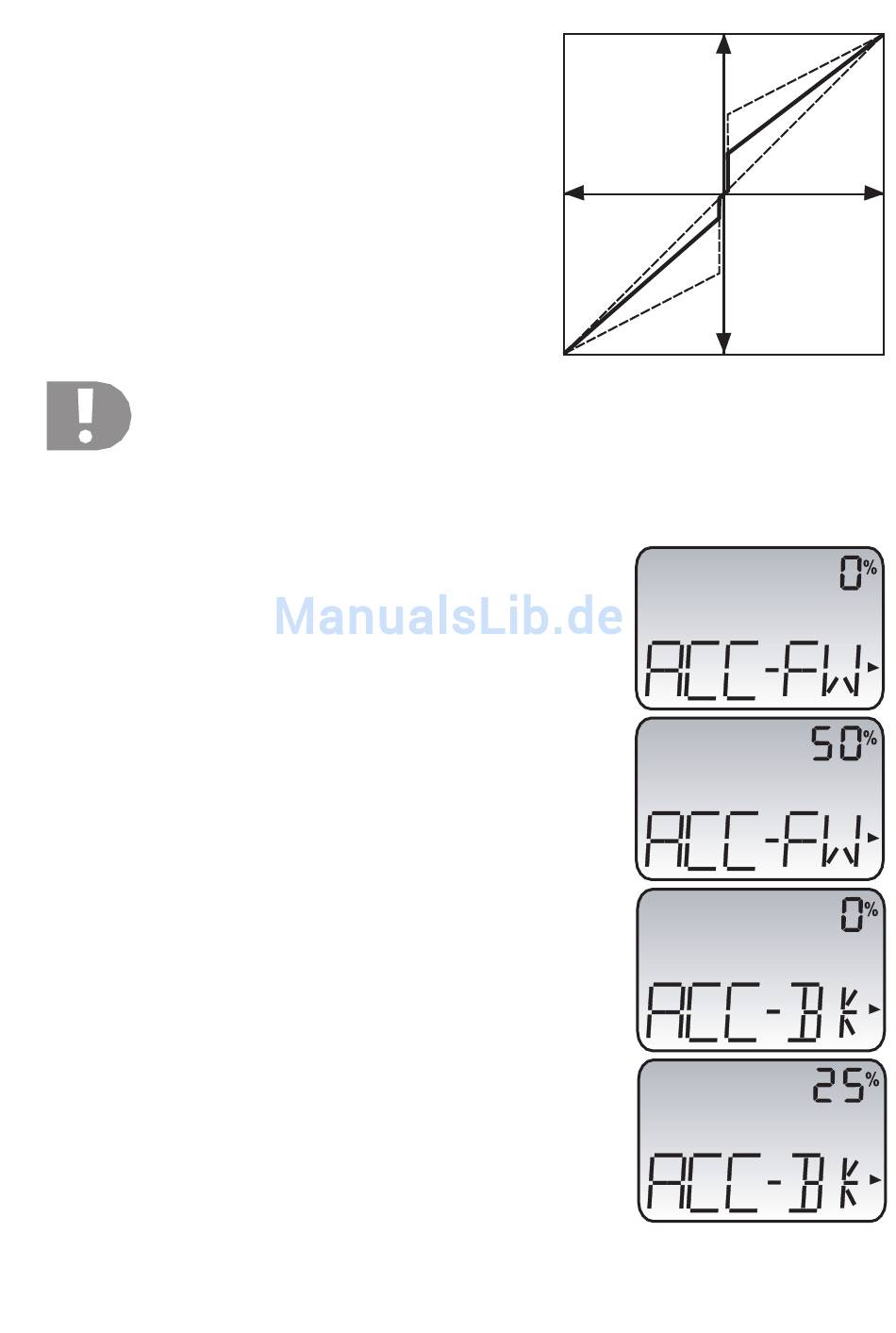

The diagram on the side shows the curve process with activate throttle/
brake acceleration. For both the throttle function (ACC-FW) as well
as the brake function (ACC-BK), the value can be adjusted from 0%
to 100%.
The straight interrupted line shows the setting 0% and the angled
interrupted line the setting 100%, whereby the maximum value
corresponds to half each of the available servo path.
The continuous line corresponds to a throttle servo curve with ca.
50% throttle acceleration and 25% brake acceleration.
Important!
The activation of this function requires an optimally set carburettor that does not "hiccup" when suddenly
accelerating, but instead increases the rotation speed at once.
Setting the servo path for throttle/brake acceleration
• Switch on the transmitter. On the transmitter's LC display the operating display
will appear.
• Press the SEL button (see ill. 1, pos. 3) five times to access the menu for
setting the throttle/brake acceleration.
• Next to the menu display „ACC-FW", the display also shows the default or
the last set value for the throttle acceleration.
• With the plus and minus buttons (see illustration 1, pos. 4) you can now set
the desired value for the throttle speed between 0 and 100%.
• Then press the CH button (see ill. 1, pos. 5).
• Next to the menu display „ACC-BK" now appears, and the display also shows
the default or the last set value for the brake acceleration.
• With the plus and minus buttons (see illustration 1, pos. 4) you can now set
the desired value between 0 and 100%.
92
SERVO
100
50
STICK
0
0
25
ACC-BK
100
SERVO
ACC-FW
STICK
Figure 39
Figure 40
