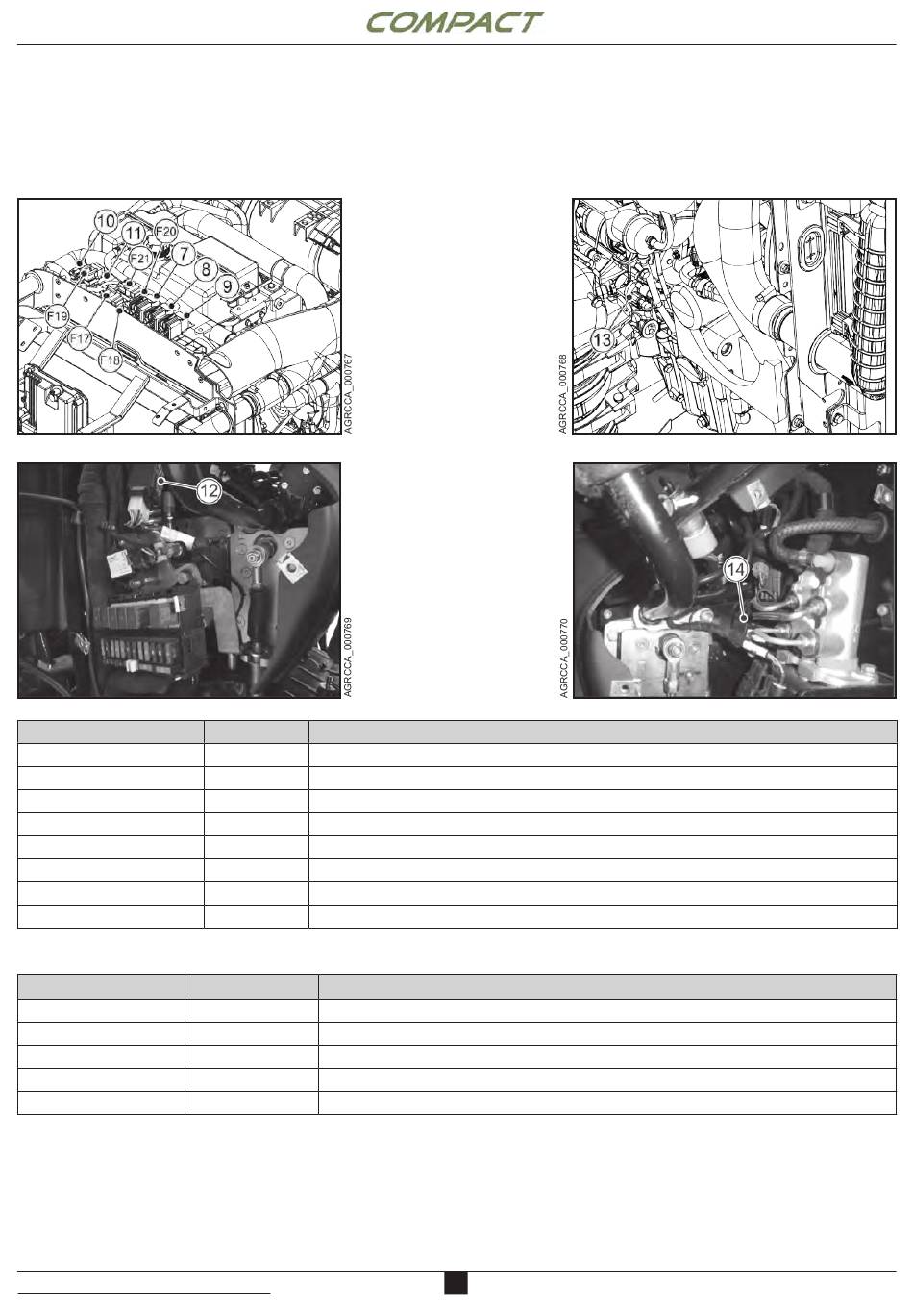

Weitere Relais und Sicherungen am Fahrzeug
Die folgenden Komponenten befinden sich oberhalb
des Kühlers innerhalb der Haube und unterhalb des
Armaturenbretts.
Position / Position
7
8
9
10
11
12
13
14
(*) falls vorhanden / If fitted
Posizione / Position Tipo / Type
F17
F18
F19
F20
F21
(*) falls vorhanden / If fitted
revision 0 date: 07/19 doc. AG525995
Typ /Type
Funktion des Relais / Relay function
12V / 30A
Neutral start relay
12V / 30A
FP1 fuel pump
12V / 30A
FP2 fuel pump
12V / 30A
Led R1 starting engine day lights ON
12V / 30A
Led R2 low&hight beam on / Day lights OFF
12V / 21W
Blinker / Flasher
12V / 30A
Anlasser-Relais / Start Relay
12V / 30A
PWM (*)
Funktion der Sicherung / Fuse function
30A
MD1 ECU Protection
20A
FP Pump Protection
5A
Diagnostic socket, neutral realy, +15
50A
Main protection
7.5A
Led lights protection
Other fuse located on vehicle
The following components are located above the
radiator inside the bonnet and under dashboard cowl.
5
