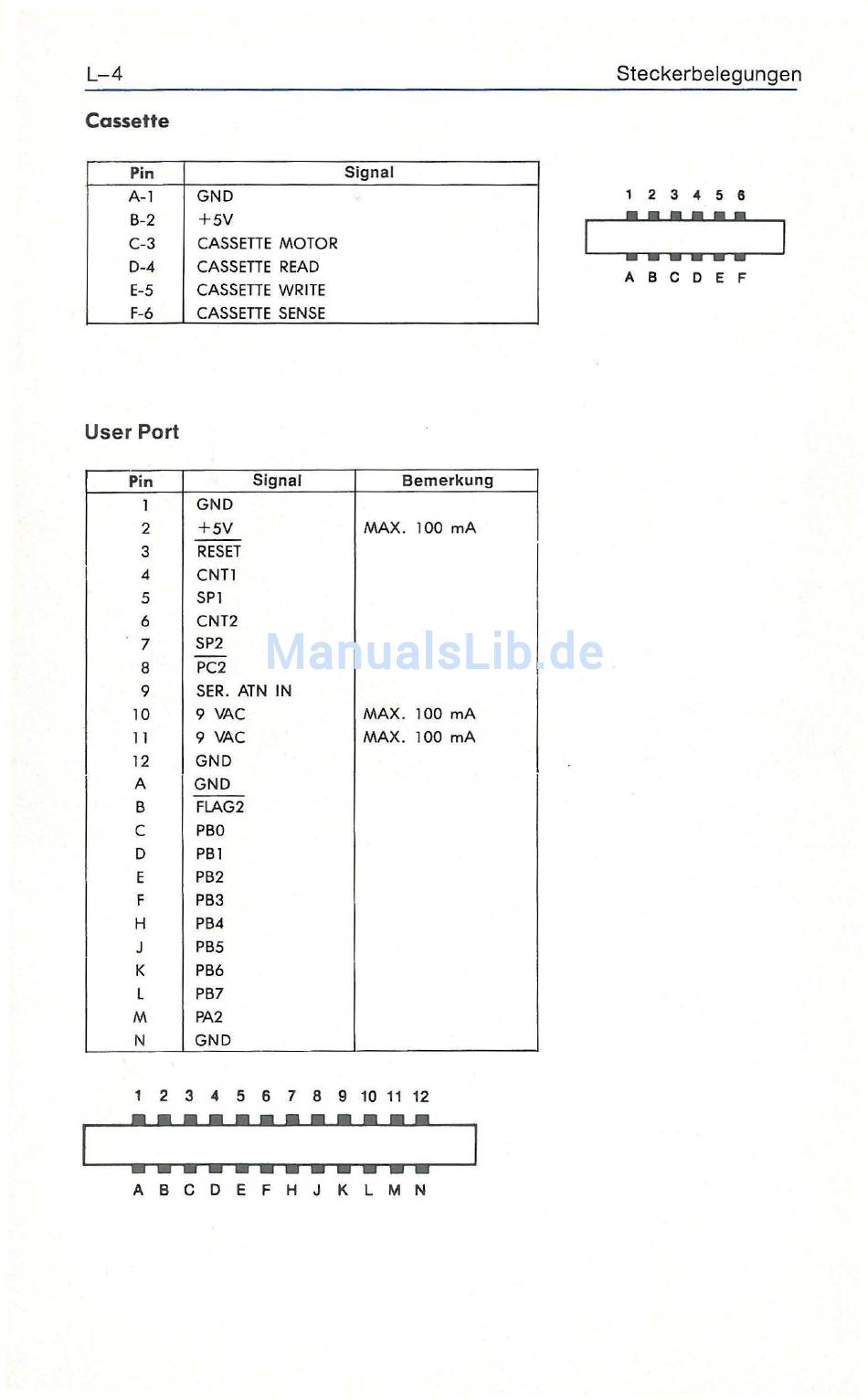

Commodore 128 Bedienungshandbuch Seite 482

L - 4
Cassette
Pin
A-1 GND
B-2 +5V
C-3 CASSETTE MOTOR
D-4 CASSETTE READ
E-5 CASSETTE WRITE
F-6 CASSETTE SENSE
User Port
Pin
1 GND
2 + 5V
3 RESET
4 CNT1
5 SP1
6 CNT2
SP2
7
8 PC2
9 SER. ATN IN
10 9 VAC
11 9 VAC
GND
12
A GND
B FLAG2
C PBO
D PB1
E PB2
F PB3
PB4
H
J PB5
K PB6
PB7
L
M PA2
GND
N
1 2 3 4 5
A B C D E F H J K L M N
Bemerkung
Signal
MAX. 100 mA
MAX. 100 mA
MAX. 100 mA
6 7 8 9 10 11 12
Steckerbelegungen
