7.1

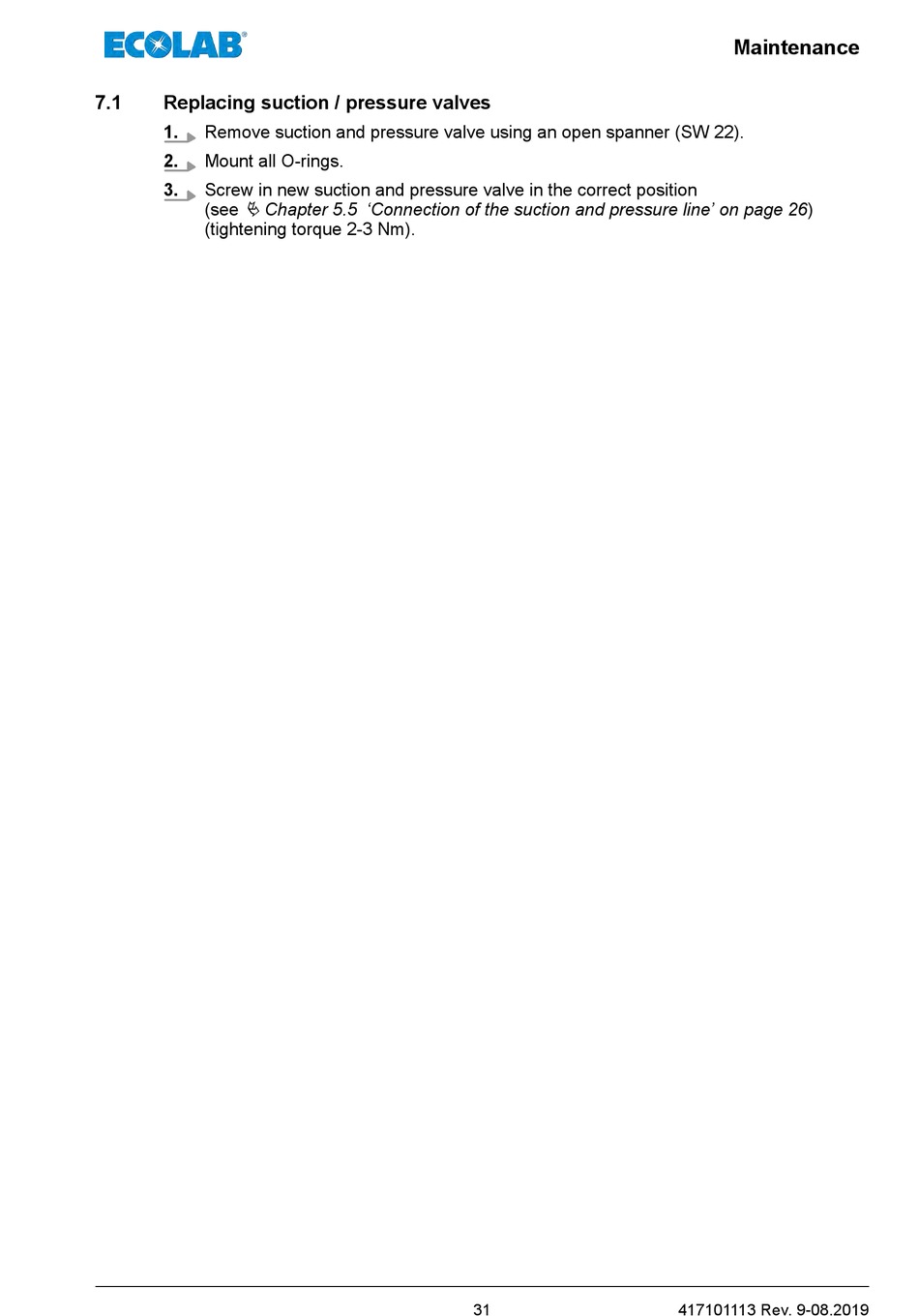

Replacing suction / pressure valves

1. Remove suction and pressure valve using an open spanner (SW 22).
2. Mount all O-rings.
3. Screw in new suction and pressure valve in the correct position
(see Ä Chapter 5.5 'Connection of the suction and pressure line' on page 26)
(tightening torque 2-3 Nm).
31
Maintenance
417101113 Rev. 9-08.2019
