Maintenance

8.1

Dismantling of the oval gear meter

4
3
2
1

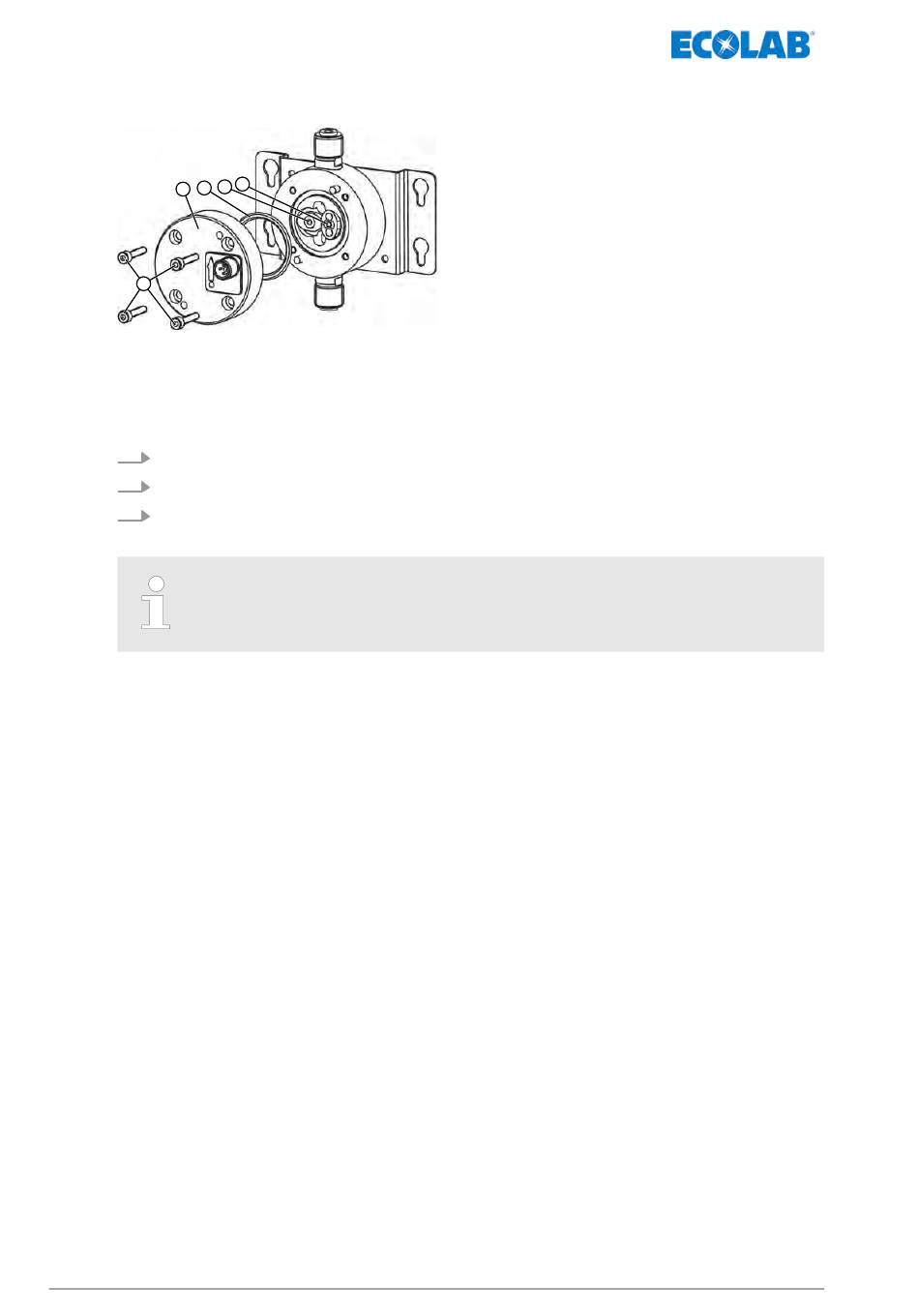

Fig. 5: Maitenance
1 Housing bolts
2 Cover
3 O-Ring
1. Remove the four bolts (Fig. 5, Pos. 1) on the oval gear meter.
2. Remove the cover (Fig. 5, Pos. 2).
3. Remove the two oval gear wheels (Fig. 5, Pos. 4 + Pos. 5) and clean or replace
them.
It is recommended in all cases that the O-ring seal (Fig. 5, Pos. 3) between
the cover and the housing should always be renewed.
417102208 Rev. 8-11.2019
5
4 Oval Gear Wheel – 1
5 Oval Gear Wheel – 2 with solenoid
