Assembly and connection
Overview:
1 2

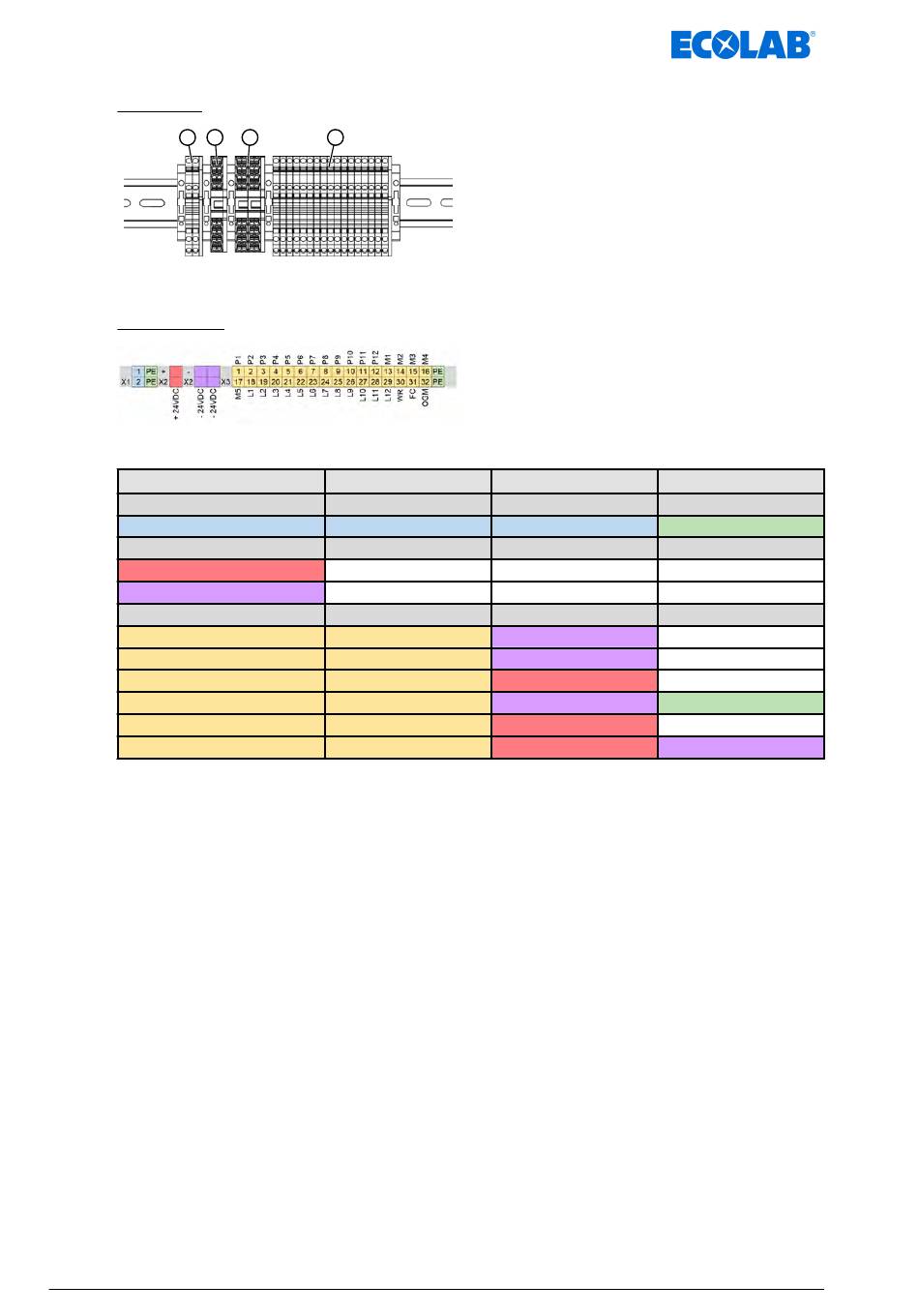

Fig. 11: Terminal board overview (example)
Assignment:
Fig. 12: Terminal assignment - allocation (example)
Type
Terminal block -X1
Pump 1
Terminal block -X2
+24VDC
-24VDC
Terminal block -X3
Product valve (P1–P12)
Machine valve (M1–M5)
Empty signal (L1–L12)
Rinse valve (VR)
Flow rate sensor (FC)
Flow rate meter (OGM)
MAN053089 Rev. 1-11.2023
3 4
Connection 1
Terminal 1 (L)
Terminal 1 - 12
Terminal 13–17
Terminal 18–29
Terminal 30
Terminal 31
Terminal 32
Connection 2
Terminal 2 (N)
X4 -24V
X4 -24V
X4 +24V
X4 -24V
X4 +24V
X4 +24V
46
Connection 3
PE
PE
X4 -24V
