Installing the device
5.5 Connection of the suction and pressure line
CAUTION!
Ensure that the required seal is achieved by mounting O-rings on the
connections (Pos. 4) when connecting the suction and pressure line.

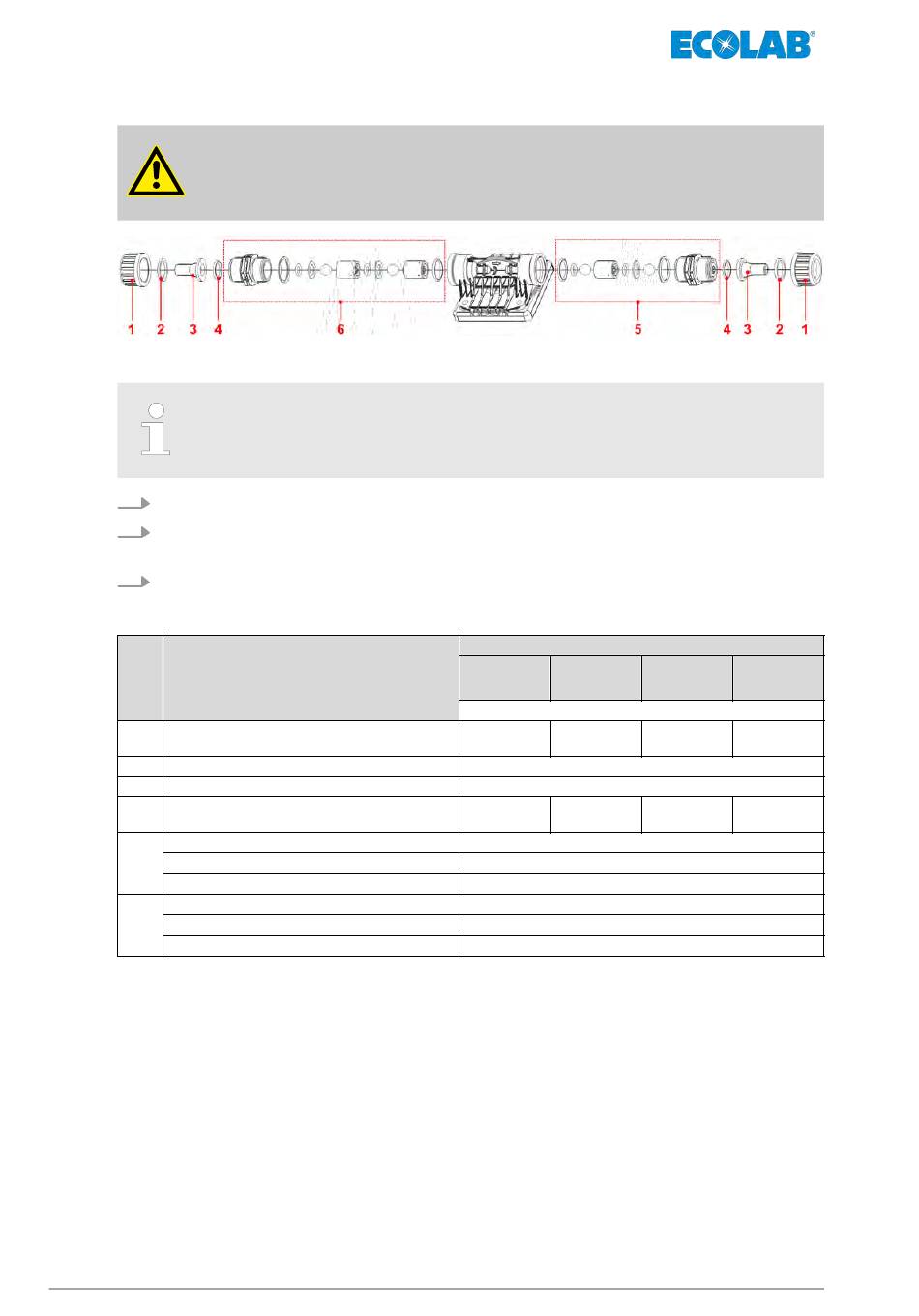

Fig. 6: Suction and discharge line connection
View Fig. 6 rotated 90 degrees to the right for space reasons.
1. Cut hose straight.
2. Push union nut (Pos. 1) and tensioning piece (Pos. 2) over hose and insert hose up
to the stop collar on the tapered part (Pos. 3).
3. Lay O-ring (Pos. 4) in the valve groove and tighten union nut.
Pos. Designation
1 Union nut
2 Tensioning piece
3 Tapered part
4 Precision O-ring (Ø 12 x 2.5 mm)
PVDF-valve witht FPM-seal
5 Suction valve complete:
PP-valve witht EPDM-seal
PVDF-valve with FPM-seal
6 PP-valve with EPDM-seal
PVDF-valve with FPM-seal
417101113 Rev. 9-08.2019
type of pump
1070 107010
107002 107012
article no. (EBS no.)
34500228 34500134
(10004842) (10002557)
38610409 (10002162)
38610417 (10004826)
417001102 417008334
(10002916) (10016867)
249493 (10001658)
249494 (10099740)
249473 (10001659)
249474 (10005334)
26
107020 107030
34500228 107030
(10004842) 34500134
417001102 417008334
(10002916) (10016867)
