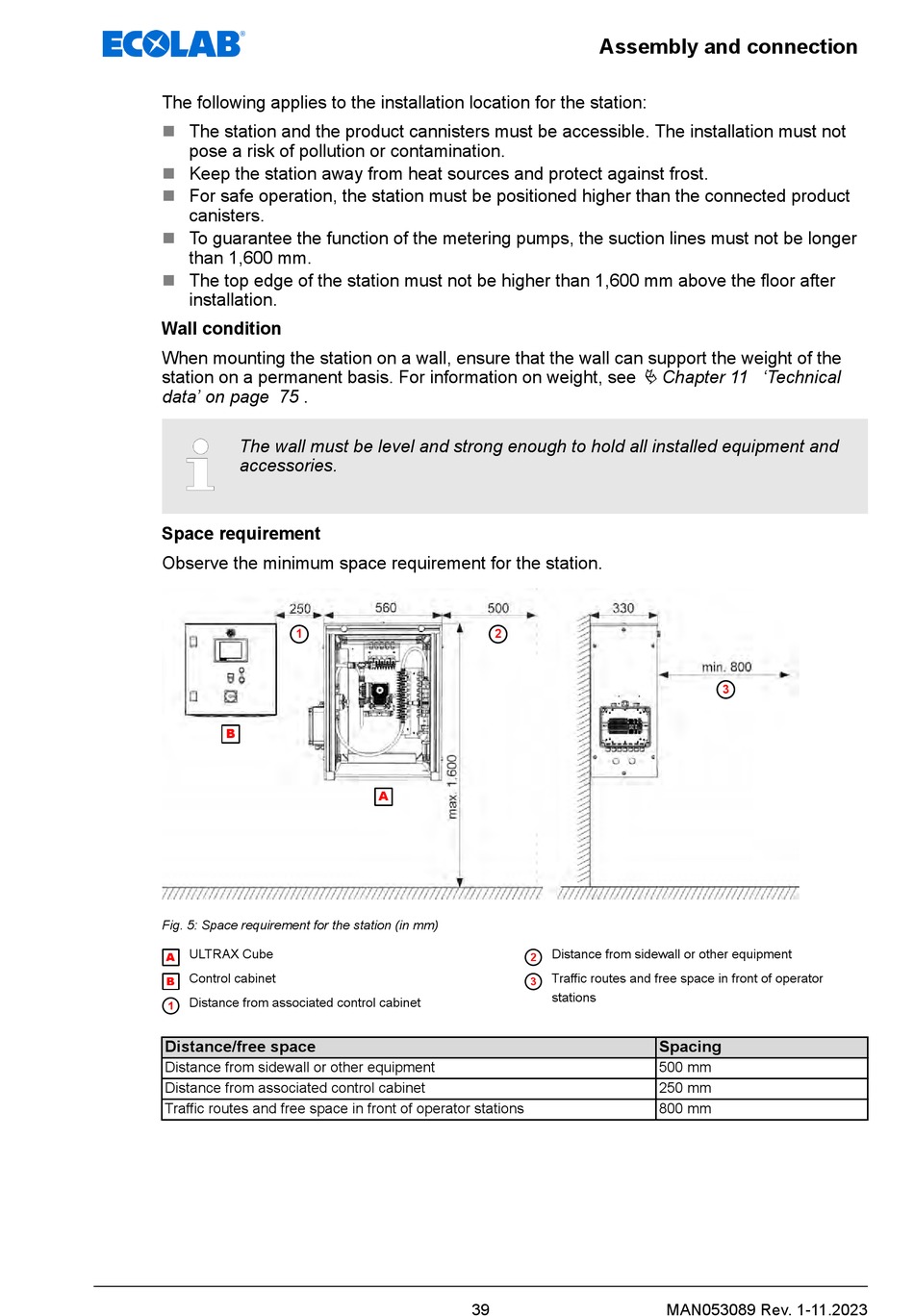

The following applies to the installation location for the station:
n
The station and the product cannisters must be accessible. The installation must not
pose a risk of pollution or contamination.
n
Keep the station away from heat sources and protect against frost.
n
For safe operation, the station must be positioned higher than the connected product
canisters.
n
To guarantee the function of the metering pumps, the suction lines must not be longer
than 1,600 mm.
n
The top edge of the station must not be higher than 1,600 mm above the floor after
installation.
Wall condition
When mounting the station on a wall, ensure that the wall can support the weight of the
station on a permanent basis. For information on weight, see
data' on page 75 .
The wall must be level and strong enough to hold all installed equipment and
accessories.
Space requirement
Observe the minimum space requirement for the station.
1
B
Fig. 5: Space requirement for the station (in mm)
ULTRAX Cube
A
Control cabinet
B
Distance from associated control cabinet
1
Distance/free space
Distance from sidewall or other equipment
Distance from associated control cabinet
Traffic routes and free space in front of operator stations
2
A
Distance from sidewall or other equipment
2
Traffic routes and free space in front of operator
3
stations
39
Assembly and connection
Ä Chapter 11 'Technical
3
Spacing
500 mm
250 mm
800 mm
MAN053089 Rev. 1-11.2023
