Installing the device
5
Installing the device
Personnel:
CAUTION!
The installation is only to be undertaken by approved experts and general
guidelines and local installation regulations should be observed!
NOTICE!
Material damage by using incorrect tools!
Material damage may arise by using incorrect tools during assembly,
maintenance or troubleshooting. Only use the correct tools.
5.1
Structure

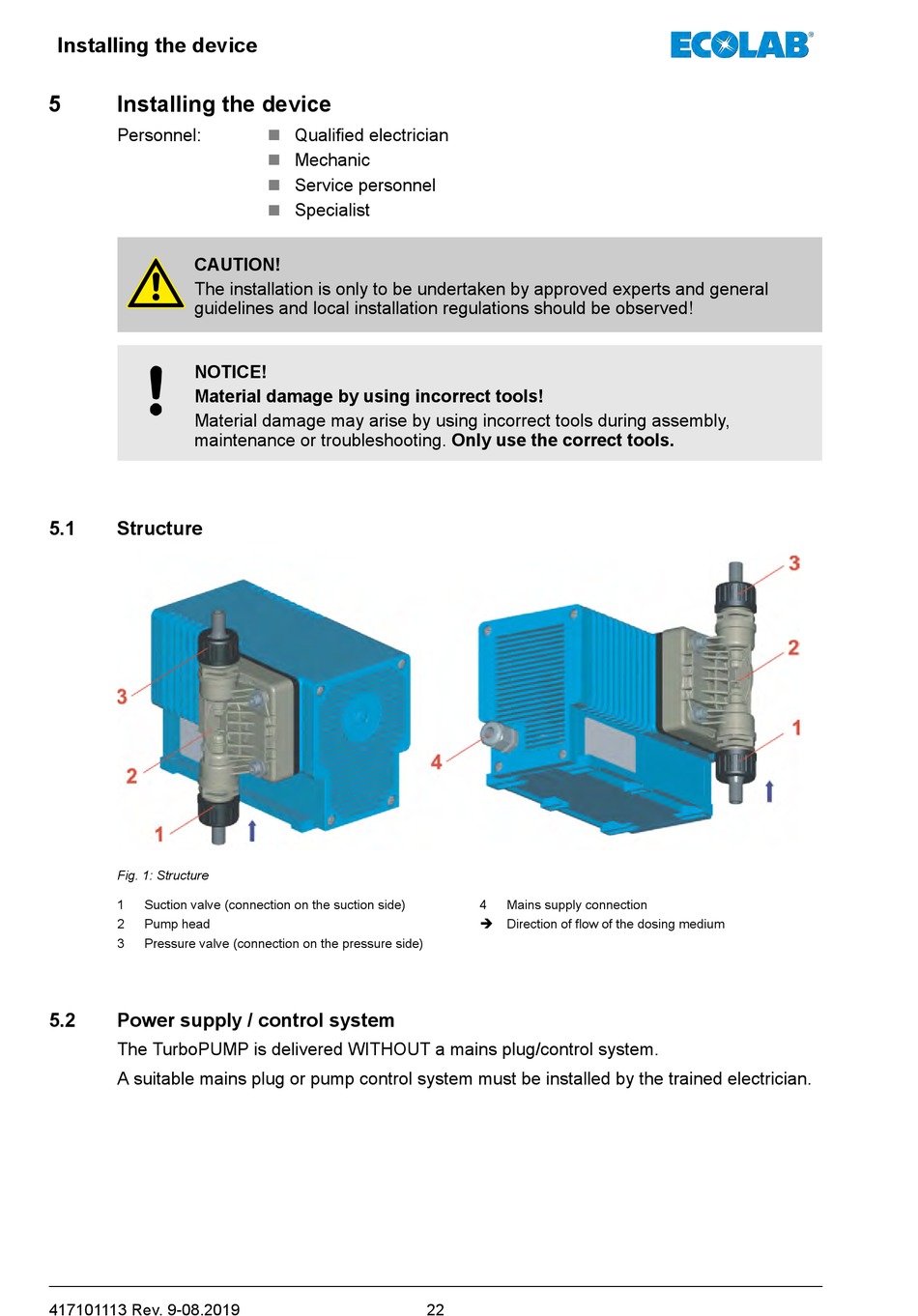

Fig. 1: Structure
1
Suction valve (connection on the suction side)
2
Pump head
3
Pressure valve (connection on the pressure side)
5.2
Power supply / control system
The TurboPUMP is delivered WITHOUT a mains plug/control system.
A suitable mains plug or pump control system must be installed by the trained electrician.
417101113 Rev. 9-08.2019
n
Qualified electrician
n
Mechanic
n
Service personnel
n
Specialist
22
4
Mains supply connection
è
Direction of flow of the dosing medium
