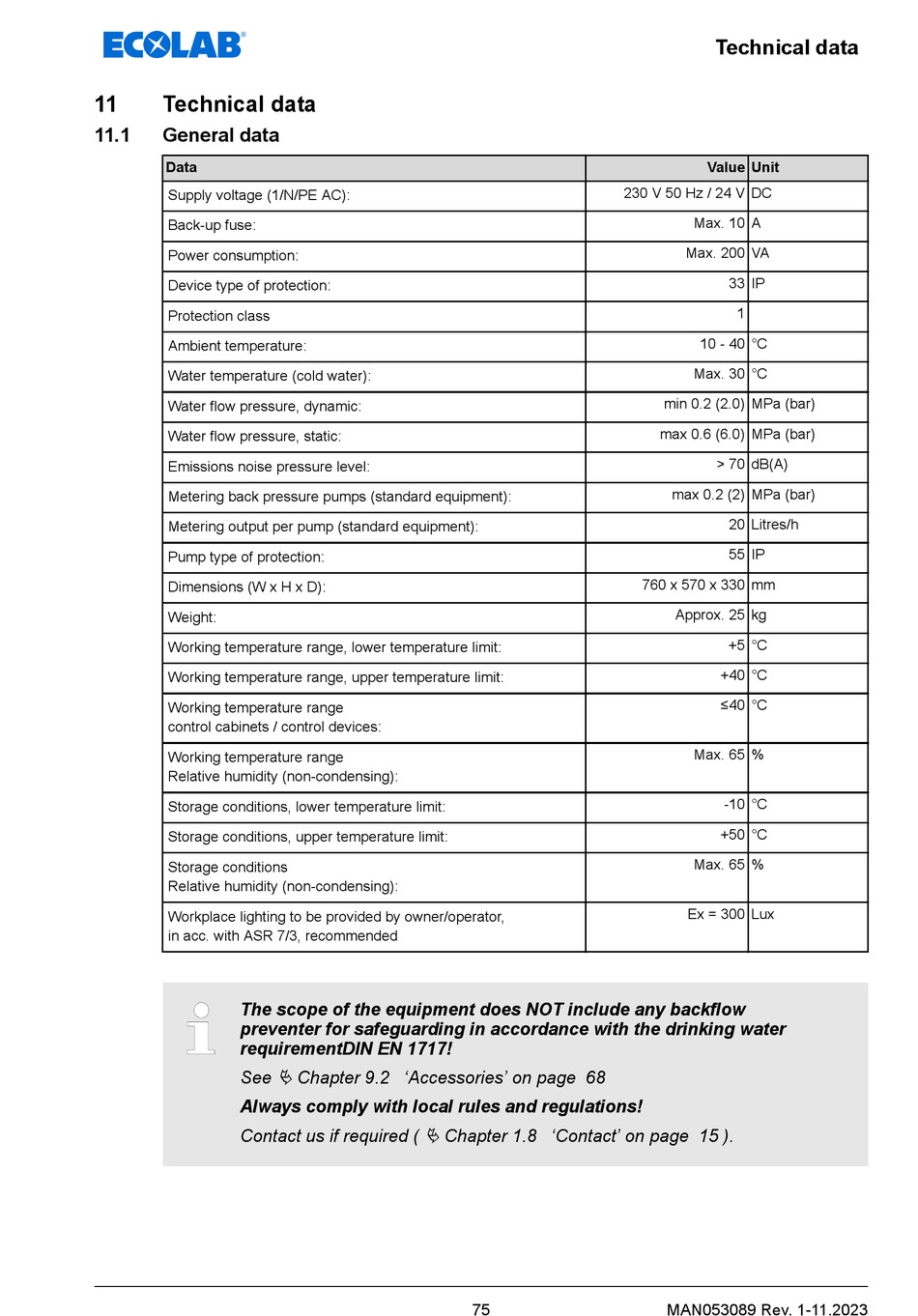

11 Technical data
11.1 General data
Data
Supply voltage (1/N/PE AC):
Back-up fuse:
Power consumption:
Device type of protection:
Protection class
Ambient temperature:
Water temperature (cold water):
Water flow pressure, dynamic:
Water flow pressure, static:
Emissions noise pressure level:
Metering back pressure pumps (standard equipment):
Metering output per pump (standard equipment):
Pump type of protection:
Dimensions (W x H x D):
Weight:
Working temperature range, lower temperature limit:
Working temperature range, upper temperature limit:
Working temperature range
control cabinets / control devices:
Working temperature range
Relative humidity (non-condensing):
Storage conditions, lower temperature limit:
Storage conditions, upper temperature limit:
Storage conditions
Relative humidity (non-condensing):
Workplace lighting to be provided by owner/operator,
in acc. with ASR 7/3, recommended
The scope of the equipment does NOT include any backflow
preventer for safeguarding in accordance with the drinking water
requirementDIN EN 1717!
See
Always comply with local rules and regulations!
Contact us if required (
Ä Chapter 9.2 'Accessories' on page 68
Ä Chapter 1.8 'Contact' on page 15 ).
230 V 50 Hz / 24 V DC
760 x 570 x 330 mm
75
Technical data
Value Unit
Max. 10 A
Max. 200 VA
33 IP
1
10 - 40 °C
Max. 30 °C
min 0.2 (2.0) MPa (bar)
max 0.6 (6.0) MPa (bar)
> 70 dB(A)
max 0.2 (2) MPa (bar)
20 Litres/h
55 IP
Approx. 25 kg
+5 °C
+40 °C
≤40 °C
Max. 65 %
-10 °C
+50 °C
Max. 65 %
Ex = 300 Lux
