5.5 Electrical installation
5.5.1 Emergency stop button (optional)
If the ULTRAX Cube cannot be installed in the immediate vicinity of the control cabinet,
an emergency stop button must be installed on the metering unit or on the wall in its
immediate vicinity for safety reasons.

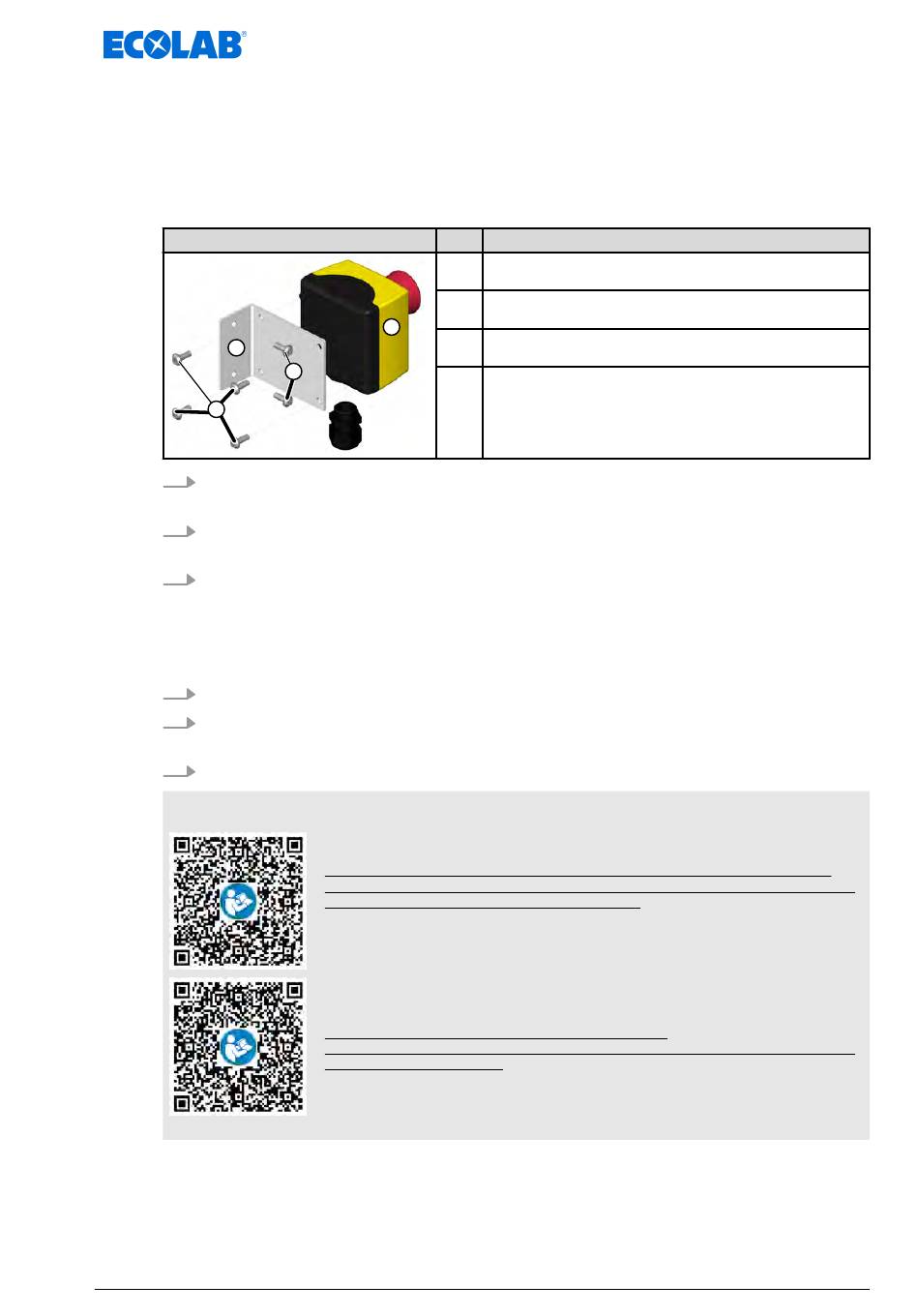

Illustration
3
2
1. Install the mounting bracket on the emergency stop switch using the provided
screws.
2. Install the emergency stop button with mounting bracket on the outside wall of the
metering station.
3. Connect the emergency stop button to the controller according to the circuit diagram.
5.5.2 Terminal assignment
1. Mount the optional terminal box on or in the immediate vicinity of the ULTRAX Cube.
2. Connect the components of the ULTRAX Cube to the terminal box in accordance
with the example shown below.
3. Connect the terminal box to the controller according to the circuit diagram.
Download of operating instructions for the control units:
Item Description
1
2
1
3
4
4
Operating instructions for "ULTRAX CUBE control cabinet" (MAN053291):
https://www.ecolab-engineering.de/fileadmin/download/bedienungsanleitungen/tcd/
MAN053291_Schaltschrank_ULTRAX_CUBE.pdf
To download the operating instructions using a tablet or smartphone, scan the QR
code provided on the left.
"MyControl" operating instructions (MAN047121):
https://www.ecolab-engineering.de/fileadmin/download/bedienungsanleitungen/tcd/
417101971_My_Control.pdf
Assembly and connection
Emergency stop switch
Article no.: 201546, EBS no.: 10026016
Screws (4 x)
Article no.: On request, EBS No.: On request
Mounting bracket for emergency stop switch
Article no.: On request, EBS No.: On request
Screws 2x
Article no.: On request, EBS No.: On request
