5.4.2
Connecting the product lines
CAUTION!
Hoses with EVA specification in the dimensions 10/16 are to be used on the
"2/2-way valve distributor block - product side".
1.
Loosen the clamping screws of the corresponding strain relief screw fittings
2.
Guide the hoses of the product suction lances through the strain relief screw fittings.
3.
Connect the hoses to the corresponding hose nipples
supplied.
4.
Tighten the clamp bolts of the strain relief screw fittings.
The following product assignments apply:

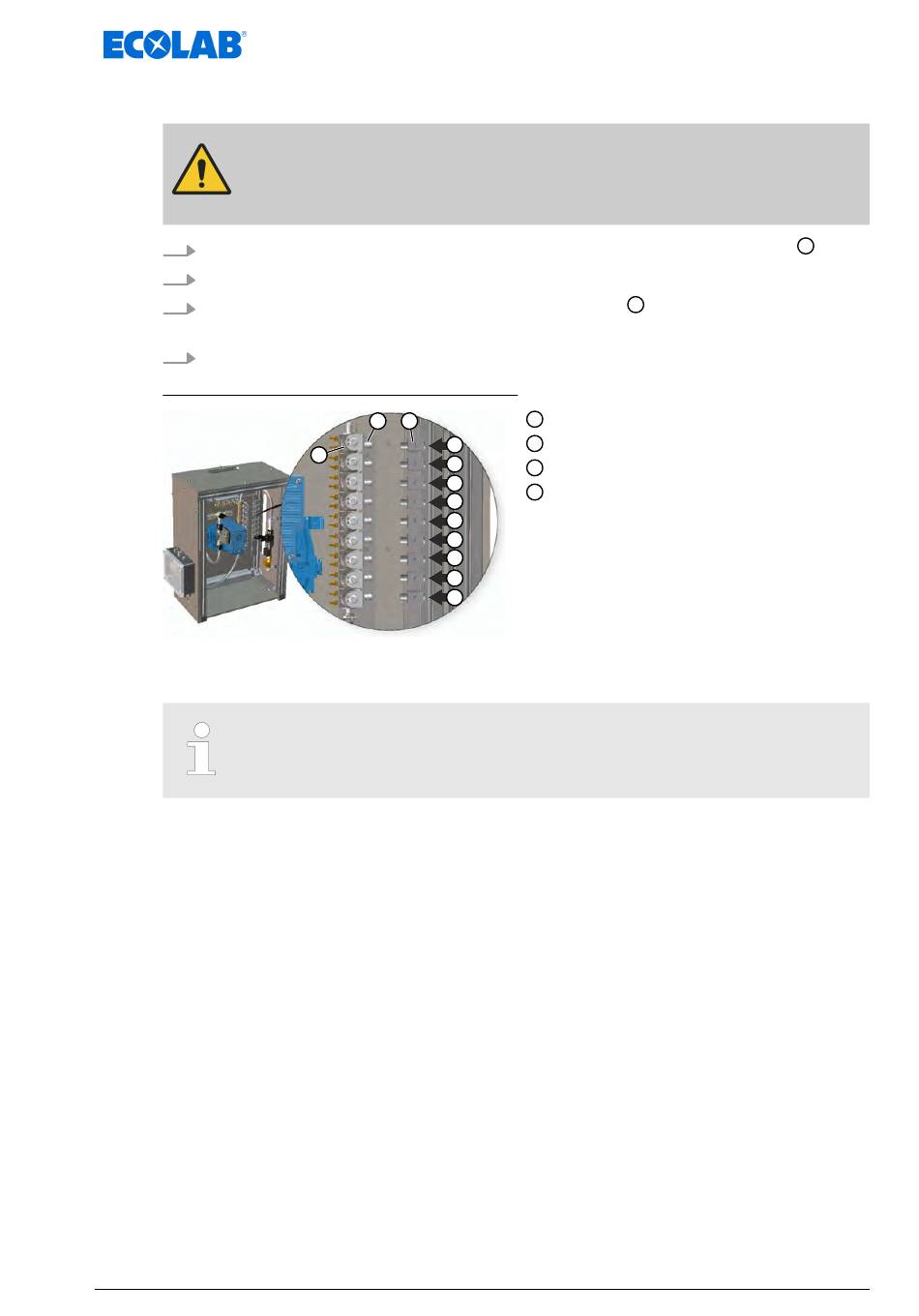

Fig. 9: 2/2-way solenoid valve distributor block - product
side
The 9-way block with the 2/2-way solenoid valves can optionally be upgraded
with 3 additional valves (products 10–12).
B
A
1
C
2
3
4
5
6
7
8
9
43
Assembly and connection
using the hose clamps
B
Strain relief screw fitting
A
Hose nipple
B
2/2-way solenoid valve
C
Product assignment (product 1)
1
MAN053089 Rev. 1-11.2023
.
