Upgrading the 2/2-way solenoid valve distributor block

The ULTRAX Cube can meter up to 9 products as standard. If required, the product-side
2/2-way solenoid valve distributor block can be extended by product valves P10–P12.
Requirements:
n The water supply is closed and protected against reactivation.
n The main switch on the control cabinet is switched to the "OFF" position and is
secured against being switched on again.

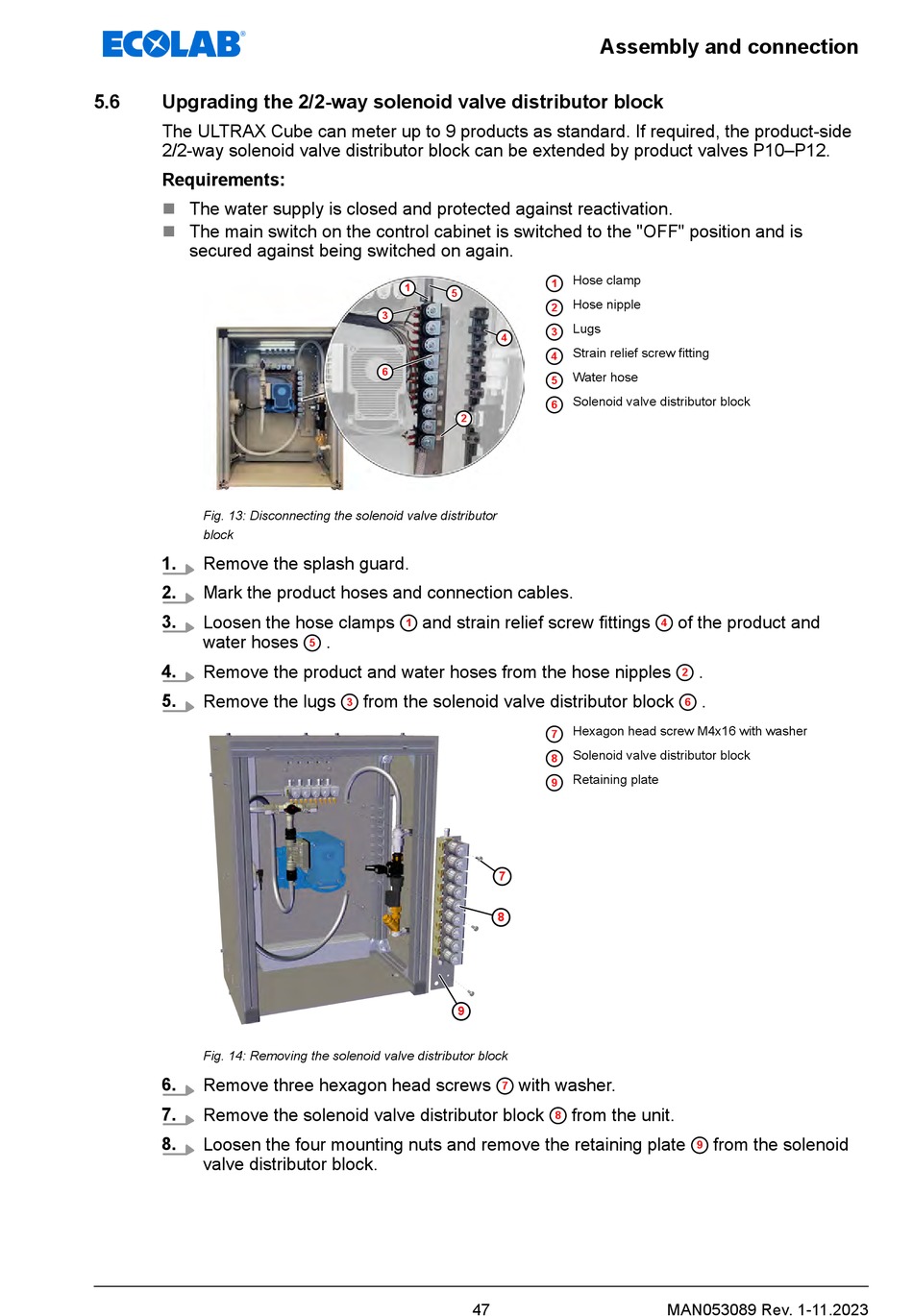

Fig. 13: Disconnecting the solenoid valve distributor
block
1. Remove the splash guard.
2. Mark the product hoses and connection cables.
3. Loosen the hose clamps
water hoses
4.
Remove the product and water hoses from the hose nipples
5. Remove the lugs
Fig. 14: Removing the solenoid valve distributor block
6. Remove three hexagon head screws
7.
Remove the solenoid valve distributor block
8.
Loosen the four mounting nuts and remove the retaining plate
valve distributor block.
1
5
3
6
2
and strain relief screw fittings
1
.
5
from the solenoid valve distributor block
3
9
47
Assembly and connection
Hose clamp
1
Hose nipple
2
Lugs
3
4
Strain relief screw fitting
4
Water hose
5
Solenoid valve distributor block
6
4
Hexagon head screw M4x16 with washer
7
Solenoid valve distributor block
8
Retaining plate
9
7
8
with washer.
7
from the unit.
8
MAN053089 Rev. 1-11.2023
