Extending the Safety Program – Application Examples


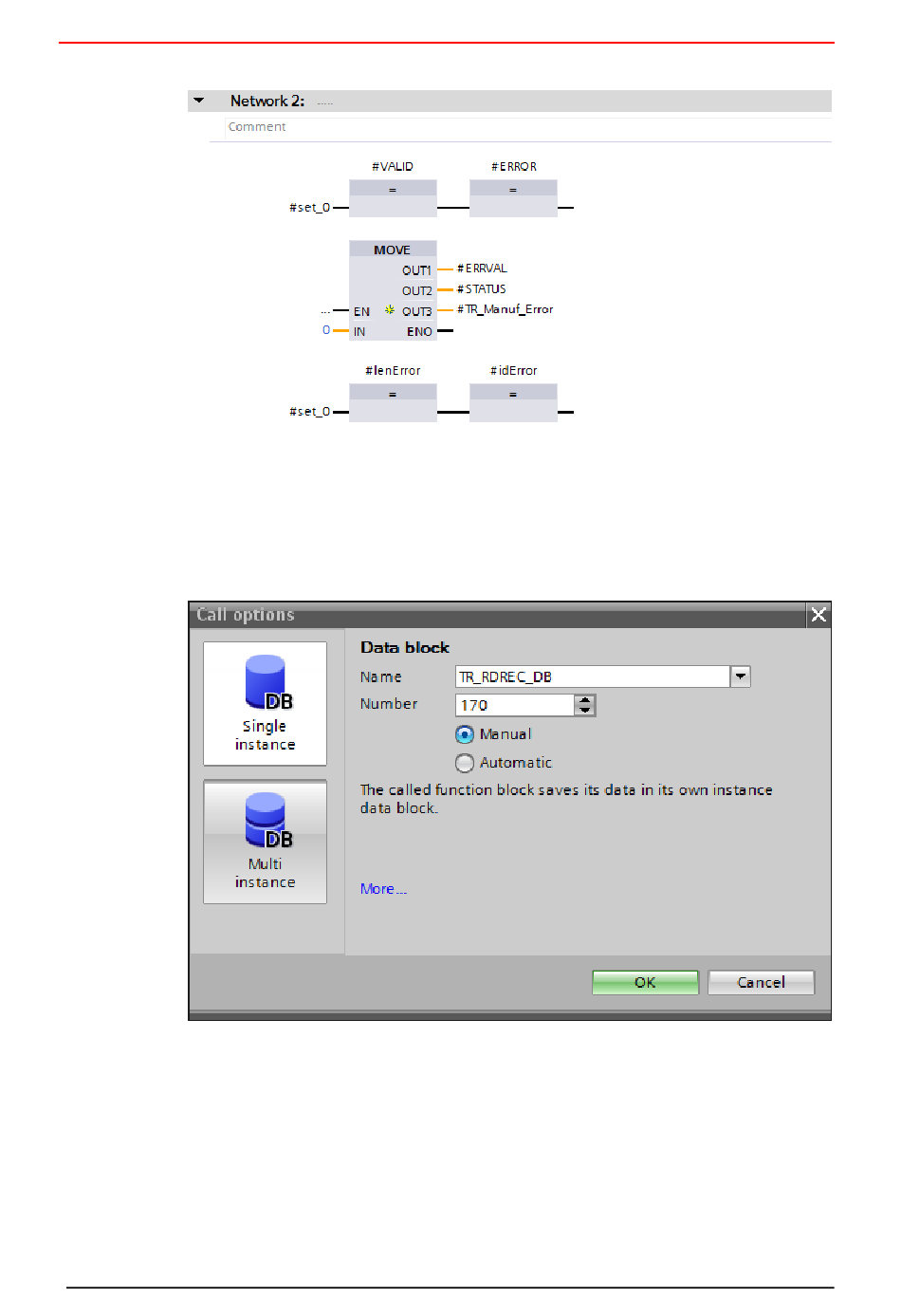

The RDREC block is called up in Network 3. An instance data block must be
created for this block. Select the Single instance on the left-hand side of the
opened window. In the example project, for Name: TR_RDREC_DB and for
Number: 170 must be manually entered. The data block is created by pressing
the OK button.
