Safety Program Creation - Configuration Example


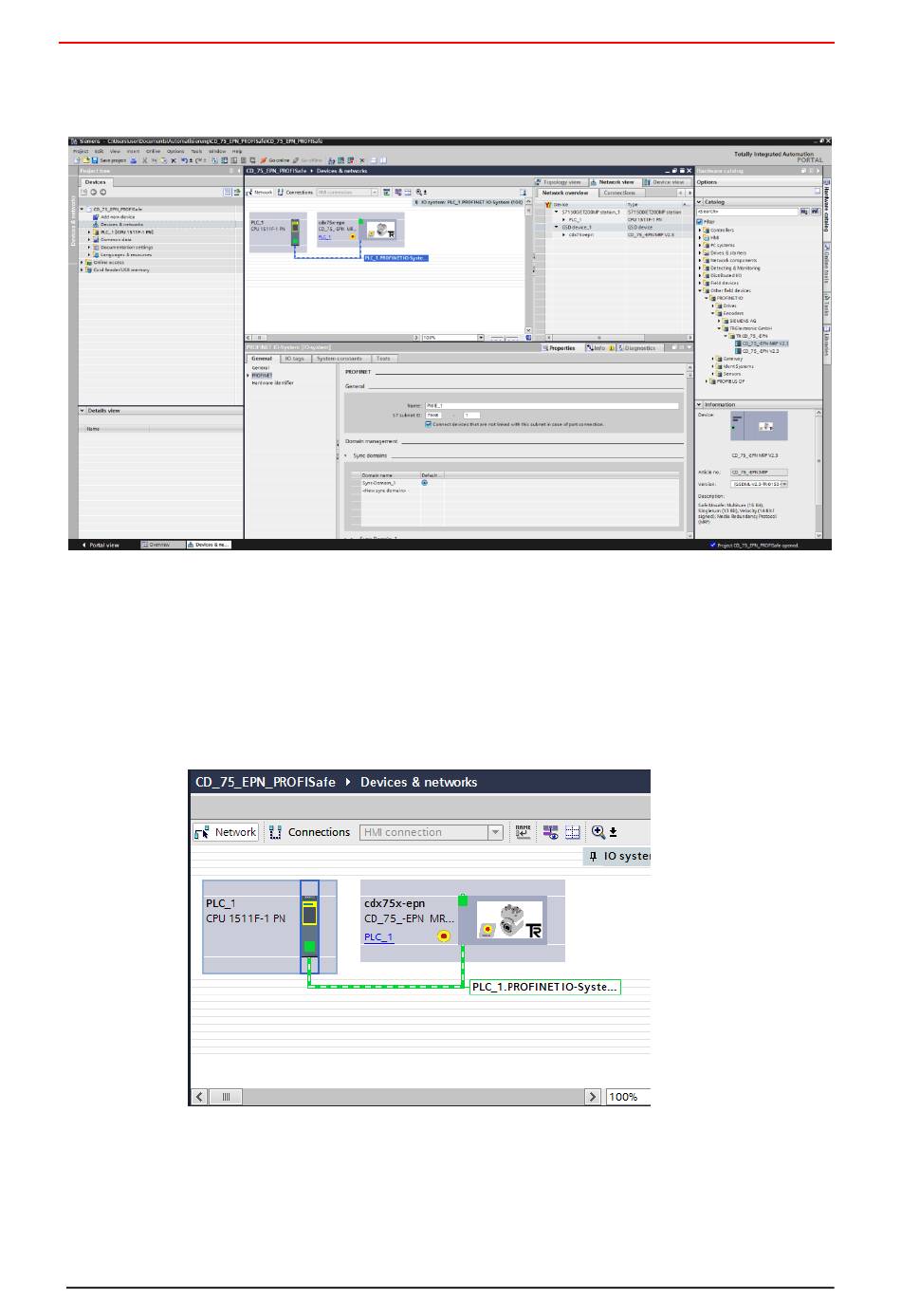

The measuring system is now connected to the controller.

4.2.1 Defining the properties of the hardware configuration

The object properties of the individual hardware components are defined by clicking
the leftmouse button on the relevant position in the network view.

To set the controller properties, the controller must be selected in the network
view. The selection is marked by a line.
