Extending the Safety Program – Application Examples

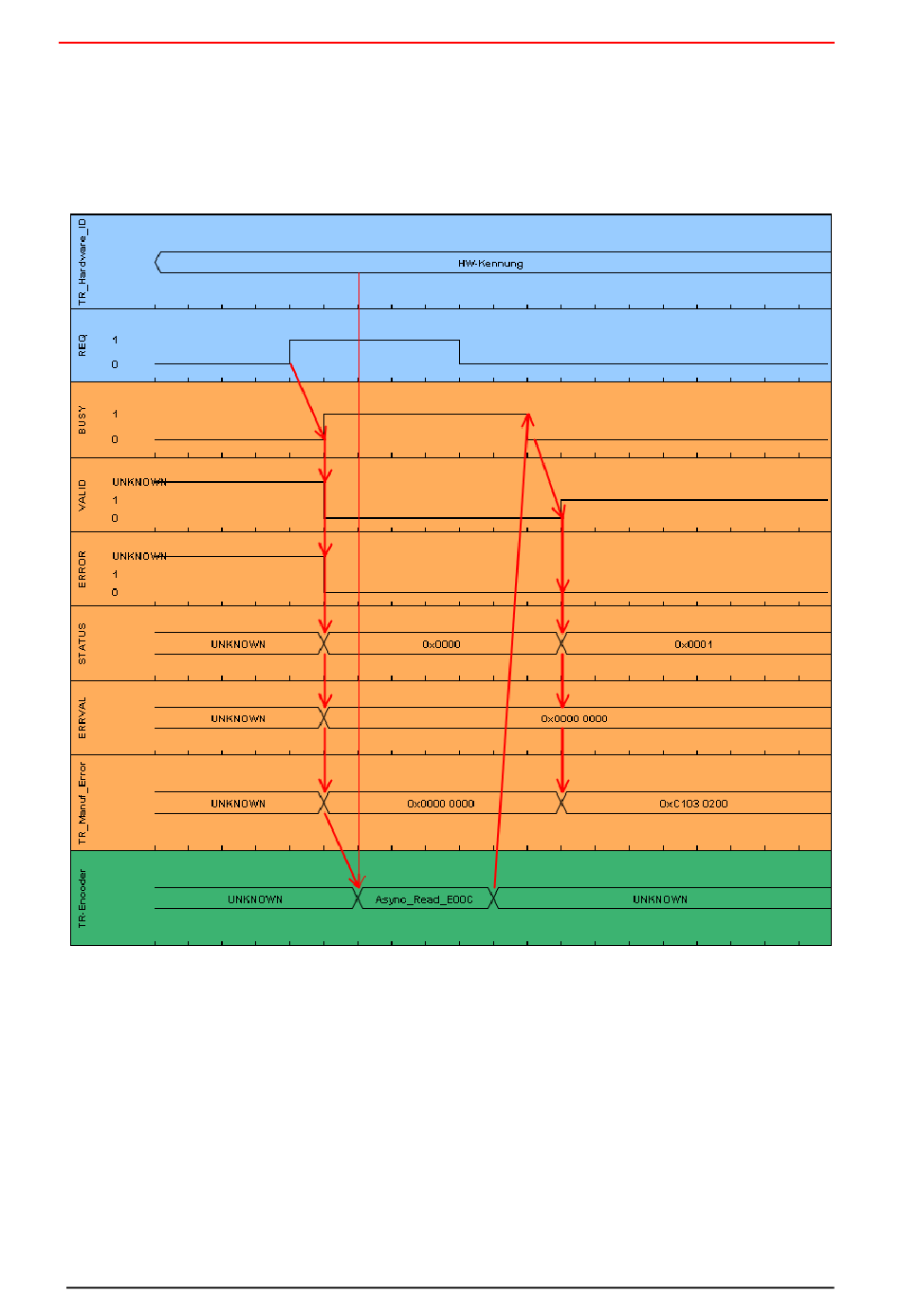

Timing diagram showing the manufacturer error block for manufacturer-specific error
0xC103 0200.
Blue area: input signals for manufacturer error block
Orange area: output signals for manufacturer error block
Green area: "TR encoder" measuring system function
