4.3.2 Setting the F-Parameters



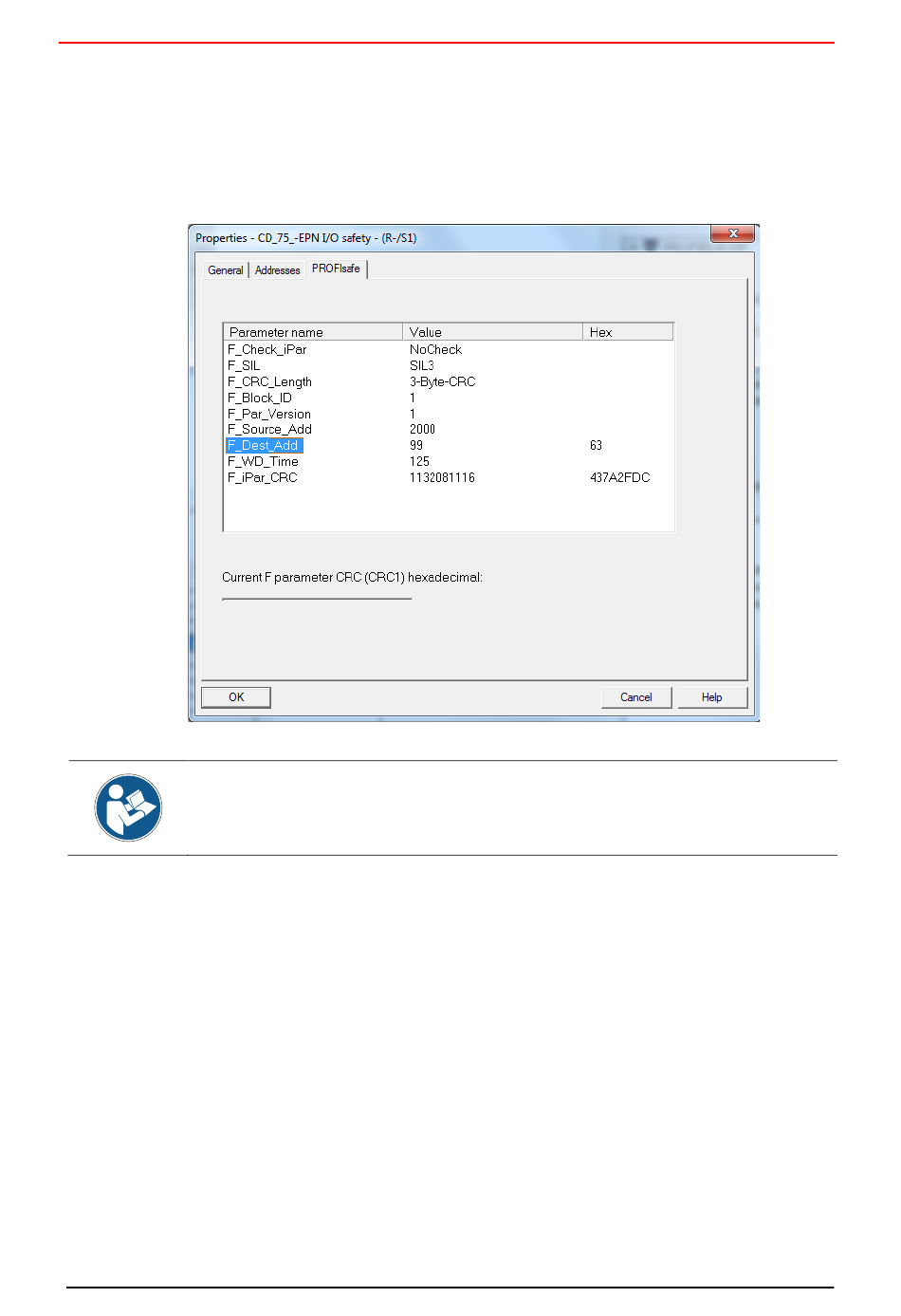

The F-Parameters can be set by selecting the Symbol for the measuring system
--> Double-click on the slot item CD_75_-EPN E/A safety --> Select the
PROFIsafe register.
The F_Dest_Add entry and the setting of the address switches of the measuring
system must be matching!
The parameter value for the parameter F_iPar_CRC results from the set parameter
data set for the iParameters and the calculated CRC value, see chapter "Setting the
iParameters" on page 65.

To enable automatic generation of the safety program, the hardware
configuration must now be compiled via the menu Station --> Save and
Compile.
