Safety Program Creation - Configuration Example


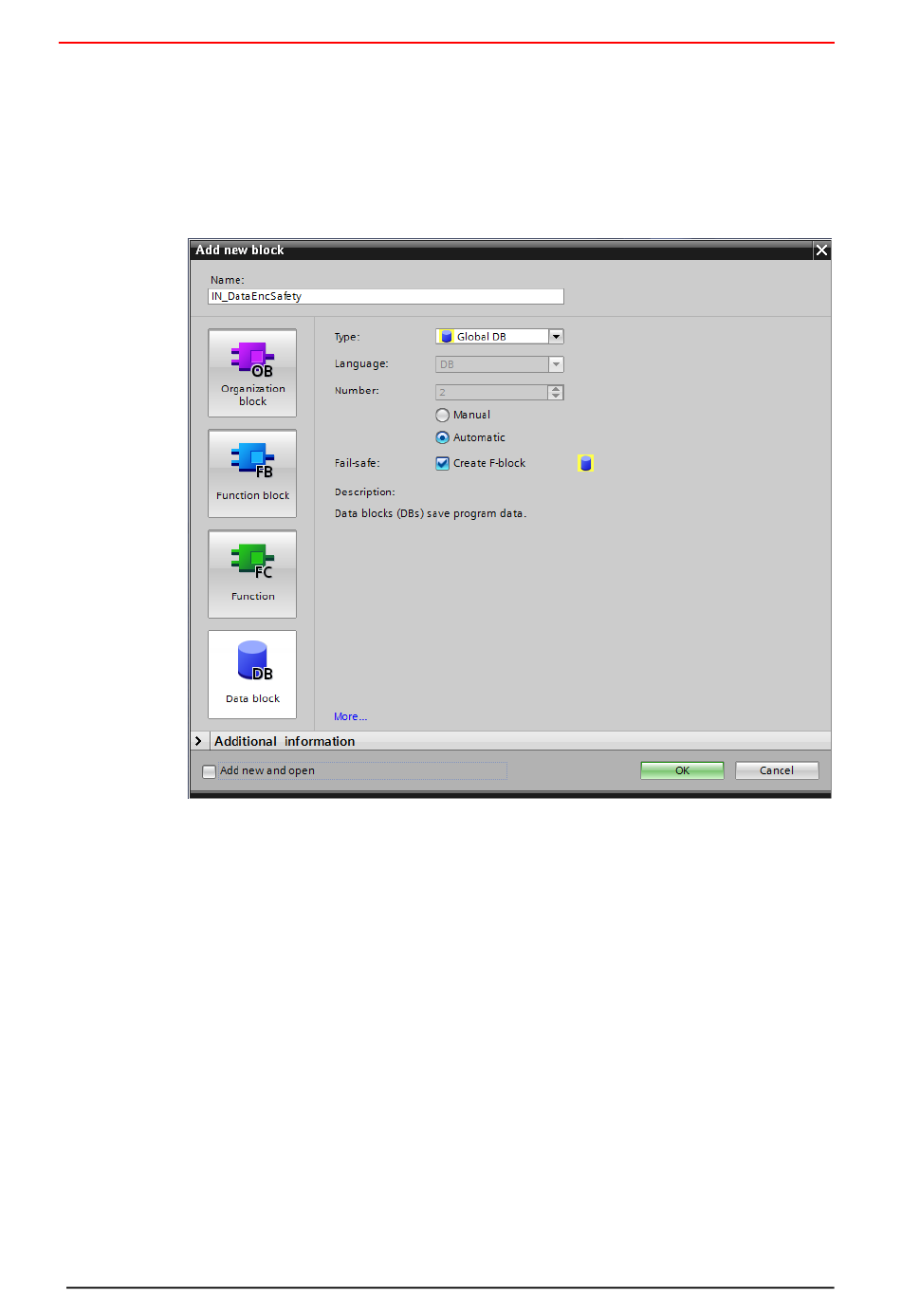

In the opened window select the data blocks on the left-hand side first of all. For
the type:
checkbox. Because the block will not be processed immediately after creation,
the Add new and open checkbox below Additional information must
be deselected. For name: IN_DataEncSafety is entered in the example
project. The data block is created by pressing the OK-button.

4.4.3 Generating the Organization blocks (OBs)

The required error organization blocks OB82, OB83, OB86 and OB122 are created
below.

To insert the organization blocks, go to Project tree and in the directory tree
select the entry CD_75_-EPN_PROFIsafe -> PLC_1 [CPU 1511F-1 PN] -
> Program blocks -> Add new block by double-clicking with the left
mouse button.
 TR-Electronic GmbH 2016, All Rights Reserved
Page 116 of 159
set Global-DB. For fail-safe:tick the Create
TR-ECE-TI-DGB-0292 v02
F-block
