As long as the TR_QBAD input has the value 1, the preset adjustment function is
not executed. The outputs BUSY, TR_IPAR_EN and TR_Pres_Single do not
change their value. The outputs VALID and ERROR change their value
depending on the REQ input.

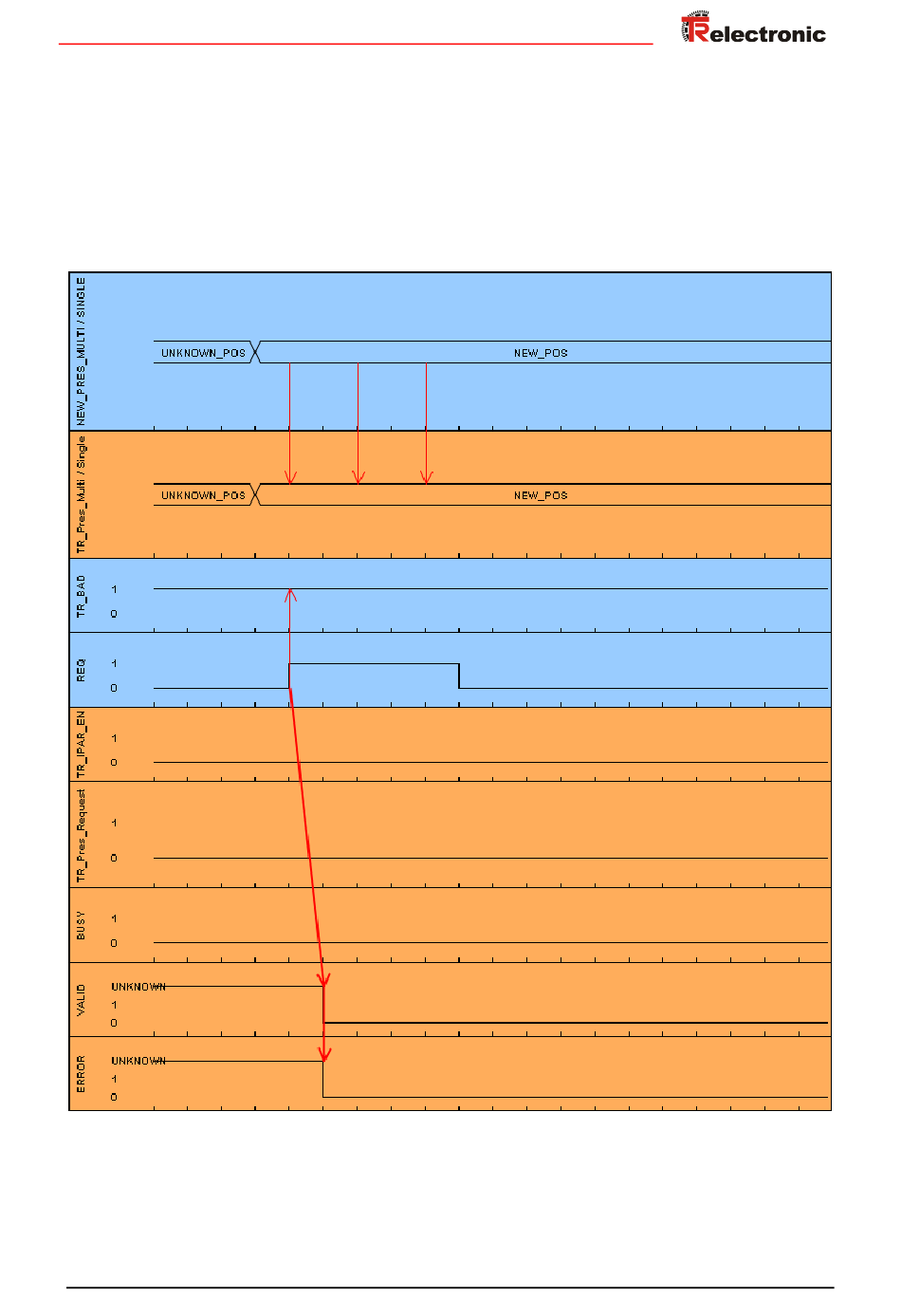

Timing diagram for preset adjustment function when TR_QBAD has the value 1.
Blue area: Input signals for preset block
Orange area: Output signals for preset block
