4.4.5 Programming the F-Blocks

The programming and modifications for blocks OB35, FC1 and FC2 are carried out
below.


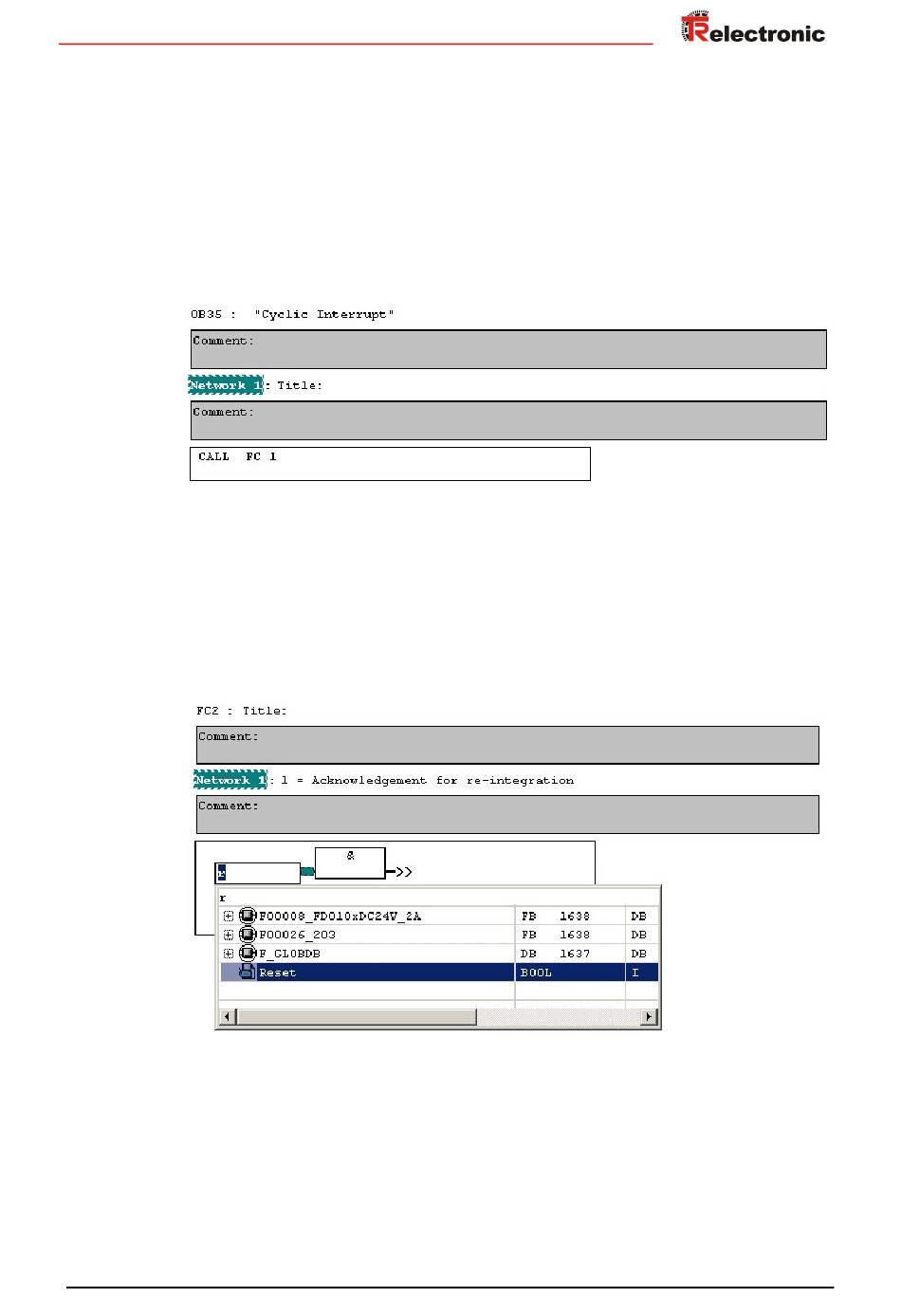

The safety program is called up in OB35 by double-clicking on the object name
OB35 in the project window. The instruction CALL FC1 must be entered in the
open LAD/STL/FBD program window. Finally save the item and close the
window again.
For the operator acknowledgment of the F-Periphery after the elimination of errors, the
variable ACK_REI of the F-Periphery-DB must be interconnected to the digital input I
16.0 RESET of the digital input module. The function FC2 must be programmed
accordingly for this purpose.

An And Box is inserted from the tool bar, one input is deleted and the Reset
symbol is assigned to the second input.
