Parameter Definition / CRC Calculation

3.2 F-Parameters

The F-Parameters are already preconfigured with meaningful values in the default
setting and should only be changed if expressly required by the automation task. A
CRC which is automatically calculated by the SIMATIC Manager is necessary for
safe transmission of the individually set F-Parameters. This checksum corresponds to

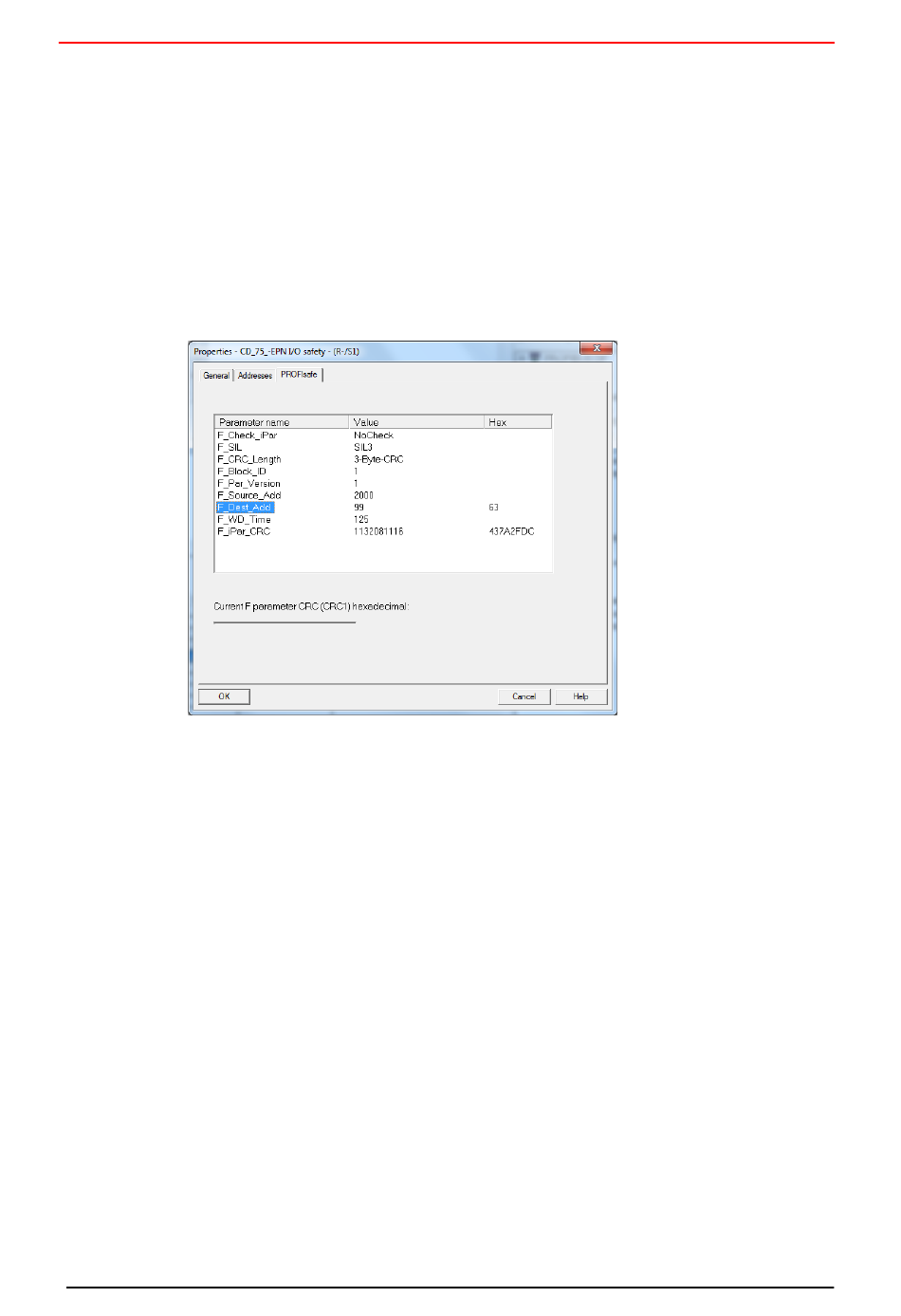

the F-Parameter F_Par_CRC, which is displayed as a hexadecimal value in the
Properties – CD_75_-EPN I/O safety window under the heading Current F
parameter CRC (CRC1) when configuring the measuring system with the hardware
configurator, also see chapter "Setting the F-Parameters" on page 66.

3.2.1 Non-settable F-Parameters

The F-Parameters specified below are either managed by the measuring system or by
the F-Host, and therefore cannot be manually changed:
● F_Check_iPar: NoCheck
● F_CRC_Length: 3-Byte-CRC
● F_Block_ID: 1
● F_Par_Version: V2-mode
● F_Source_Add: 2002 (example value, is predefined by the F-Host)

3.2.2 Settable F-Parameters

It is assumed that the following parameters are configured with their standard values:
● F_SIL: SIL3
● F_Dest_Add: 513 (address switches)
● F_WD_Time: 125
● F_iPar_CRC: 1132081116 (calculation by means of TR tool TR_iParameter)
Each parameter change gives a new F_Par_CRC value, which is displayed as shown
above. If a safety program is already present, it must be re-generated.
