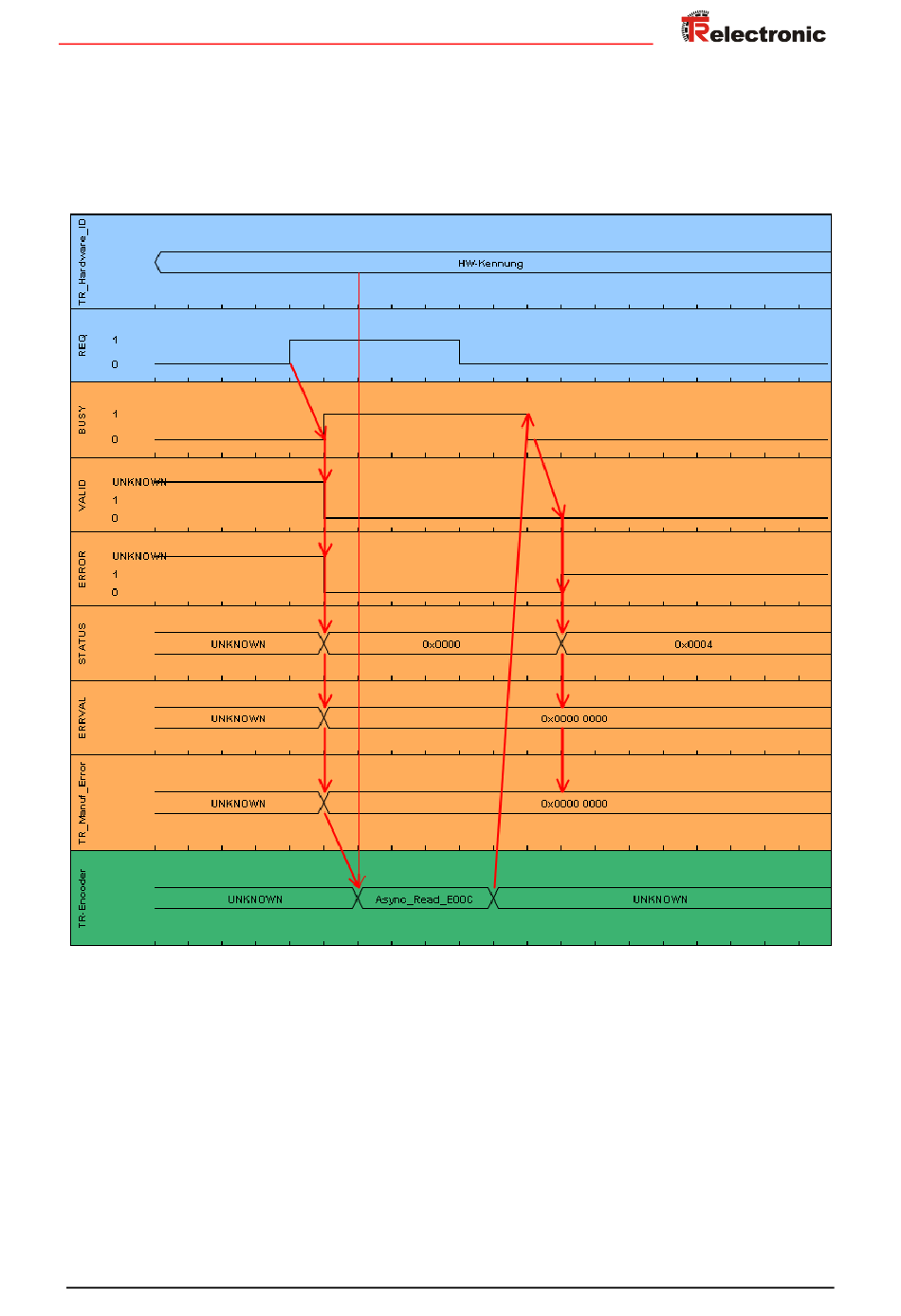

Timing diagram showing the manufacturer error block if an incorrect length of the
asynchronous read buffer is detected.
Blue area: input signals for manufacturer error block
Orange area: output signals for manufacturer error block
Green area: "TR encoder" measuring system function
