4.4.5 Programming the F-Blocks (save input data)

The programming and modification of the Main_Safety_RTG1 (FB1) block, for
saving the measuring system input data, are performed below.

PLC tags -> Default tag table

First of all the tags for "Position-Multiturn", "Position-Singleturn" and "Speed" are

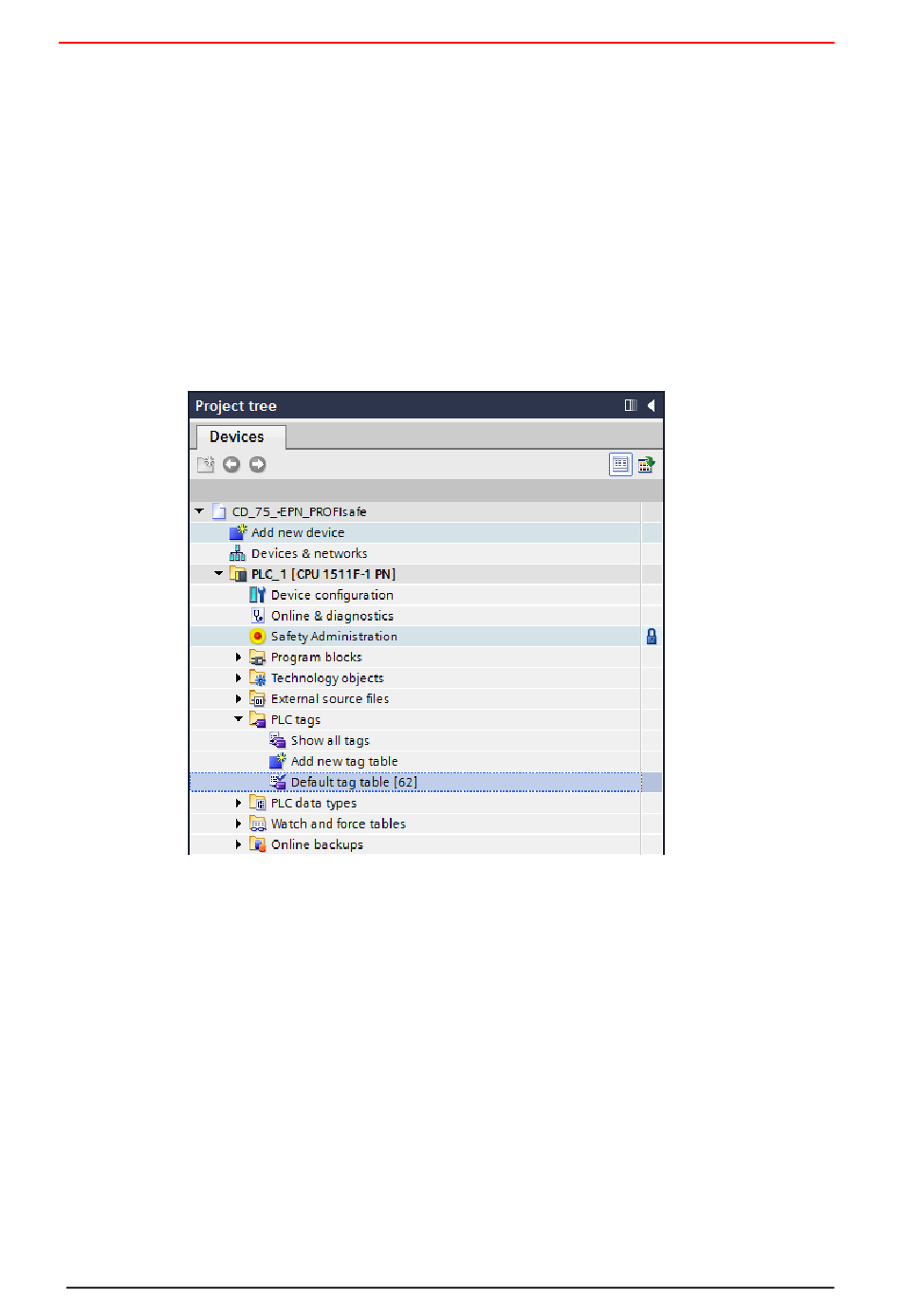

defined in a tag table. To do this, go to Project tree and in the directory tree
select the entry CD_75_-EPN_PROFIsafe -> PLC_1 [CPU 1511F-1 PN]
-> PLC tags -> Default tag table [62] by double-clicking with the left
mouse button. The tag editor opens in the work area.

The following tags are defined in the tag editor for the measuring system input
data:
 TR-Electronic GmbH 2016, All Rights Reserved
Page 120 of 159

Position-Multiturn:
Name: IN_Multi_Safety
Data type: Int
Address: %IW6

Position-Singleturn:
Name: IN_Single_Safety
Data type: Int
Address: %IW8

Speed:
Name: IN_Speed_Safety
Data type: Int
Address: %IW4
