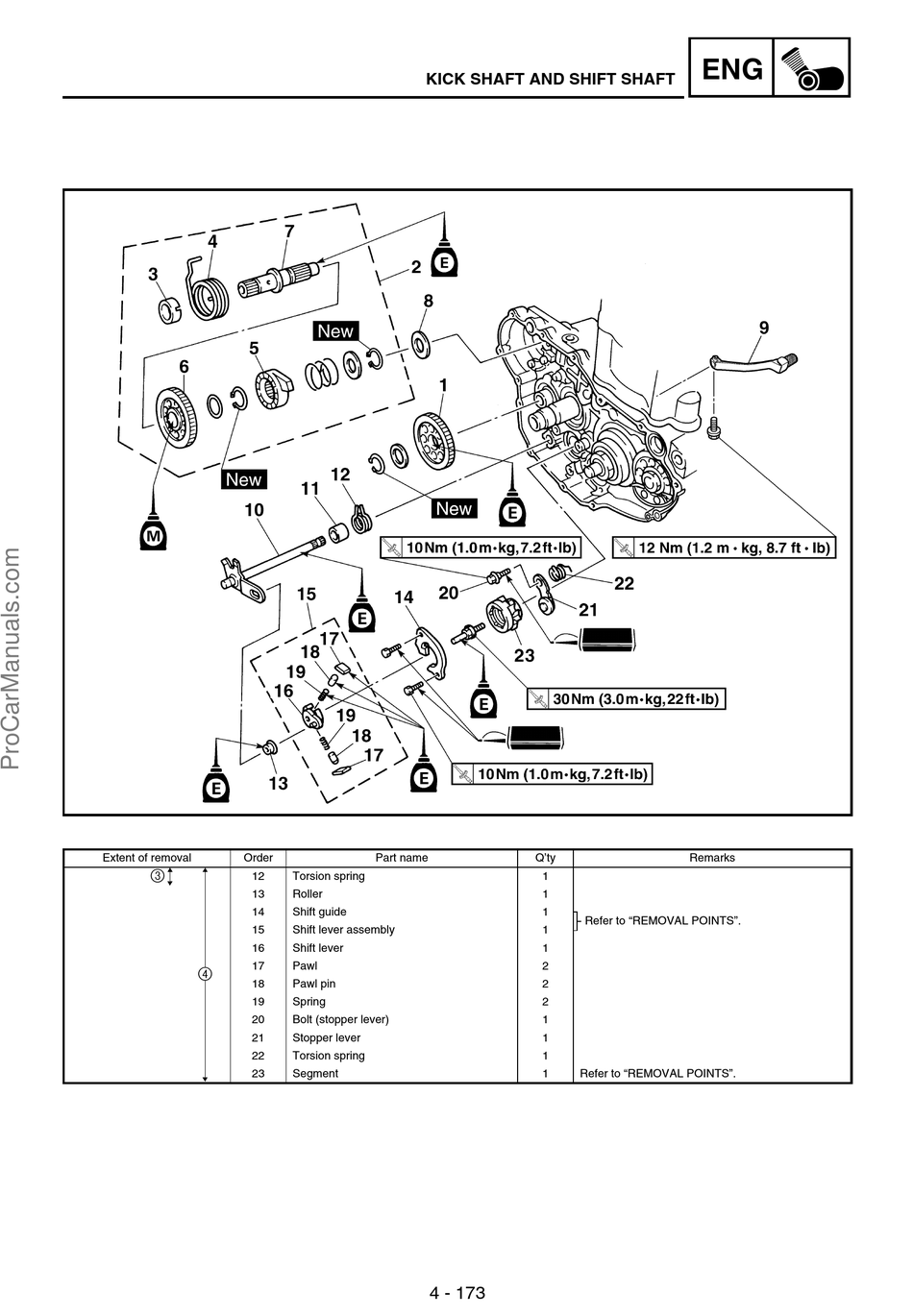

KICK SHAFT AND SHIFT SHAFT
Part name
Torsion spring
Roller
Shift guide
Shift lever assembly
Shift lever
Pawl
Pawl pin
Spring
Bolt (stopper lever)
Stopper lever
Torsion spring
Segment
4 - 173
ENG
Q'ty Remarks
1
1
1
Refer to "REMOVAL POINTS".
1
1
2
2
2
1
1
1
1 Refer to "REMOVAL POINTS".
