Maintenance and troubleshooting

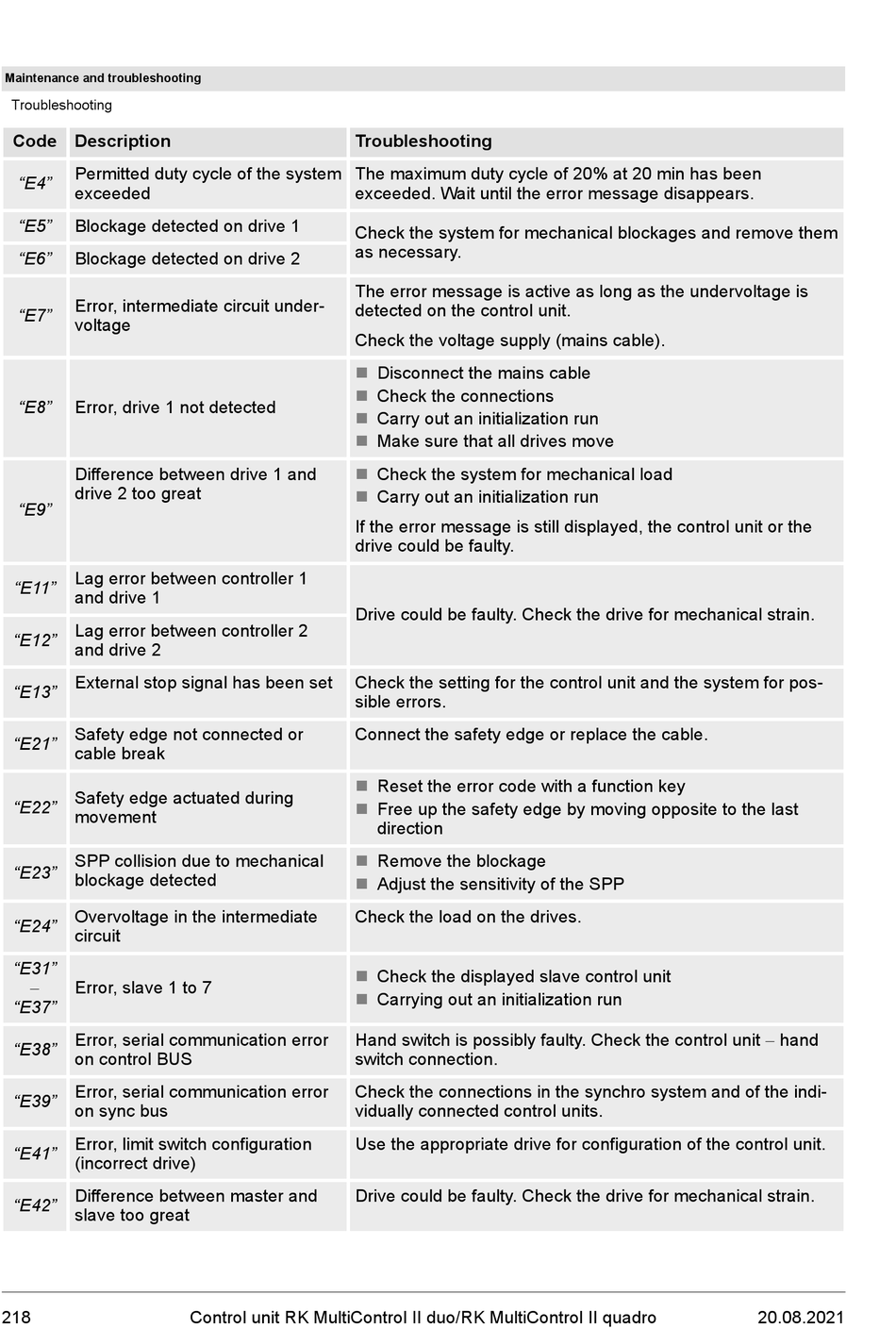

Troubleshooting
Code Description
Permitted duty cycle of the system
"E4"
exceeded
"E5" Blockage detected on drive 1
"E6" Blockage detected on drive 2
Error, intermediate circuit under-
"E7"
voltage
"E8" Error, drive 1 not detected
Difference between drive 1 and
drive 2 too great
"E9"
Lag error between controller 1
"E11"
and drive 1
Lag error between controller 2
"E12"
and drive 2
External stop signal has been set
"E13"
Safety edge not connected or
"E21"
cable break
Safety edge actuated during
"E22"
movement
SPP collision due to mechanical
"E23"
blockage detected
Overvoltage in the intermediate
"E24"
circuit
"E31"
-
Error, slave 1 to 7
"E37"
Error, serial communication error
"E38"
on control BUS
Error, serial communication error
"E39"
on sync bus
Error, limit switch configuration
"E41"
(incorrect drive)
Difference between master and
"E42"
slave too great
218
Troubleshooting
The maximum duty cycle of 20% at 20 min has been
exceeded. Wait until the error message disappears.
Check the system for mechanical blockages and remove them
as necessary.
The error message is active as long as the undervoltage is
detected on the control unit.
Check the voltage supply (mains cable).
n
n
n
n
n
n
If the error message is still displayed, the control unit or the
drive could be faulty.
Drive could be faulty. Check the drive for mechanical strain.
Check the setting for the control unit and the system for pos-
sible errors.
Connect the safety edge or replace the cable.
n
n
n
n
Check the load on the drives.
n
n
Hand switch is possibly faulty. Check the control unit - hand
switch connection.
Check the connections in the synchro system and of the indi-
vidually connected control units.
Use the appropriate drive for configuration of the control unit.
Drive could be faulty. Check the drive for mechanical strain.
Control unit RK MultiControl II duo/RK MultiControl II quadro
Disconnect the mains cable
Check the connections
Carry out an initialization run
Make sure that all drives move
Check the system for mechanical load
Carry out an initialization run
Reset the error code with a function key
Free up the safety edge by moving opposite to the last
direction
Remove the blockage
Adjust the sensitivity of the SPP
Check the displayed slave control unit
Carrying out an initialization run
