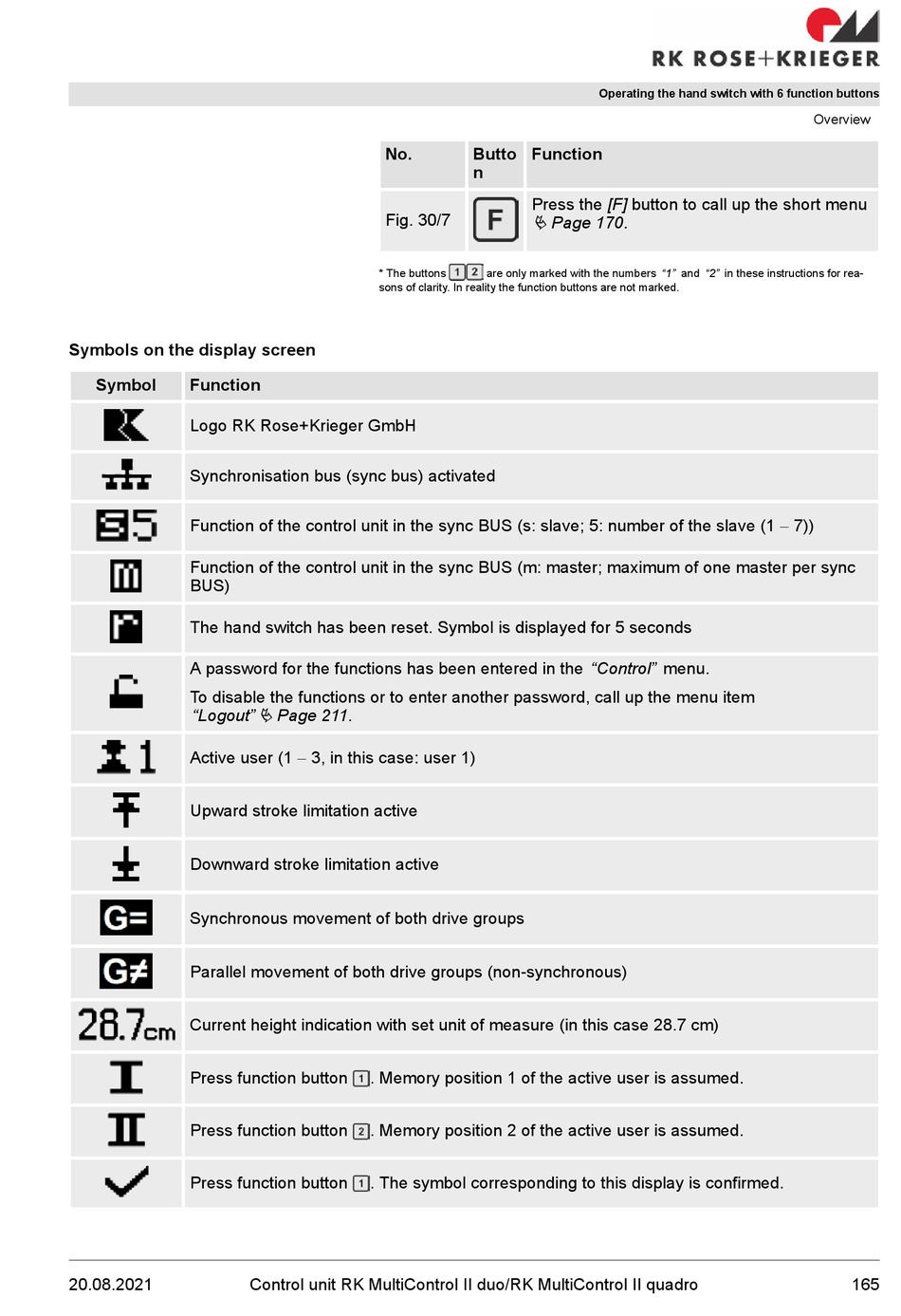

Symbols on the display screen
Symbol Function
Logo RK Rose+Krieger GmbH
Synchronisation bus (sync bus) activated
Function of the control unit in the sync BUS (s: slave; 5: number of the slave (1 - 7))
Function of the control unit in the sync BUS (m: master; maximum of one master per sync
BUS)
The hand switch has been reset. Symbol is displayed for 5 seconds
A password for the functions has been entered in the "Control" menu.
To disable the functions or to enter another password, call up the menu item
"Logout"
Active user (1 - 3, in this case: user 1)
Upward stroke limitation active
Downward stroke limitation active
Synchronous movement of both drive groups
Parallel movement of both drive groups (non-synchronous)
Current height indication with set unit of measure (in this case 28.7 cm)
Press function button
Press function button
Press function button
20.08.2021
No.
Fig. 30/7
* The buttons
sons of clarity. In reality the function buttons are not marked.
Ä Page 211.
. Memory position 1 of the active user is assumed.
. Memory position 2 of the active user is assumed.
. The symbol corresponding to this display is confirmed.
Control unit RK MultiControl II duo/RK MultiControl II quadro
Operating the hand switch with 6 function buttons
Butto Function
n
Press the [F] button to call up the short menu
Ä Page 170.
are only marked with the numbers "1" and "2" in these instructions for rea-
Overview
