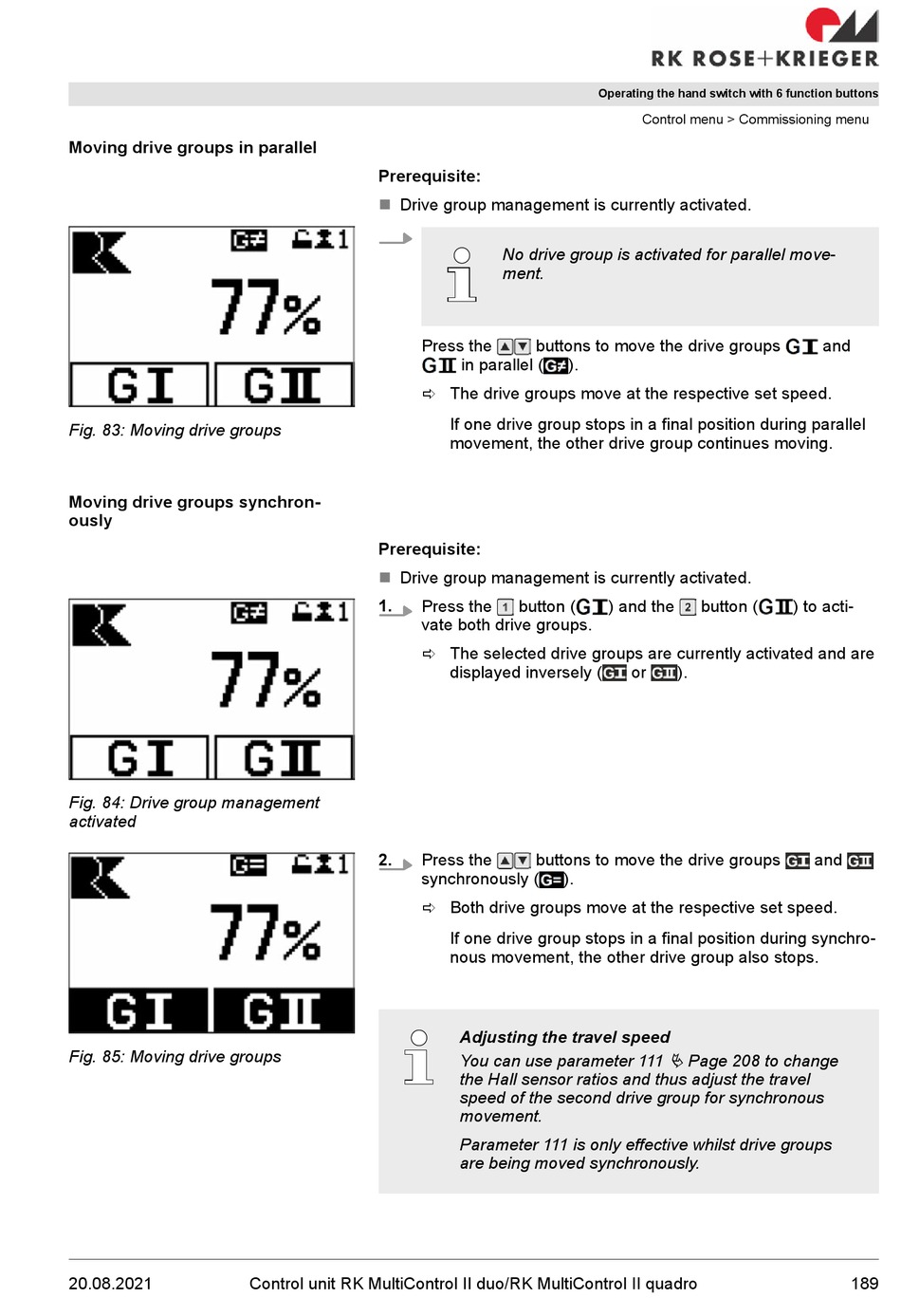

Moving drive groups in parallel
Fig. 83: Moving drive groups
Moving drive groups synchron-
ously
Fig. 84: Drive group management
activated
Fig. 85: Moving drive groups
20.08.2021
Prerequisite:
n Drive group management is currently activated.
Prerequisite:
n Drive group management is currently activated.
1.
2.
Control unit RK MultiControl II duo/RK MultiControl II quadro
No drive group is activated for parallel move-
ment.
Press the buttons to move the drive groups
in parallel ( ).
ð The drive groups move at the respective set speed.
If one drive group stops in a final position during parallel
movement, the other drive group continues moving.
Press the button (
vate both drive groups.
ð The selected drive groups are currently activated and are
displayed inversely (
Press the buttons to move the drive groups
synchronously ( ).
ð Both drive groups move at the respective set speed.
If one drive group stops in a final position during synchro-
nous movement, the other drive group also stops.
Adjusting the travel speed
You can use parameter 111
the Hall sensor ratios and thus adjust the travel
speed of the second drive group for synchronous
movement.
Parameter 111 is only effective whilst drive groups
are being moved synchronously.
Operating the hand switch with 6 function buttons
Control menu > Commissioning menu
) and the button (
or ).
Ä Page 208 to change
and
) to acti-
and
