Assembly
Connecting the accessories > Setting up the synchronisation bus

5.4.5 Setting up the synchronisation bus

Synchronisation bus
Connecting the synchronisation
bus
Connecting 2 control units
158
Personnel:
Protective equipment:
Prerequisite:
n The mains cable is disconnected from the voltage supply.

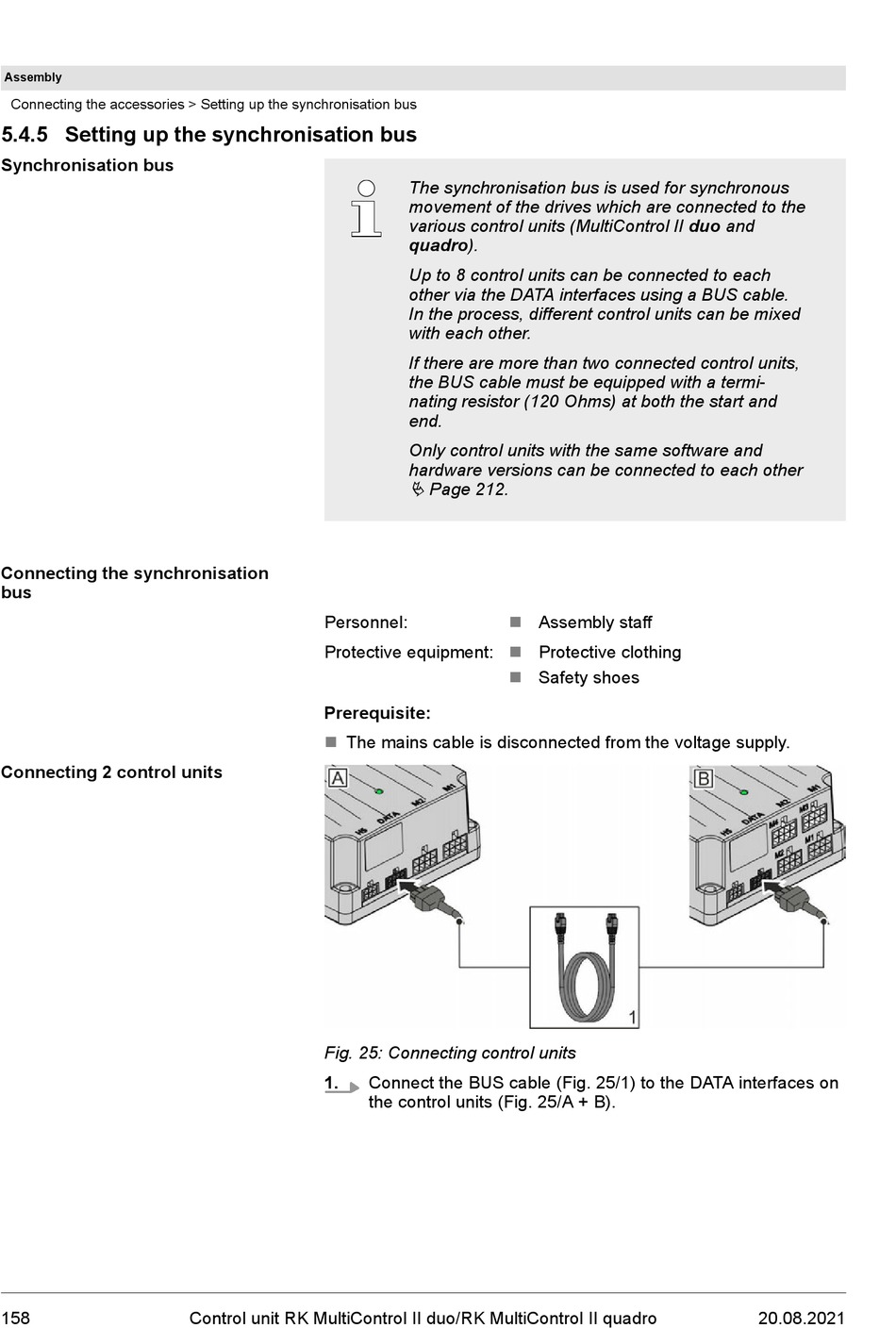

Fig. 25: Connecting control units
1.
Control unit RK MultiControl II duo/RK MultiControl II quadro
The synchronisation bus is used for synchronous
movement of the drives which are connected to the
various control units (MultiControl II duo and
quadro).
Up to 8 control units can be connected to each
other via the DATA interfaces using a BUS cable.
In the process, different control units can be mixed
with each other.
If there are more than two connected control units,
the BUS cable must be equipped with a termi-
nating resistor (120 Ohms) at both the start and
end.
Only control units with the same software and
hardware versions can be connected to each other
Ä Page 212.
n Assembly staff
Protective clothing
n
n Safety shoes
Connect the BUS cable (Fig. 25/1) to the DATA interfaces on
the control units (Fig. 25/A + B).
20.08.2021
