Set-up and function
Connections > Drive slot - MultiControl II duo/quadro

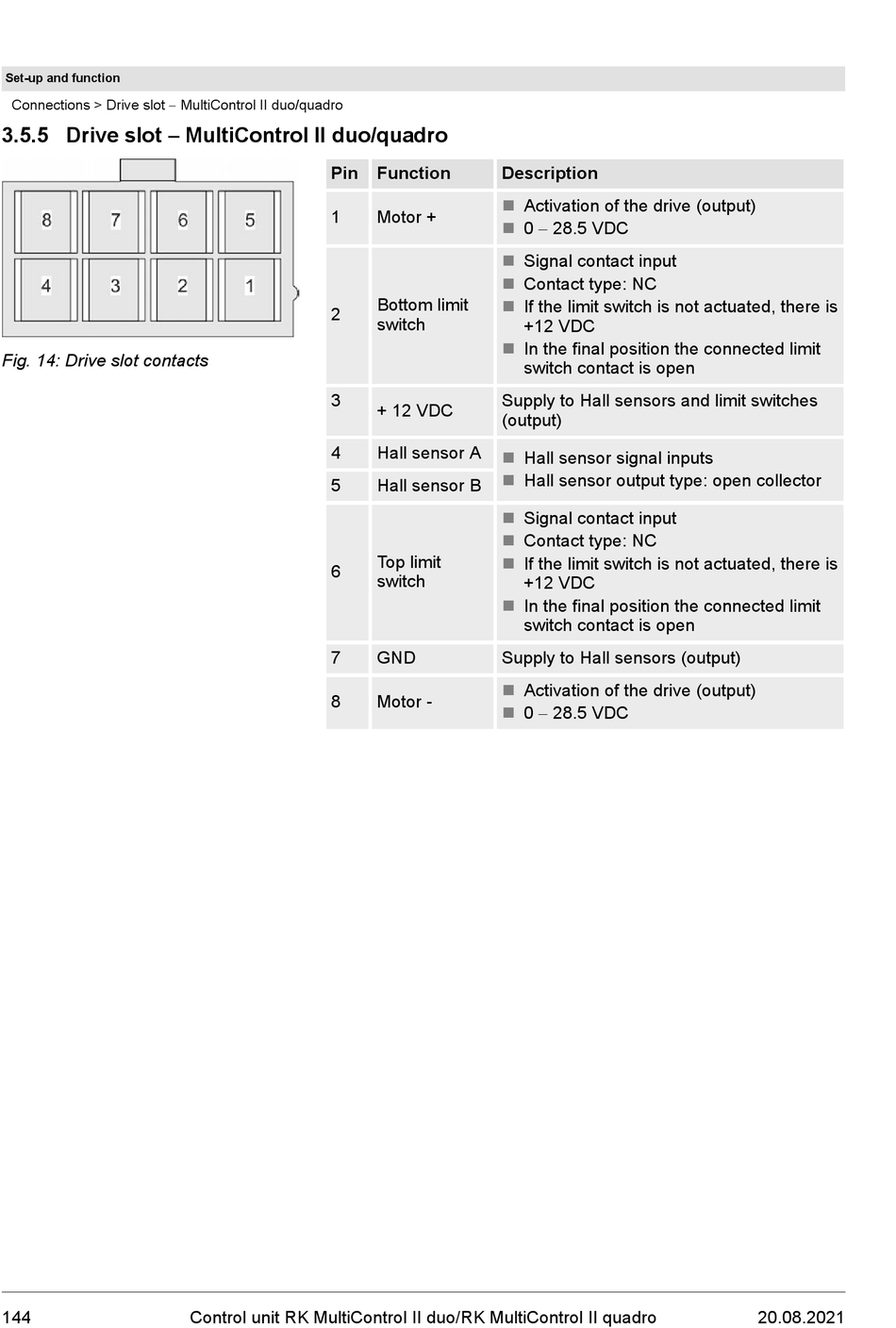

3.5.5 Drive slot - MultiControl II duo/quadro

Fig. 14: Drive slot contacts
144
Pin
1
2
3
4
5
6
7
8
Control unit RK MultiControl II duo/RK MultiControl II quadro
Function Description
n Activation of the drive (output)
Motor +
0 - 28.5 VDC
n
n Signal contact input
n Contact type: NC
Bottom limit
n If the limit switch is not actuated, there is
switch
+12 VDC
n In the final position the connected limit
switch contact is open
Supply to Hall sensors and limit switches
+ 12 VDC
(output)
Hall sensor A
n Hall sensor signal inputs
n Hall sensor output type: open collector
Hall sensor B
n Signal contact input
Contact type: NC
n
Top limit
n If the limit switch is not actuated, there is
switch
+12 VDC
n In the final position the connected limit
switch contact is open
GND Supply to Hall sensors (output)
n Activation of the drive (output)
Motor -
0 - 28.5 VDC
n
