Operating the hand switch with 6 function buttons
Control menu > Stop functions menu

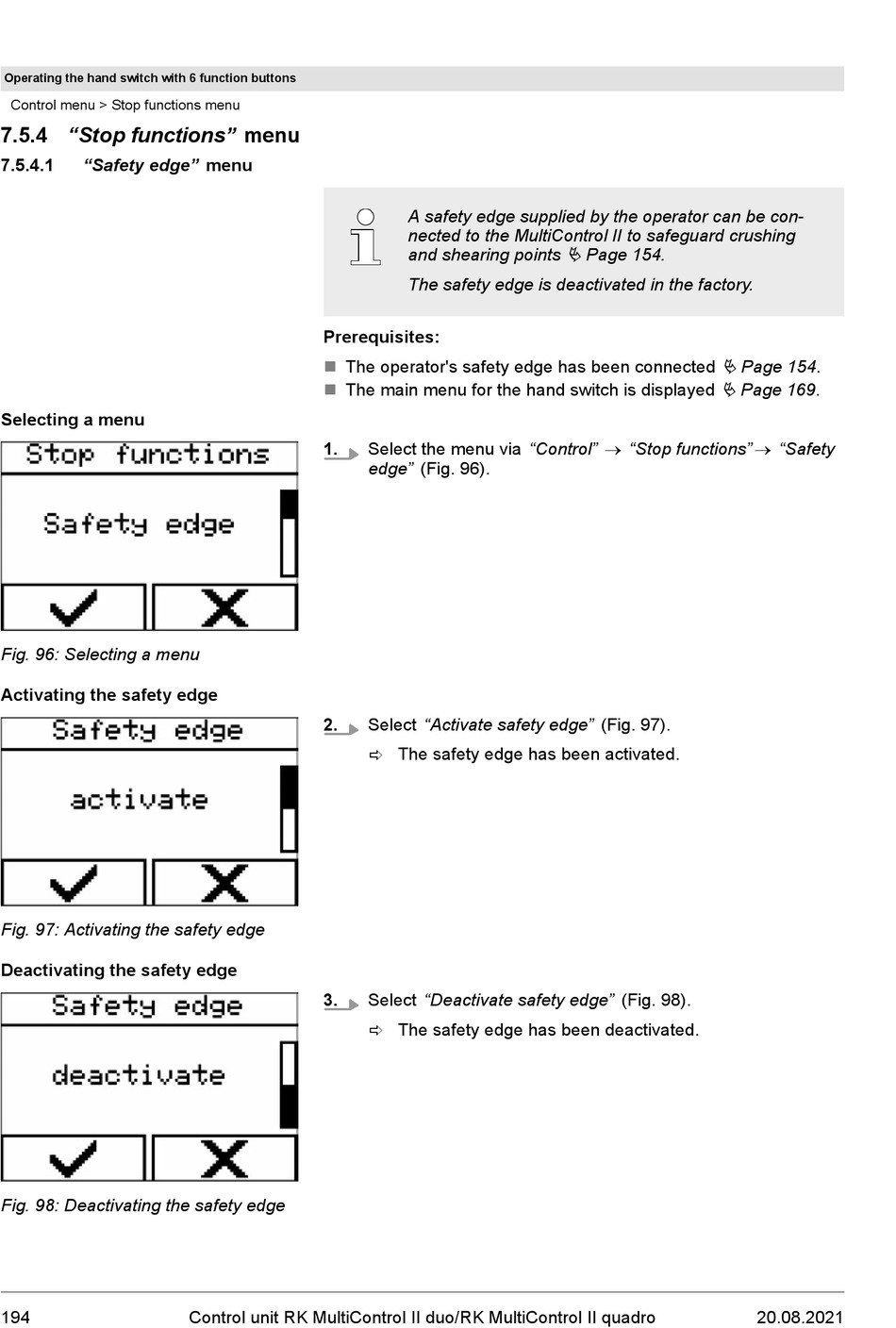

7.5.4 "Stop functions" menu

7.5.4.1

"Safety edge" menu

Selecting a menu
Fig. 96: Selecting a menu
Activating the safety edge
Fig. 97: Activating the safety edge
Deactivating the safety edge
Fig. 98: Deactivating the safety edge
194
Prerequisites:
n The operator's safety edge has been connected
n The main menu for the hand switch is displayed
1.
2.
3.
Control unit RK MultiControl II duo/RK MultiControl II quadro
A safety edge supplied by the operator can be con-
nected to the MultiControl II to safeguard crushing
and shearing points
The safety edge is deactivated in the factory.
Select the menu via "Control" ® "Stop functions" ® "Safety
edge" (Fig. 96).
Select "Activate safety edge" (Fig. 97).
ð The safety edge has been activated.
Select "Deactivate safety edge" (Fig. 98).
ð The safety edge has been deactivated.
Ä Page 154.
Ä Page 154.
Ä Page 169.
