Operating the hand switch with 6 function buttons
Control menu > Stroke settings menu

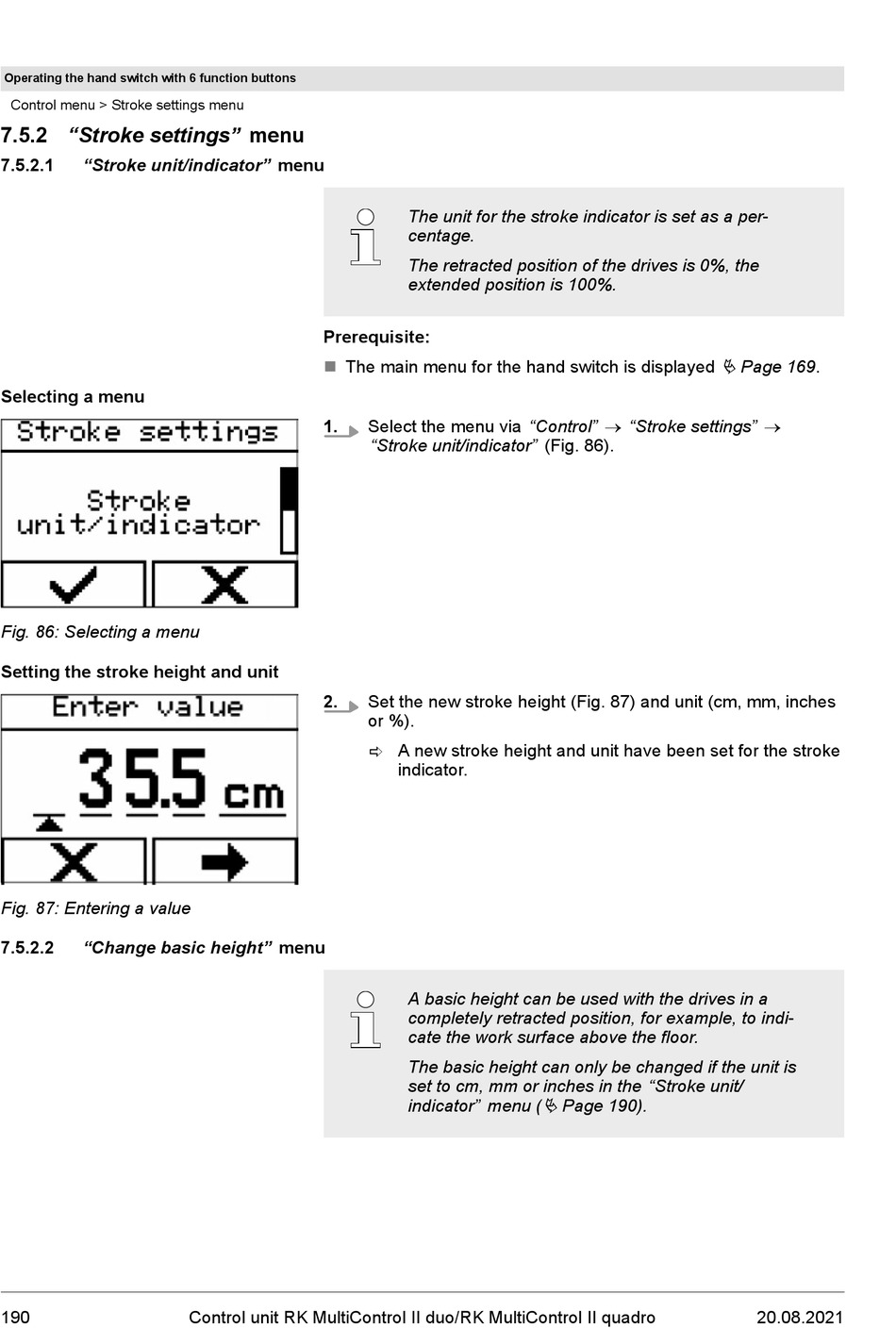

7.5.2 "Stroke settings" menu

7.5.2.1

"Stroke unit/indicator" menu

Selecting a menu
Fig. 86: Selecting a menu
Setting the stroke height and unit
Fig. 87: Entering a value
7.5.2.2

"Change basic height" menu

190
Prerequisite:
n The main menu for the hand switch is displayed
1.
2.
Control unit RK MultiControl II duo/RK MultiControl II quadro
The unit for the stroke indicator is set as a per-
centage.
The retracted position of the drives is 0%, the
extended position is 100%.
Select the menu via "Control" ® "Stroke settings" ®
"Stroke unit/indicator" (Fig. 86).
Set the new stroke height (Fig. 87) and unit (cm, mm, inches
or %).
ð A new stroke height and unit have been set for the stroke
indicator.
A basic height can be used with the drives in a
completely retracted position, for example, to indi-
cate the work surface above the floor.
The basic height can only be changed if the unit is
set to cm, mm or inches in the "Stroke unit/
indicator" menu (
Ä Page 190).
Ä Page 169.
