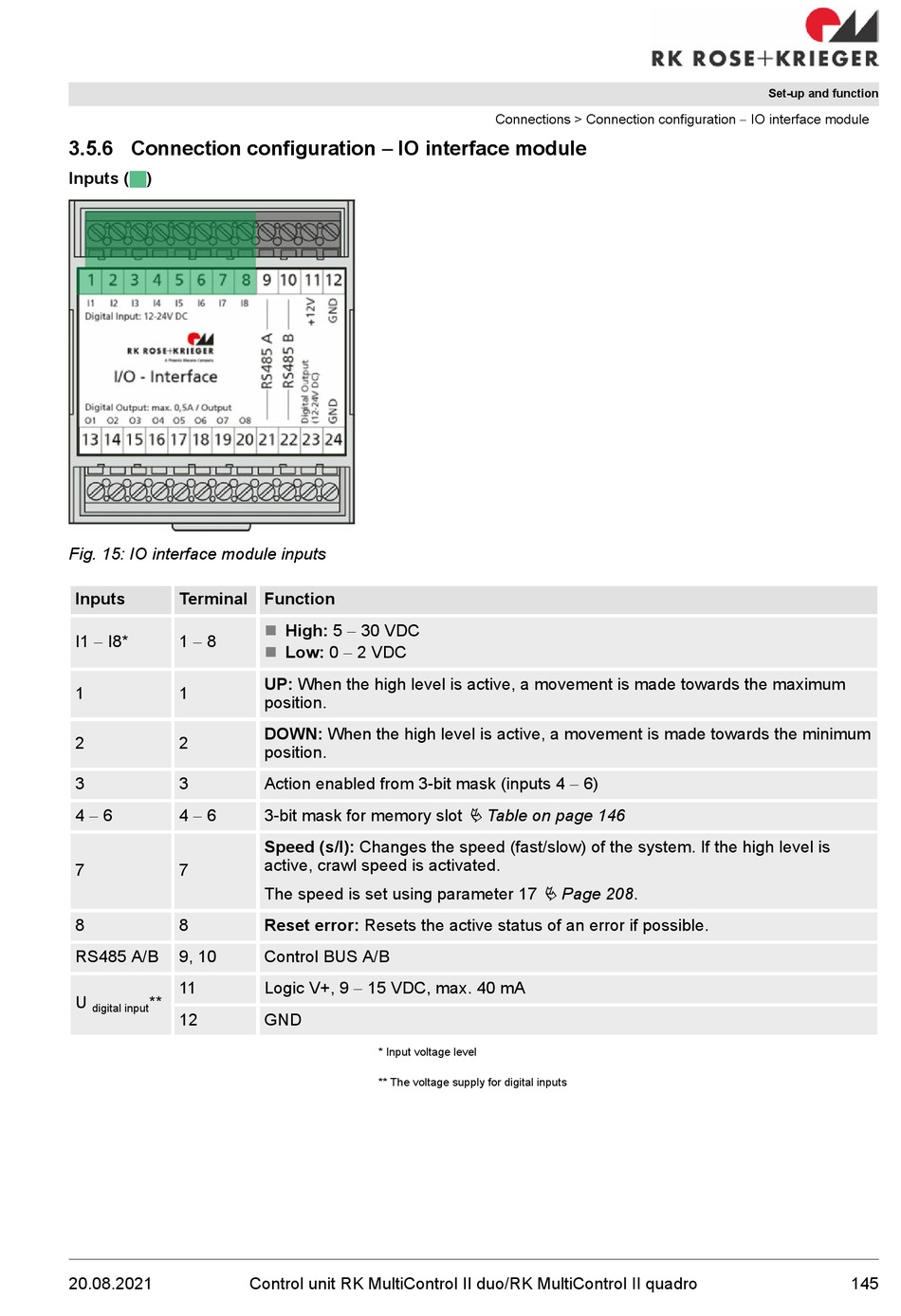

3.5.6 Connection configuration - IO interface module

Inputs ( )
Fig. 15: IO interface module inputs
Inputs Terminal Function
I1 - I8* 1 - 8
1 1
2 2
3 3
4 - 6 4 - 6
7 7
8 8
RS485 A/B 9, 10
11
U **
digital input
12
20.08.2021
High: 5 - 30 VDC
n
Low: 0 - 2 VDC
n
UP: When the high level is active, a movement is made towards the maximum
position.
DOWN: When the high level is active, a movement is made towards the minimum
position.
Action enabled from 3-bit mask (inputs 4 - 6)
3-bit mask for memory slot
Speed (s/l): Changes the speed (fast/slow) of the system. If the high level is
active, crawl speed is activated.
The speed is set using parameter 17
Reset error: Resets the active status of an error if possible.
Control BUS A/B
Logic V+, 9 - 15 VDC, max. 40 mA
GND
* Input voltage level
** The voltage supply for digital inputs
Control unit RK MultiControl II duo/RK MultiControl II quadro
Connections > Connection configuration - IO interface module
Ä Table on page 146
Ä Page 208.
