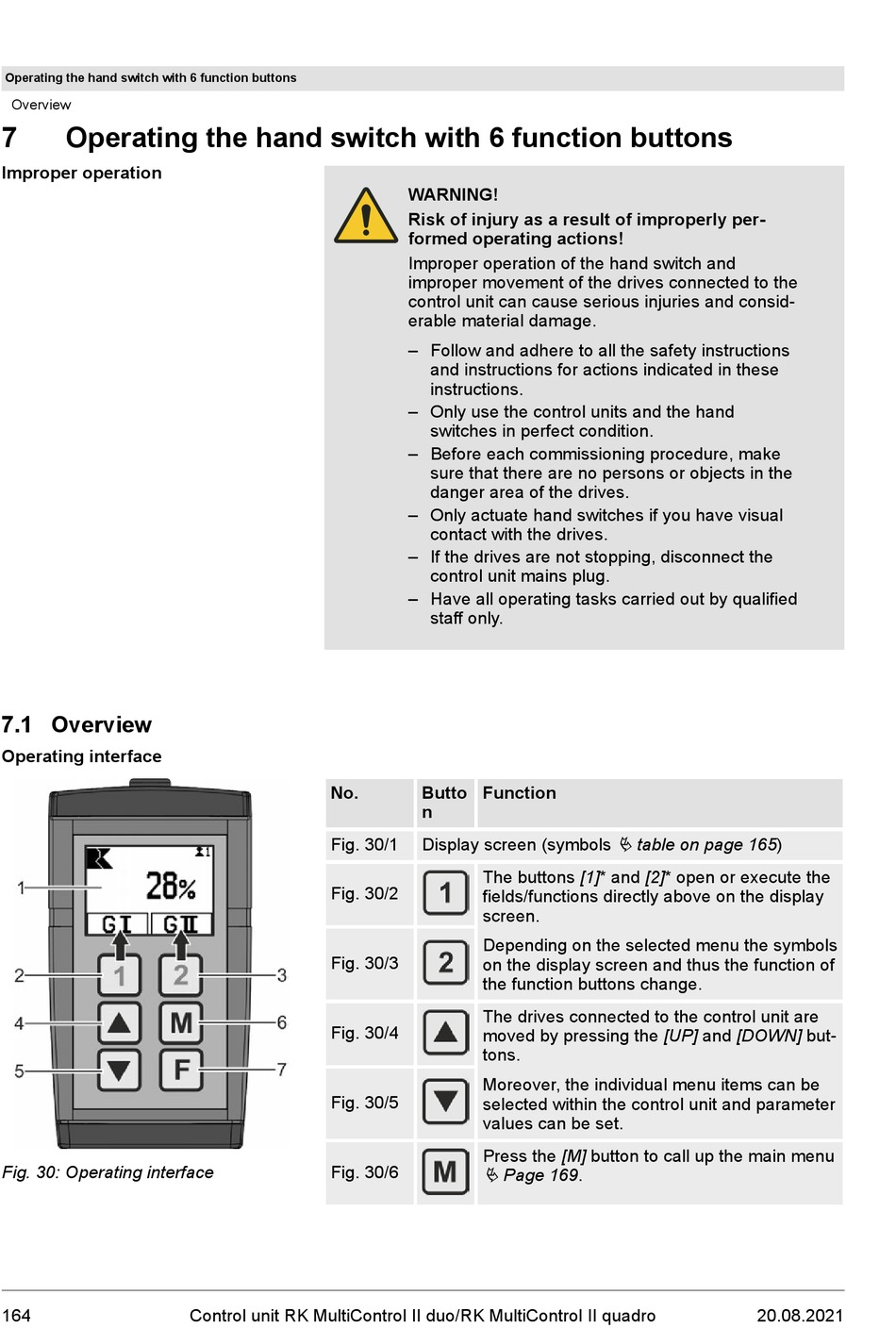

Operating the hand switch with 6 function buttons

Overview

7

Operating the hand switch with 6 function buttons

Improper operation
7.1 Overview
Operating interface
Fig. 30: Operating interface
164
No.
Fig. 30/1
Fig. 30/2
Fig. 30/3
Fig. 30/4
Fig. 30/5
Fig. 30/6
Control unit RK MultiControl II duo/RK MultiControl II quadro
WARNING!
Risk of injury as a result of improperly per-
formed operating actions!
Improper operation of the hand switch and
improper movement of the drives connected to the
control unit can cause serious injuries and consid-
erable material damage.
– Follow and adhere to all the safety instructions
and instructions for actions indicated in these
instructions.
– Only use the control units and the hand
switches in perfect condition.
– Before each commissioning procedure, make
sure that there are no persons or objects in the
danger area of the drives.
– Only actuate hand switches if you have visual
contact with the drives.
– If the drives are not stopping, disconnect the
control unit mains plug.
– Have all operating tasks carried out by qualified
staff only.
Butto Function
n
Display screen (symbols
The buttons [1]* and [2]* open or execute the
fields/functions directly above on the display
screen.
Depending on the selected menu the symbols
on the display screen and thus the function of
the function buttons change.
The drives connected to the control unit are
moved by pressing the [UP] and [DOWN] but-
tons.
Moreover, the individual menu items can be
selected within the control unit and parameter
values can be set.
Press the [M] button to call up the main menu
Ä Page 169.
Ä table on page 165)
