Operating the hand switch with 6 function buttons
Control menu > Stop functions menu
Deactivating the stop input

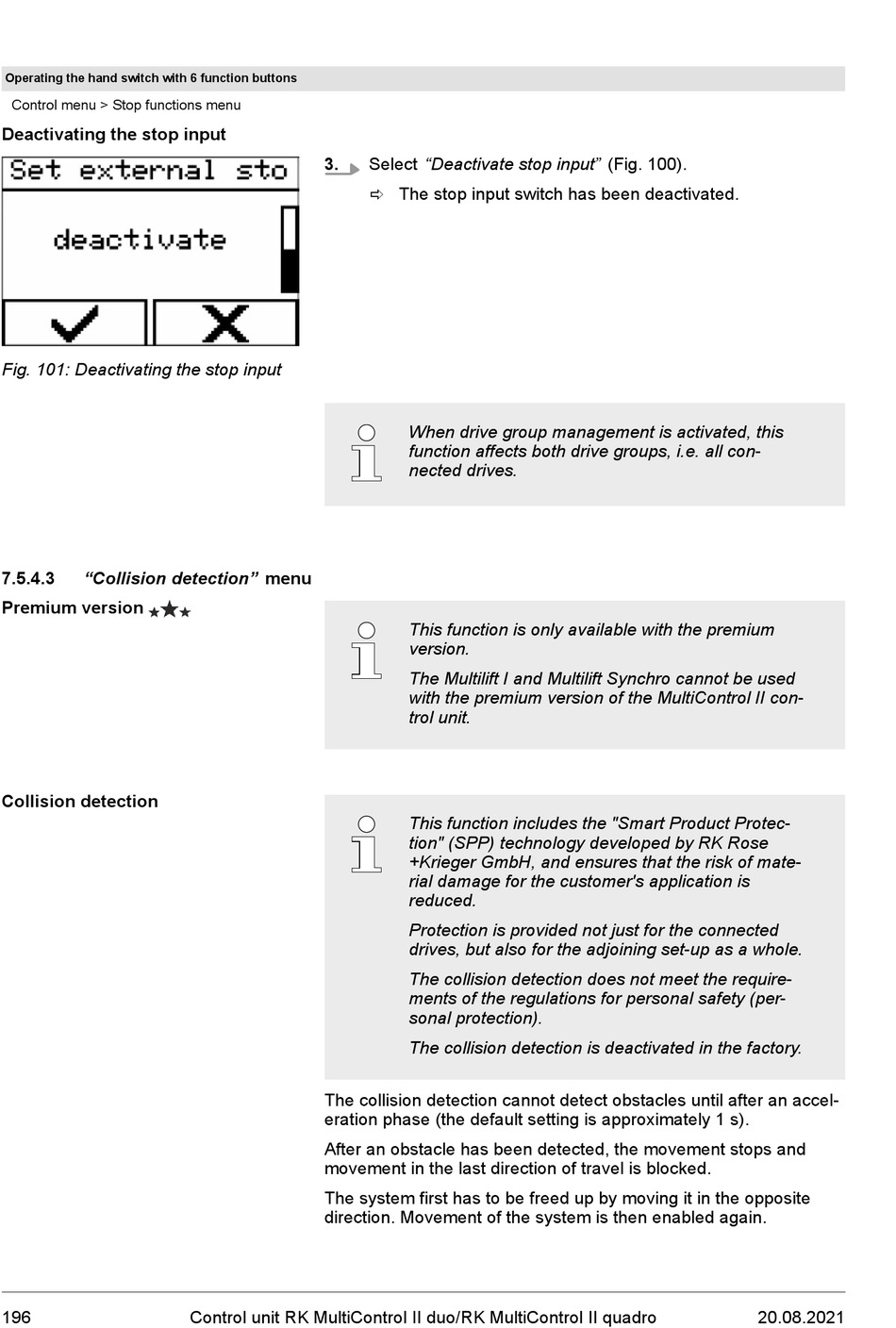

Fig. 101: Deactivating the stop input
7.5.4.3

"Collision detection" menu

Premium version
Collision detection
196
3.
The collision detection cannot detect obstacles until after an accel-
eration phase (the default setting is approximately 1 s).
After an obstacle has been detected, the movement stops and
movement in the last direction of travel is blocked.
The system first has to be freed up by moving it in the opposite
direction. Movement of the system is then enabled again.
Control unit RK MultiControl II duo/RK MultiControl II quadro
Select "Deactivate stop input" (Fig. 100).
ð The stop input switch has been deactivated.
When drive group management is activated, this
function affects both drive groups, i.e. all con-
nected drives.
This function is only available with the premium
version.
The Multilift I and Multilift Synchro cannot be used
with the premium version of the MultiControl II con-
trol unit.
This function includes the "Smart Product Protec-
tion" (SPP) technology developed by RK Rose
+Krieger GmbH, and ensures that the risk of mate-
rial damage for the customer's application is
reduced.
Protection is provided not just for the connected
drives, but also for the adjoining set-up as a whole.
The collision detection does not meet the require-
ments of the regulations for personal safety (per-
sonal protection).
The collision detection is deactivated in the factory.
20.08.2021
