Set-up and function
Connections > Connection configuration - MultiControl II quadro

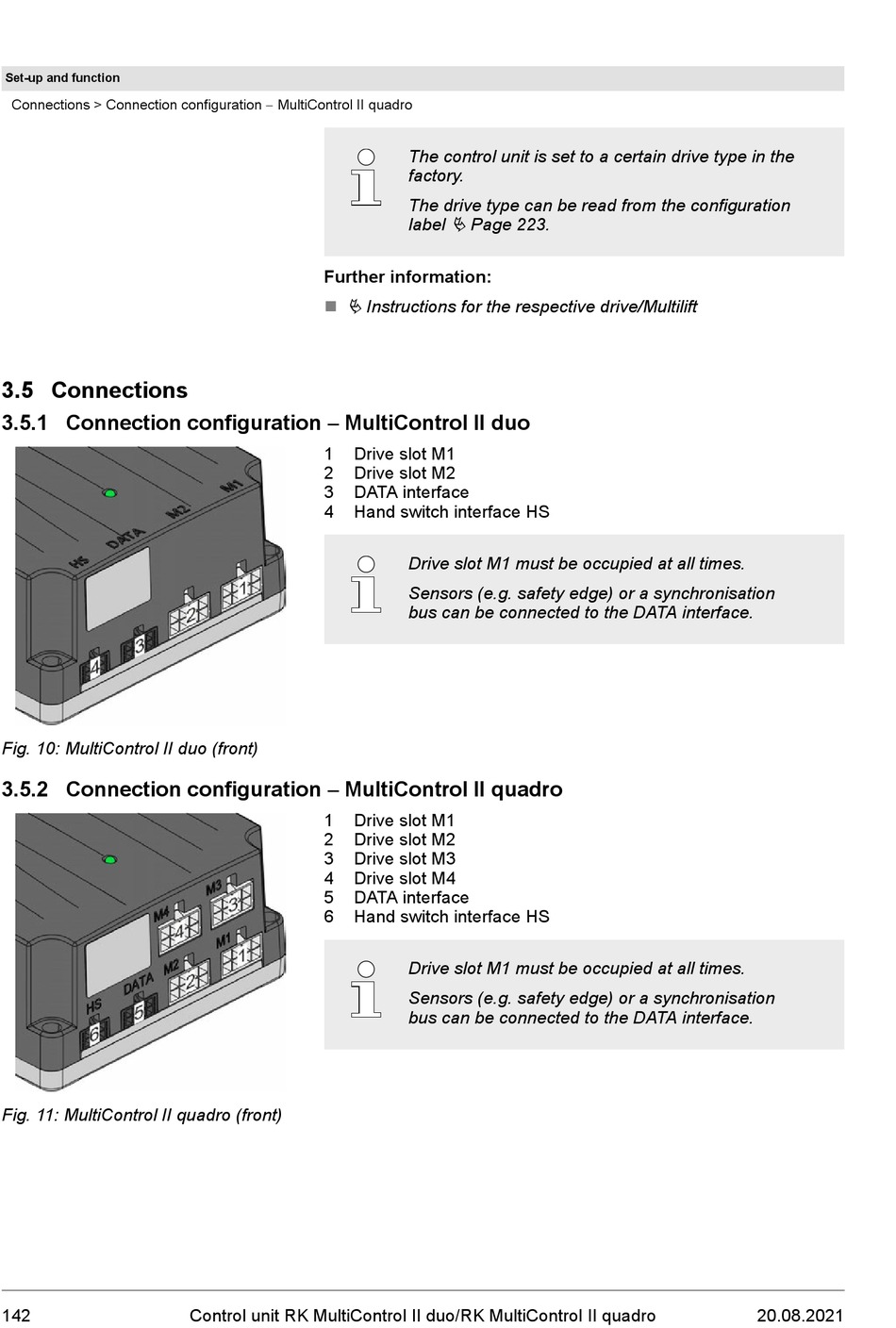

3.5 Connections

3.5.1 Connection configuration - MultiControl II duo

Fig. 10: MultiControl II duo (front)

3.5.2 Connection configuration - MultiControl II quadro

Fig. 11: MultiControl II quadro (front)
142
Further information:
Ä Instructions for the respective drive/Multilift
n
1 Drive slot M1
2 Drive slot M2
3 DATA interface
4 Hand switch interface HS
1 Drive slot M1
2 Drive slot M2
3 Drive slot M3
4 Drive slot M4
5 DATA interface
6 Hand switch interface HS
Control unit RK MultiControl II duo/RK MultiControl II quadro
The control unit is set to a certain drive type in the
factory.
The drive type can be read from the configuration
Ä Page 223.
label
Drive slot M1 must be occupied at all times.
Sensors (e.g. safety edge) or a synchronisation
bus can be connected to the DATA interface.
Drive slot M1 must be occupied at all times.
Sensors (e.g. safety edge) or a synchronisation
bus can be connected to the DATA interface.
20.08.2021
