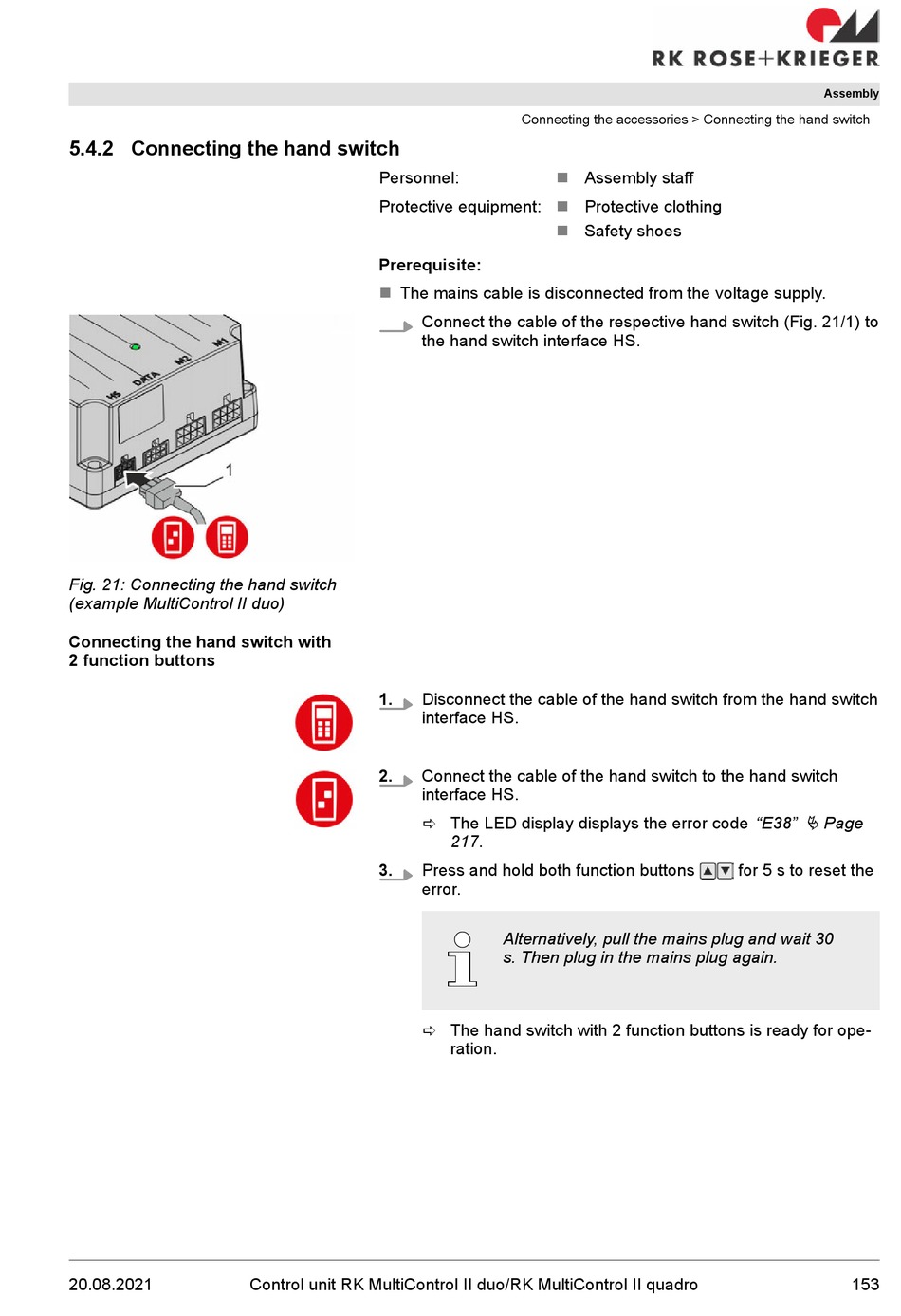

5.4.2 Connecting the hand switch

Fig. 21: Connecting the hand switch
(example MultiControl II duo)
Connecting the hand switch with
2 function buttons
20.08.2021
Personnel:
Protective equipment:
Prerequisite:
n The mains cable is disconnected from the voltage supply.
1.
2.
3.
Control unit RK MultiControl II duo/RK MultiControl II quadro
Connecting the accessories > Connecting the hand switch
n Assembly staff
Protective clothing
n
n Safety shoes
Connect the cable of the respective hand switch (Fig. 21/1) to
the hand switch interface HS.
Disconnect the cable of the hand switch from the hand switch
interface HS.
Connect the cable of the hand switch to the hand switch
interface HS.
ð The LED display displays the error code "E38"
217.
Press and hold both function buttons
error.
Alternatively, pull the mains plug and wait 30
s. Then plug in the mains plug again.
ð The hand switch with 2 function buttons is ready for ope-
ration.
Assembly
Ä Page
for 5 s to reset the
153
