Assembly
Connecting the accessories > Connecting the safety edge provided by the operator
Connecting the hand switch with
6 function buttons

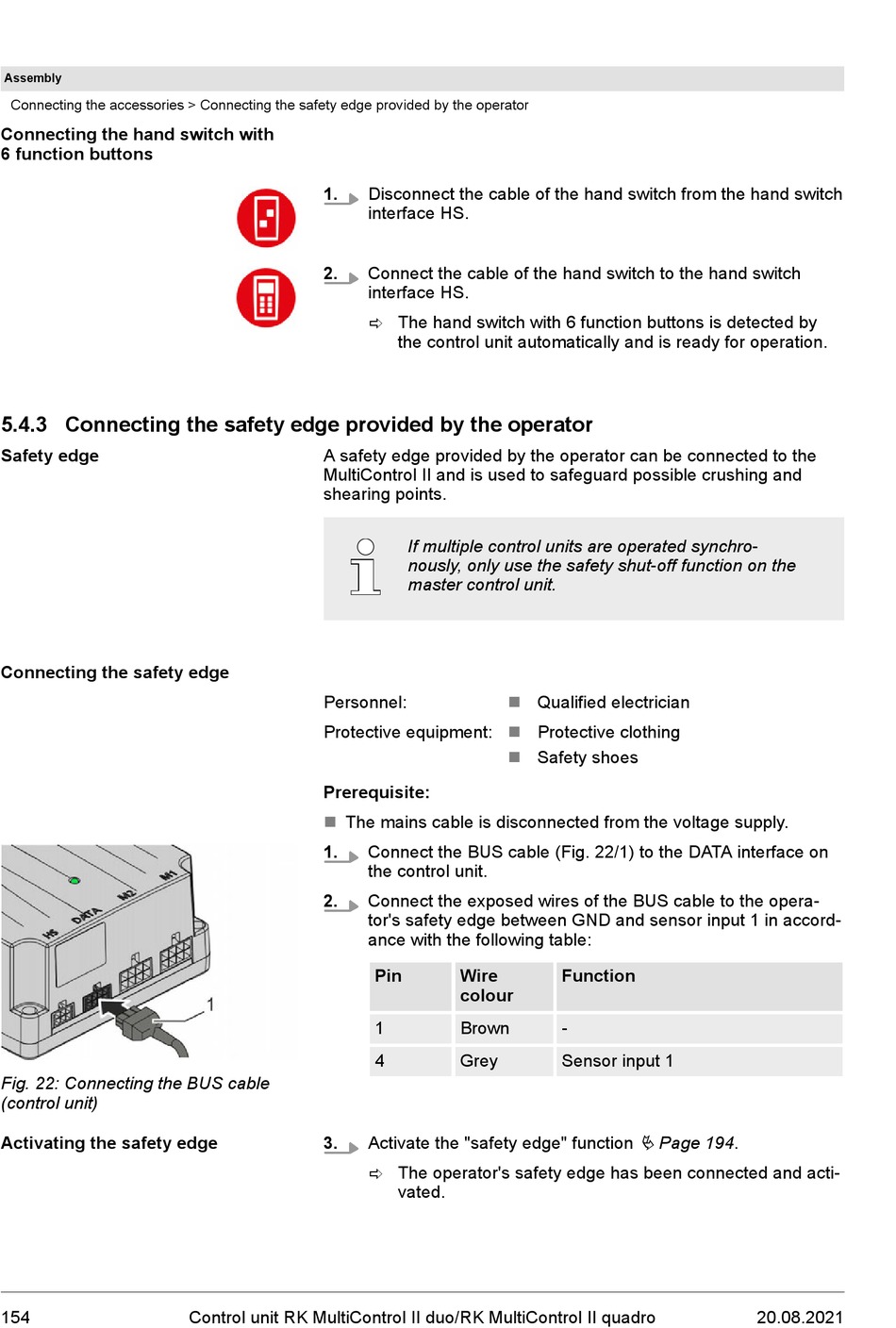

5.4.3 Connecting the safety edge provided by the operator

Safety edge
Connecting the safety edge
Fig. 22: Connecting the BUS cable
(control unit)
Activating the safety edge
154
1.
2.
A safety edge provided by the operator can be connected to the
MultiControl II and is used to safeguard possible crushing and
shearing points.
Personnel:
Protective equipment:
Prerequisite:
The mains cable is disconnected from the voltage supply.
n
1.
2.
3.
Control unit RK MultiControl II duo/RK MultiControl II quadro
Disconnect the cable of the hand switch from the hand switch
interface HS.
Connect the cable of the hand switch to the hand switch
interface HS.
ð The hand switch with 6 function buttons is detected by
the control unit automatically and is ready for operation.
If multiple control units are operated synchro-
nously, only use the safety shut-off function on the
master control unit.
n Qualified electrician
n Protective clothing
n Safety shoes
Connect the BUS cable (Fig. 22/1) to the DATA interface on
the control unit.
Connect the exposed wires of the BUS cable to the opera-
tor's safety edge between GND and sensor input 1 in accord-
ance with the following table:
Pin Wire
colour
1 Brown
4 Grey
Activate the "safety edge" function
ð The operator's safety edge has been connected and acti-
vated.
Function
-
Sensor input 1
Ä Page 194.
