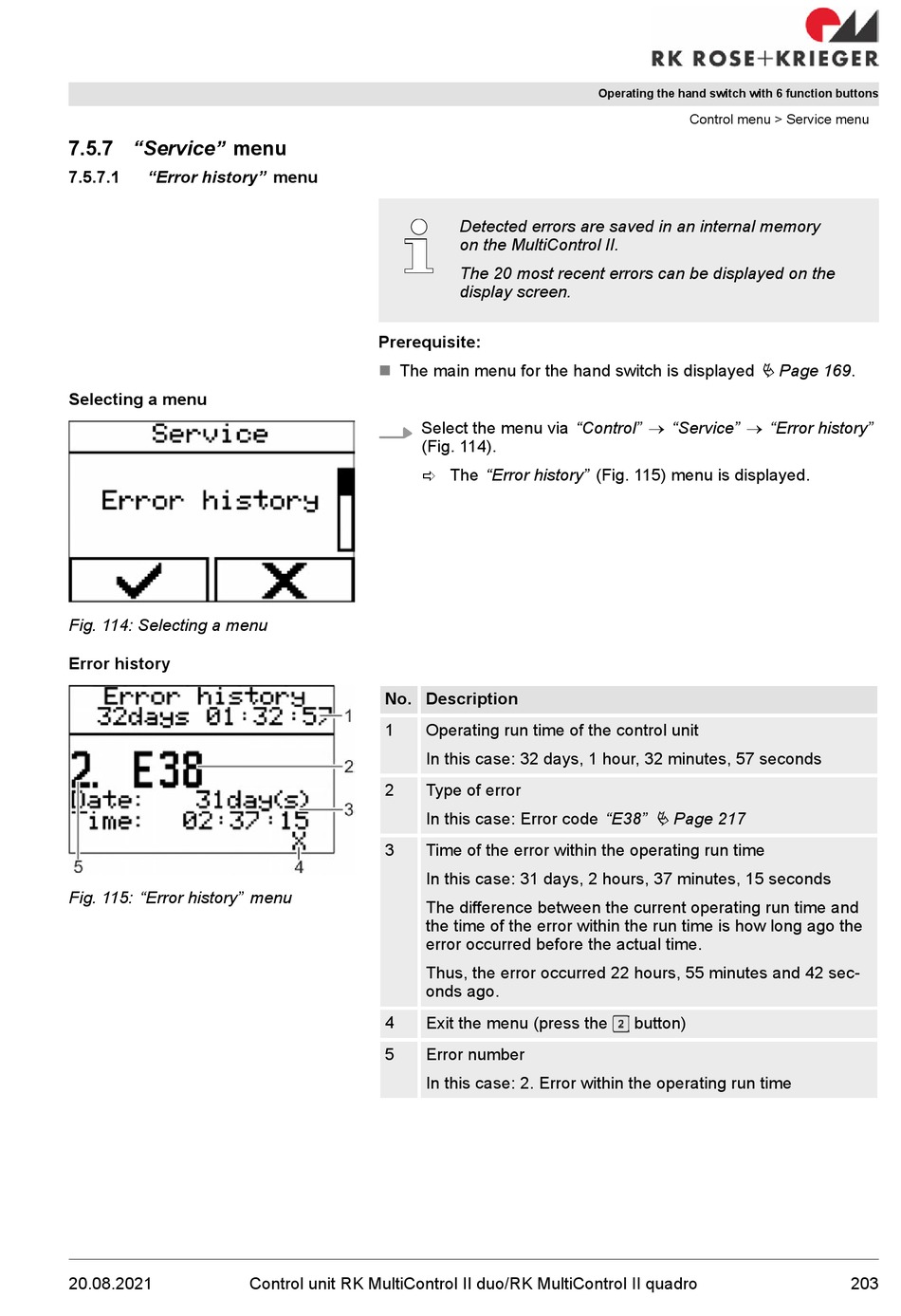

7.5.7 "Service" menu

7.5.7.1

"Error history" menu

Selecting a menu
Fig. 114: Selecting a menu
Error history
Fig. 115: "Error history" menu
20.08.2021
Prerequisite:
n The main menu for the hand switch is displayed
No. Description
1
2
3
4
5
Control unit RK MultiControl II duo/RK MultiControl II quadro
Detected errors are saved in an internal memory
on the MultiControl II.
The 20 most recent errors can be displayed on the
display screen.
Select the menu via "Control" ® "Service" ® "Error history"
(Fig. 114).
ð The "Error history" (Fig. 115) menu is displayed.
Operating run time of the control unit
In this case: 32 days, 1 hour, 32 minutes, 57 seconds
Type of error
In this case: Error code "E38"
Time of the error within the operating run time
In this case: 31 days, 2 hours, 37 minutes, 15 seconds
The difference between the current operating run time and
the time of the error within the run time is how long ago the
error occurred before the actual time.
Thus, the error occurred 22 hours, 55 minutes and 42 sec-
onds ago.
Exit the menu (press the
Error number
In this case: 2. Error within the operating run time
Operating the hand switch with 6 function buttons
Control menu > Service menu
Ä Page 169.
Ä Page 217
button)
203
