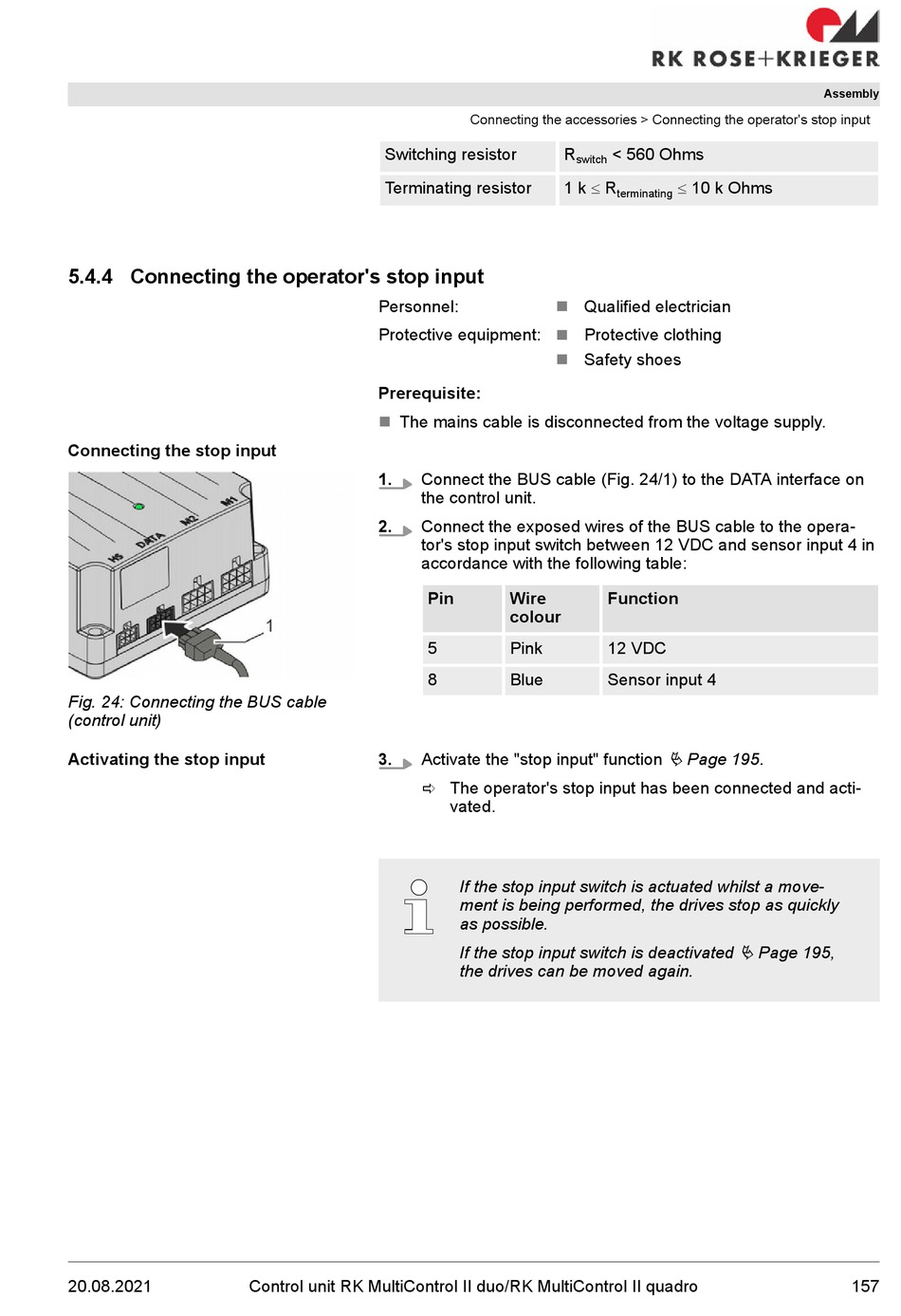

5.4.4 Connecting the operator's stop input

Connecting the stop input
Fig. 24: Connecting the BUS cable
(control unit)
Activating the stop input
20.08.2021
Switching resistor
Terminating resistor
Personnel:
Protective equipment:
Prerequisite:
The mains cable is disconnected from the voltage supply.
n
1.
2.
3.
Control unit RK MultiControl II duo/RK MultiControl II quadro
Connecting the accessories > Connecting the operator's stop input
R
switch
1 k £ R
n Qualified electrician
n Protective clothing
n Safety shoes
Connect the BUS cable (Fig. 24/1) to the DATA interface on
the control unit.
Connect the exposed wires of the BUS cable to the opera-
tor's stop input switch between 12 VDC and sensor input 4 in
accordance with the following table:
Pin Wire
colour
5 Pink
8 Blue
Activate the "stop input" function
ð The operator's stop input has been connected and acti-
vated.
If the stop input switch is actuated whilst a move-
ment is being performed, the drives stop as quickly
as possible.
If the stop input switch is deactivated
the drives can be moved again.
< 560 Ohms
£ 10 k Ohms
terminating
Function
12 VDC
Sensor input 4
Ä Page 195.
Ä Page 195,
