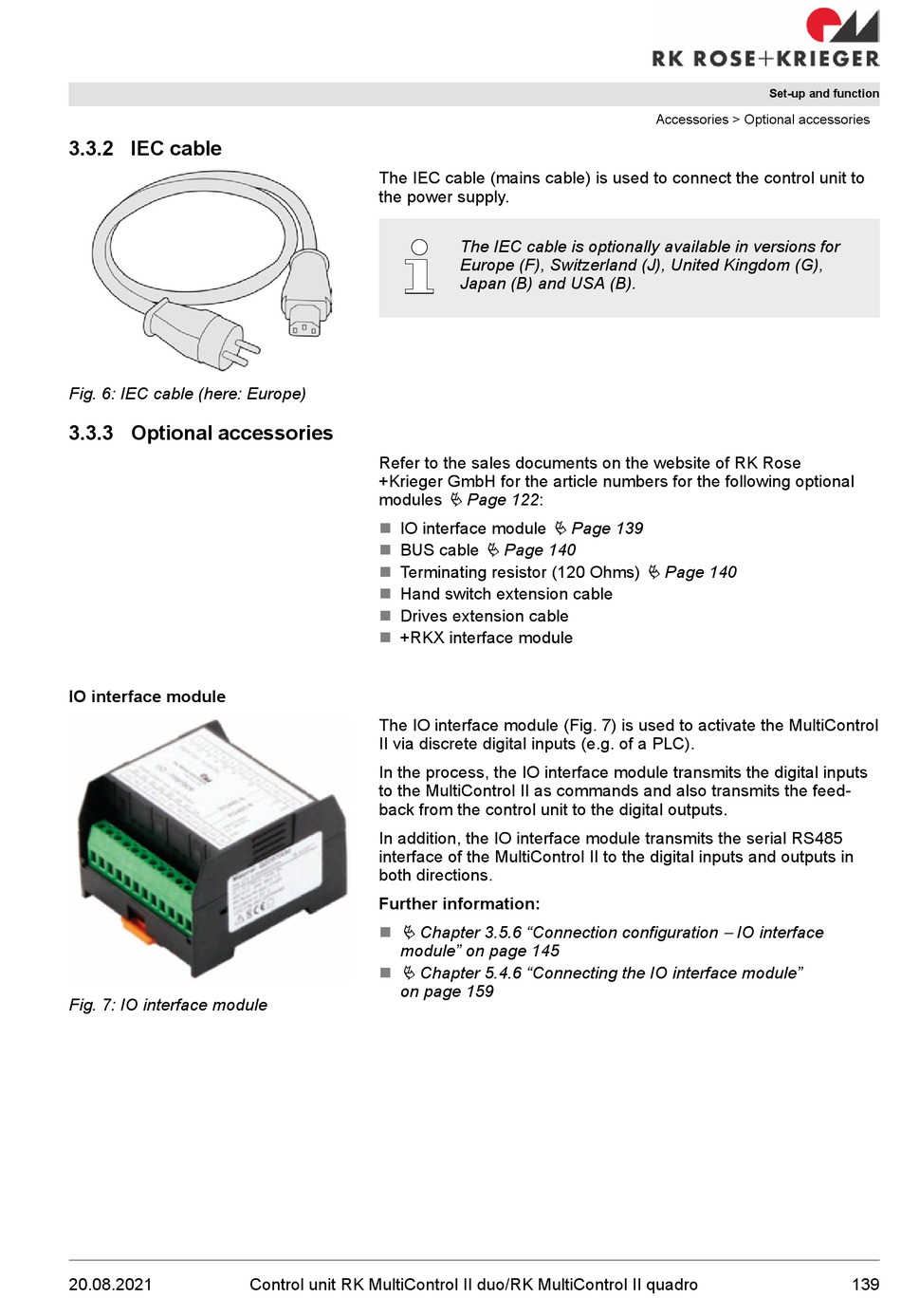

3.3.2 IEC cable

Fig. 6: IEC cable (here: Europe)

3.3.3 Optional accessories

IO interface module
Fig. 7: IO interface module
20.08.2021
The IEC cable (mains cable) is used to connect the control unit to
the power supply.
Refer to the sales documents on the website of RK Rose
+Krieger GmbH for the article numbers for the following optional
modules
IO interface module
n
n BUS cable
n Terminating resistor (120 Ohms)
n Hand switch extension cable
n Drives extension cable
n +RKX interface module
The IO interface module (Fig. 7) is used to activate the MultiControl
II via discrete digital inputs (e.g. of a PLC).
In the process, the IO interface module transmits the digital inputs
to the MultiControl II as commands and also transmits the feed-
back from the control unit to the digital outputs.
In addition, the IO interface module transmits the serial RS485
interface of the MultiControl II to the digital inputs and outputs in
both directions.
Further information:
Ä Chapter 3.5.6 "Connection configuration - IO interface
n
module" on page 145
Ä Chapter 5.4.6 "Connecting the IO interface module"
n
on page 159
Control unit RK MultiControl II duo/RK MultiControl II quadro
The IEC cable is optionally available in versions for
Europe (F), Switzerland (J), United Kingdom (G),
Japan (B) and USA (B).
Ä Page 122:
Ä Page 139
Ä Page 140
Set-up and function
Accessories > Optional accessories
Ä Page 140
