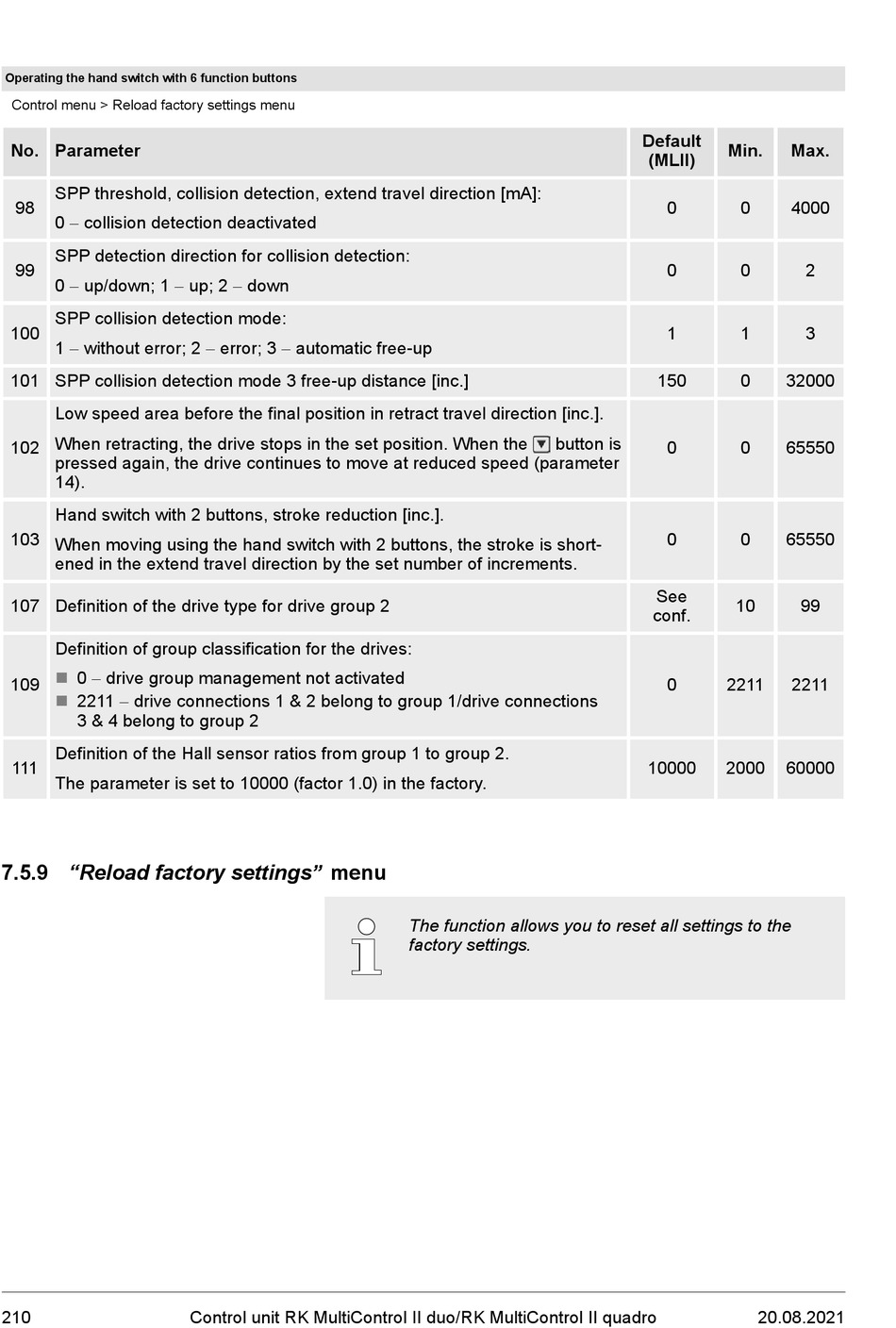

Reload Factory Settings" Menu - RK Rose+Krieger MultiControl II duo Montageanleitung

Operating the hand switch with 6 function buttons
Control menu > Reload factory settings menu
No. Parameter
SPP threshold, collision detection, extend travel direction [mA]:
98
0 - collision detection deactivated
SPP detection direction for collision detection:
99
0 - up/down; 1 - up; 2 - down
SPP collision detection mode:
100
1 - without error; 2 - error; 3 - automatic free-up
101 SPP collision detection mode 3 free-up distance [inc.]
Low speed area before the final position in retract travel direction [inc.].
When retracting, the drive stops in the set position. When the
102
pressed again, the drive continues to move at reduced speed (parameter
14).
Hand switch with 2 buttons, stroke reduction [inc.].
103
When moving using the hand switch with 2 buttons, the stroke is short-
ened in the extend travel direction by the set number of increments.
107 Definition of the drive type for drive group 2
Definition of group classification for the drives:
0 - drive group management not activated
n
109
2211 - drive connections 1 & 2 belong to group 1/drive connections
n
3 & 4 belong to group 2
Definition of the Hall sensor ratios from group 1 to group 2.
111
The parameter is set to 10000 (factor 1.0) in the factory.

7.5.9 "Reload factory settings" menu

210 Control unit RK MultiControl II duo/RK MultiControl II quadro
button is
The function allows you to reset all settings to the
factory settings.
Default
Min. Max.
(MLII)
0 0 4000
0 0 2
1 1 3
150 0 32000
0 0 65550
0 0 65550
See
10 99
conf.
0 2211 2211
10000 2000 60000
20.08.2021
