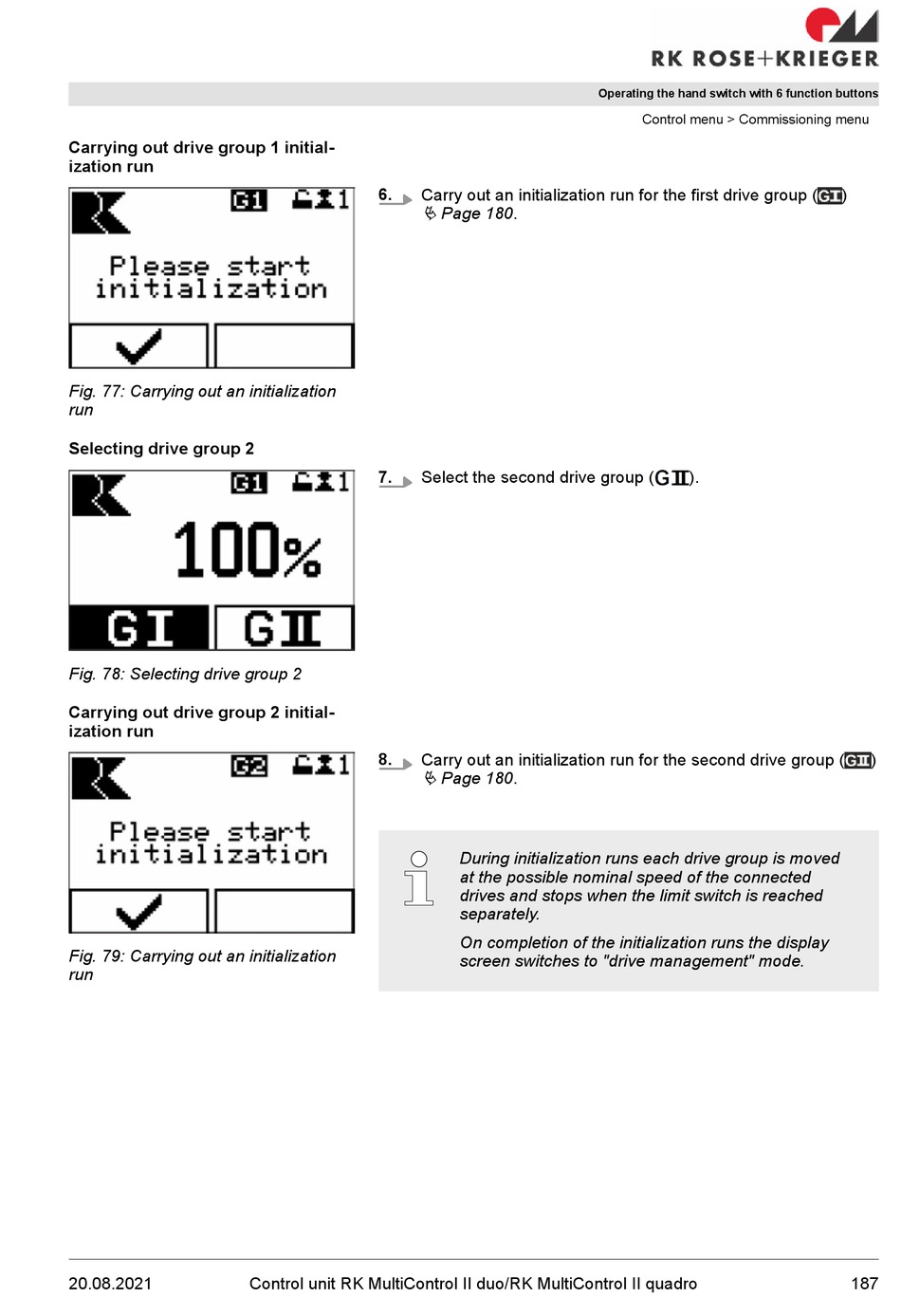

Carrying out drive group 1 initial-
ization run
Fig. 77: Carrying out an initialization
run
Selecting drive group 2
Fig. 78: Selecting drive group 2
Carrying out drive group 2 initial-
ization run
Fig. 79: Carrying out an initialization
run
20.08.2021
6.
7.
8.
Control unit RK MultiControl II duo/RK MultiControl II quadro
Carry out an initialization run for the first drive group (
Ä Page 180.
Select the second drive group (
Carry out an initialization run for the second drive group (
Ä Page 180.
During initialization runs each drive group is moved
at the possible nominal speed of the connected
drives and stops when the limit switch is reached
separately.
On completion of the initialization runs the display
screen switches to "drive management" mode.
Operating the hand switch with 6 function buttons
Control menu > Commissioning menu
).
)
)
