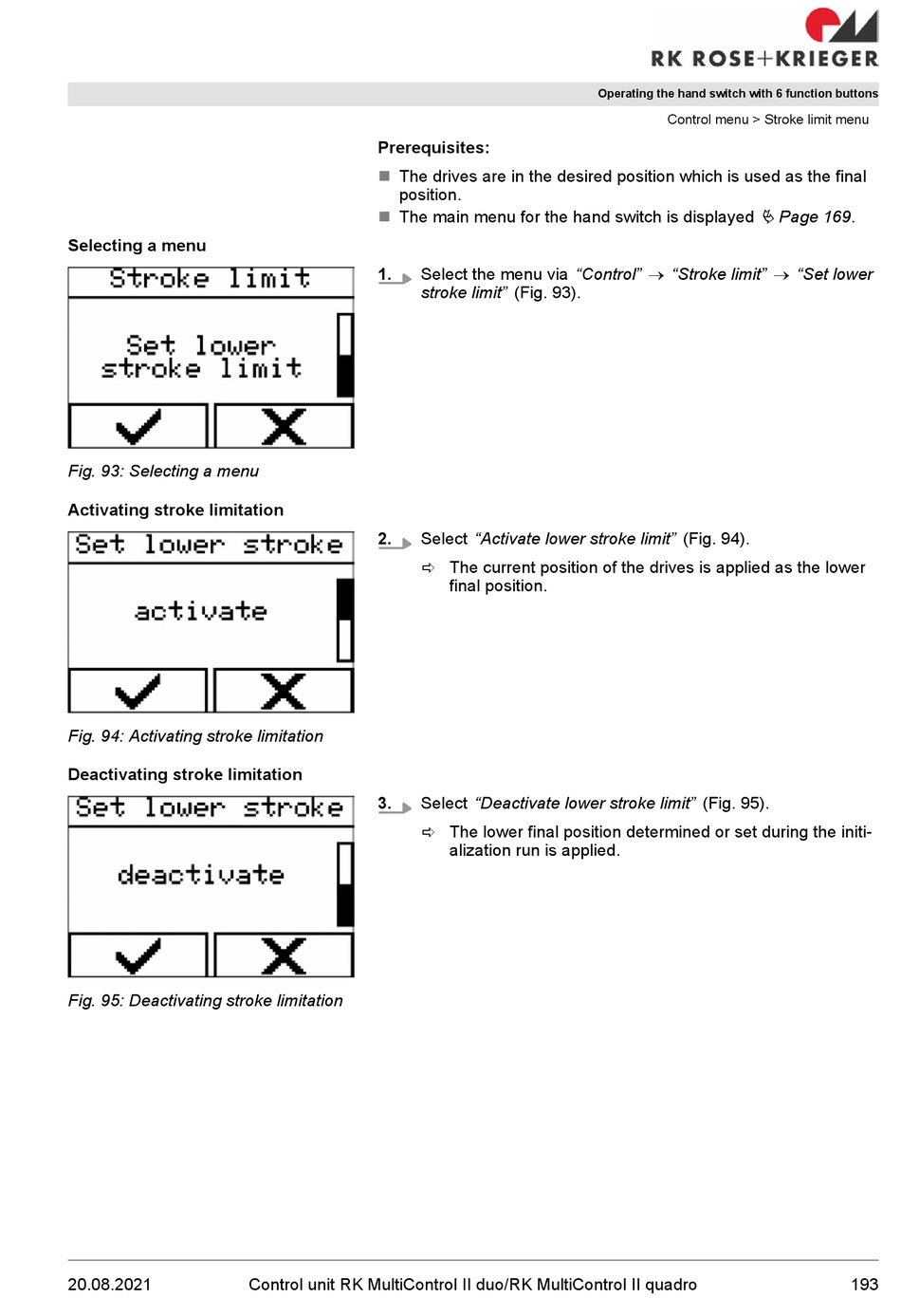

RK Rose+Krieger MultiControl II duo Montageanleitung Seite 193

Selecting a menu
Fig. 93: Selecting a menu
Activating stroke limitation
Fig. 94: Activating stroke limitation
Deactivating stroke limitation
Fig. 95: Deactivating stroke limitation
20.08.2021
Prerequisites:
n The drives are in the desired position which is used as the final
position.
n The main menu for the hand switch is displayed
1.
2.
3.
Control unit RK MultiControl II duo/RK MultiControl II quadro
Select the menu via "Control" ® "Stroke limit" ® "Set lower
stroke limit" (Fig. 93).
Select "Activate lower stroke limit" (Fig. 94).
ð The current position of the drives is applied as the lower
final position.
Select "Deactivate lower stroke limit" (Fig. 95).
ð The lower final position determined or set during the initi-
alization run is applied.
Operating the hand switch with 6 function buttons
Control menu > Stroke limit menu
Ä Page 169.
