Set-up and function

3.1 Overview

Overview - MultiControl II duo

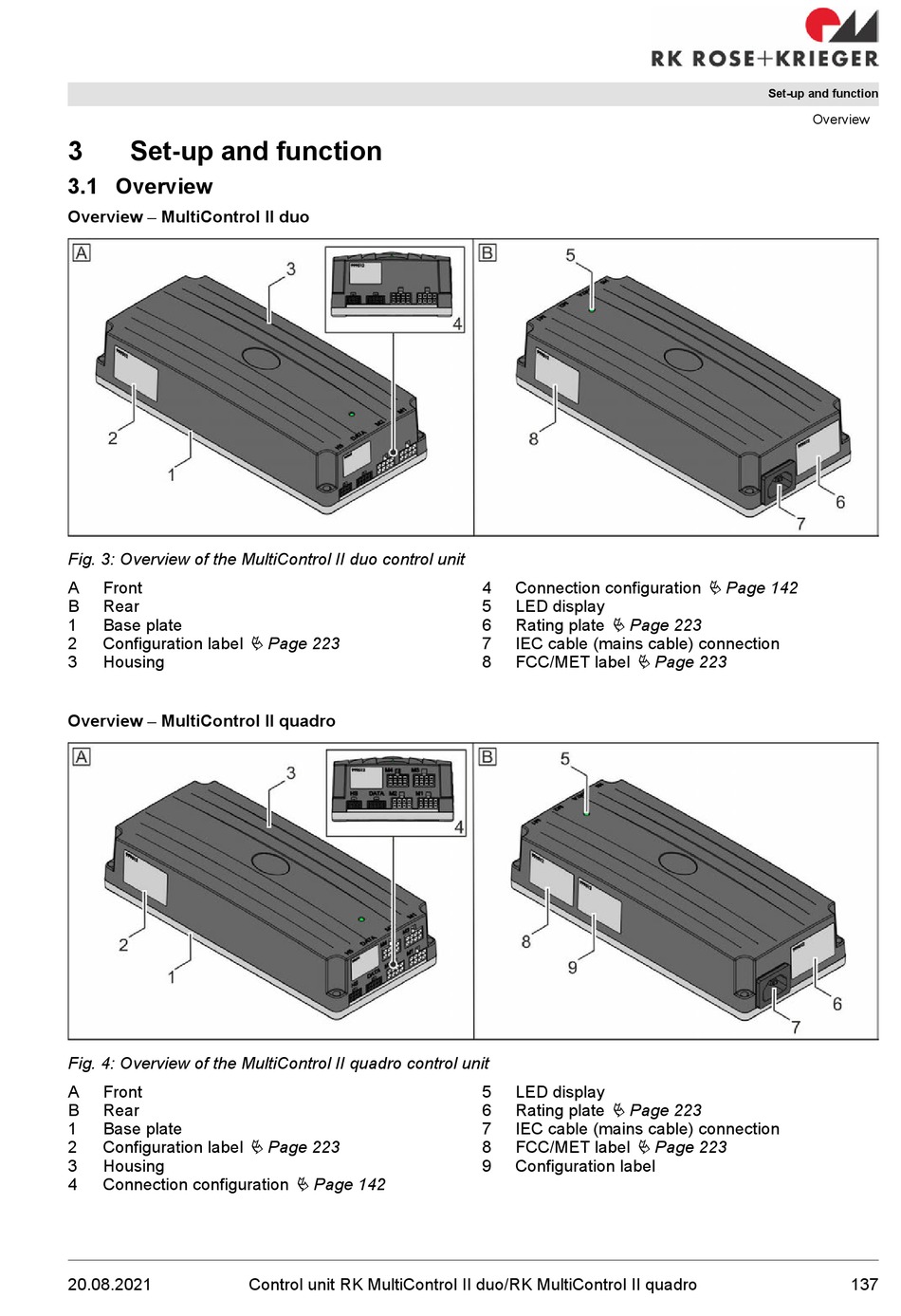

Fig. 3: Overview of the MultiControl II duo control unit
A Front
B Rear
1 Base plate
2 Configuration label
3 Housing
Overview - MultiControl II quadro
Fig. 4: Overview of the MultiControl II quadro control unit
A Front
B Rear
1 Base plate
2 Configuration label
3 Housing
4 Connection configuration
20.08.2021
Ä Page 223
Ä Page 223
Ä Page 142
Control unit RK MultiControl II duo/RK MultiControl II quadro
4 Connection configuration
5 LED display
6 Rating plate Ä Page 223
7 IEC cable (mains cable) connection
8 FCC/MET label Ä Page 223
5 LED display
Ä Page 223
6 Rating plate
7 IEC cable (mains cable) connection
Ä Page 223
8 FCC/MET label
9 Configuration label

Set-up and function

Overview
Ä Page 142
