Set-up and function
Connections > Connection configuration - IO interface module

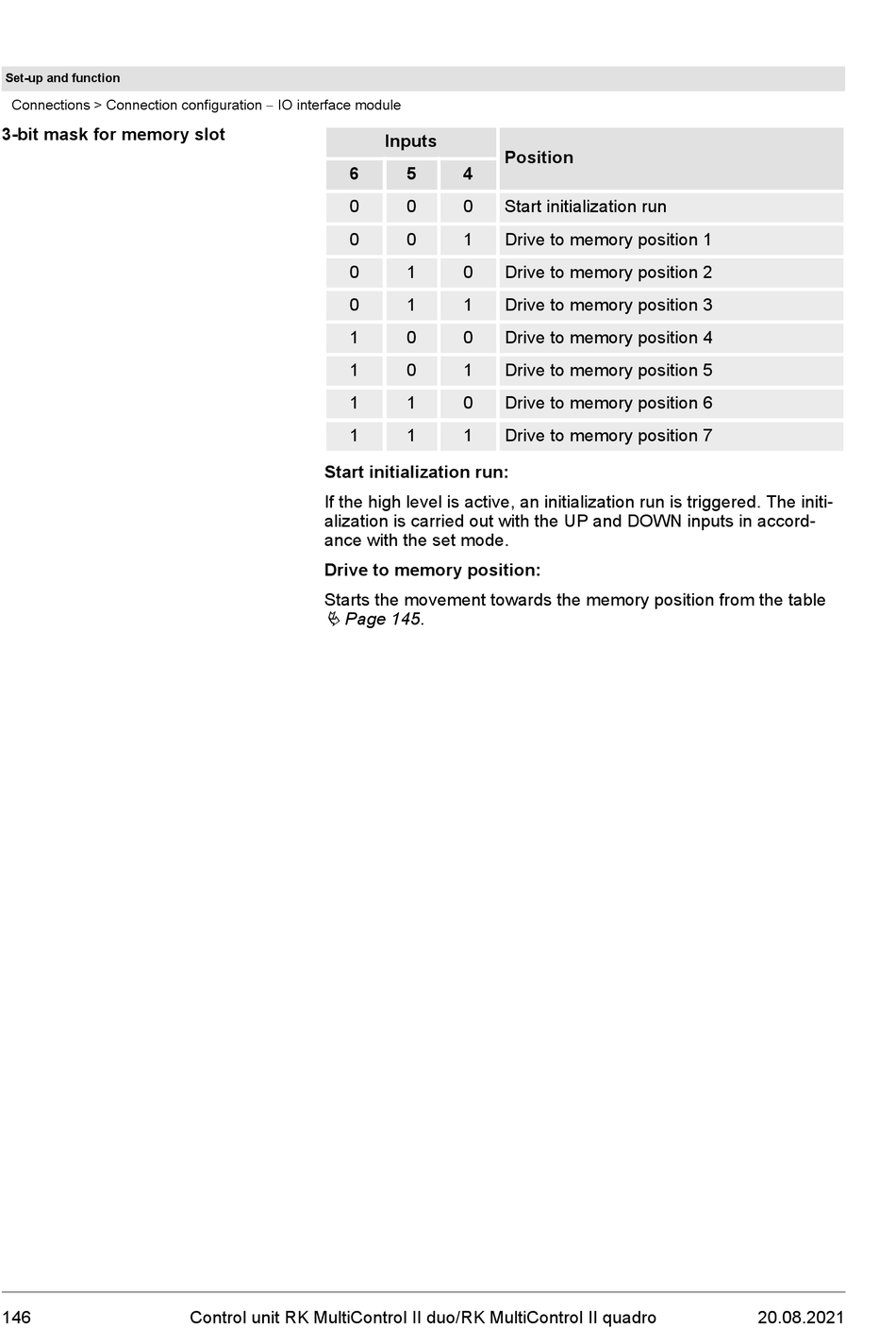

3-bit mask for memory slot
146
6
0
0
0
0
1
1
1
1
Start initialization run:
If the high level is active, an initialization run is triggered. The initi-
alization is carried out with the UP and DOWN inputs in accord-
ance with the set mode.
Drive to memory position:
Starts the movement towards the memory position from the table
Ä Page 145.
Control unit RK MultiControl II duo/RK MultiControl II quadro
Inputs
Position
5 4
0 0 Start initialization run
0 1 Drive to memory position 1
1 0 Drive to memory position 2
1 1 Drive to memory position 3
0 0 Drive to memory position 4
0 1 Drive to memory position 5
1 0 Drive to memory position 6
1 1 Drive to memory position 7
