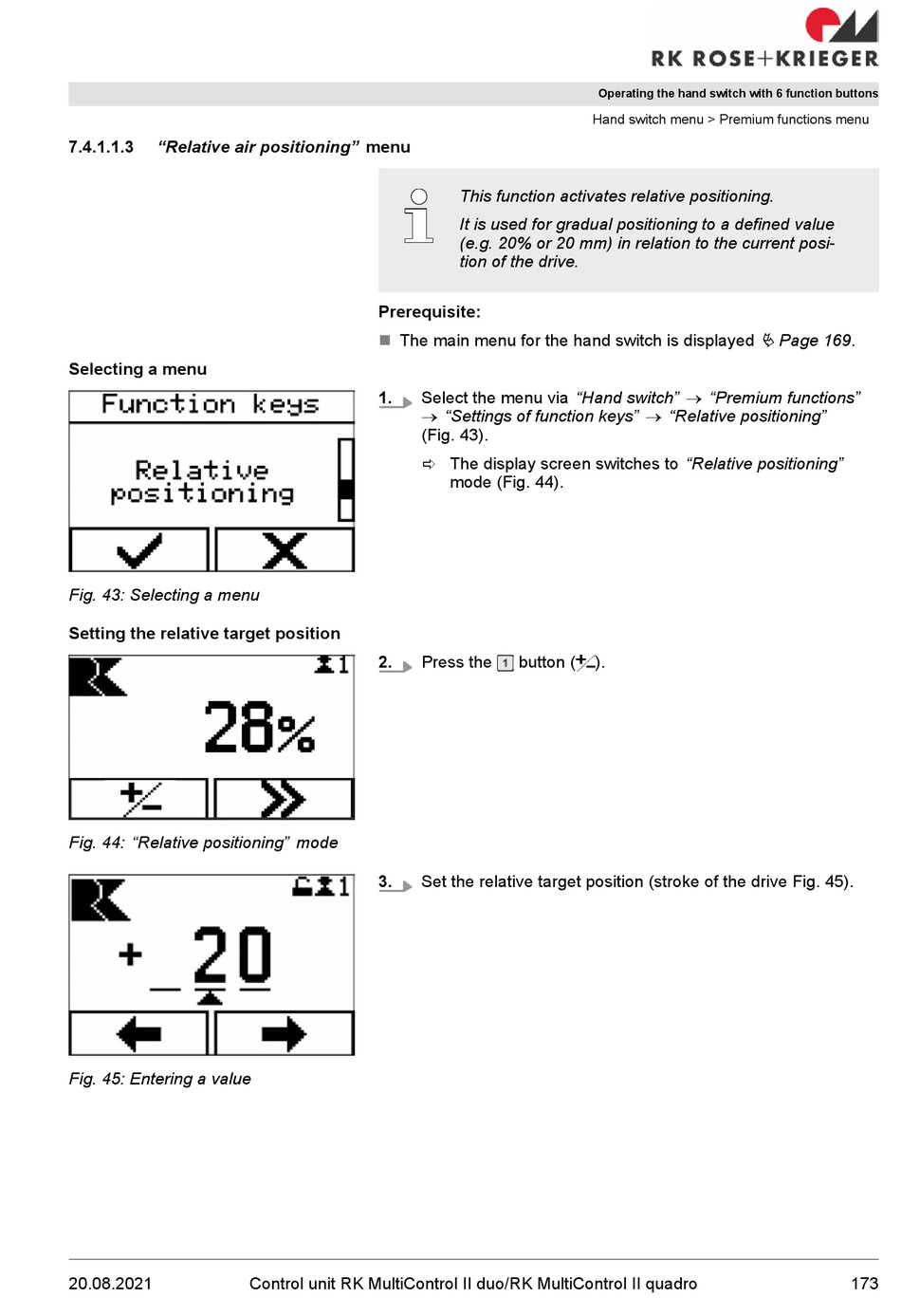

7.4.1.1.3 "Relative air positioning" menu
Selecting a menu
Fig. 43: Selecting a menu
Setting the relative target position
Fig. 44: "Relative positioning" mode
Fig. 45: Entering a value
20.08.2021
Prerequisite:
n The main menu for the hand switch is displayed
1.
2.
3.
Control unit RK MultiControl II duo/RK MultiControl II quadro
This function activates relative positioning.
It is used for gradual positioning to a defined value
(e.g. 20% or 20 mm) in relation to the current posi-
tion of the drive.
Select the menu via "Hand switch" ® "Premium functions"
® "Settings of function keys" ® "Relative positioning"
(Fig. 43).
ð The display screen switches to "Relative positioning"
mode (Fig. 44).
Press the button (
Set the relative target position (stroke of the drive Fig. 45).
Operating the hand switch with 6 function buttons
Hand switch menu > Premium functions menu
Ä Page 169.
).
