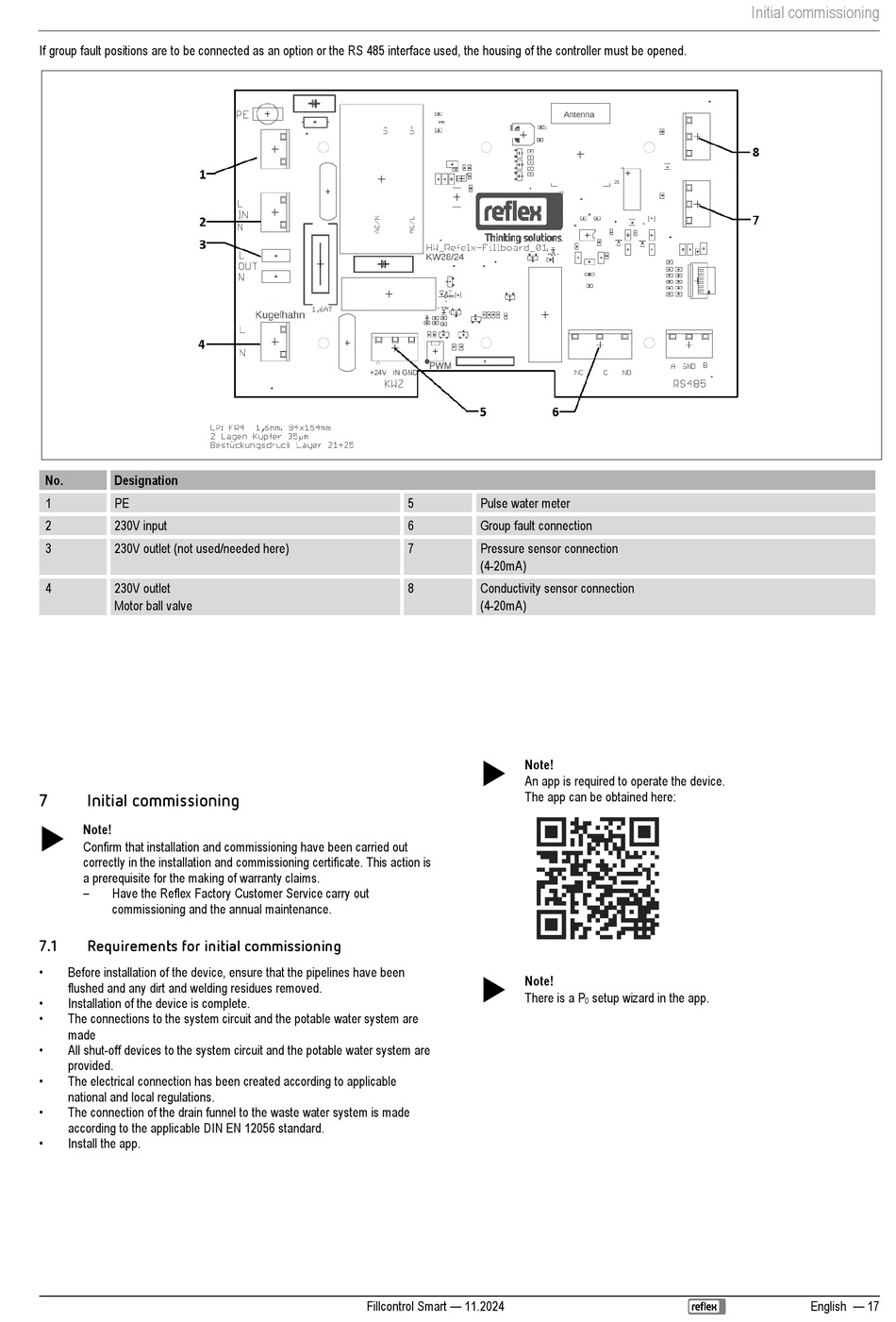

If group fault positions are to be connected as an option or the RS 485 interface used, the housing of the controller must be opened.
No.
Designation
1
PE
2
230V input
3
230V outlet (not used/needed here)
4
230V outlet
Motor ball valve
7
Initial commissioning
Note!
Confirm that installation and commissioning have been carried out
correctly in the installation and commissioning certificate. This action is
a prerequisite for the making of warranty claims.
–
Have the Reflex Factory Customer Service carry out
commissioning and the annual maintenance.
7.1
Requirements for initial commissioning
•
Before installation of the device, ensure that the pipelines have been
flushed and any dirt and welding residues removed.
•
Installation of the device is complete.
•
The connections to the system circuit and the potable water system are
made
•
All shut-off devices to the system circuit and the potable water system are
provided.
•
The electrical connection has been created according to applicable
national and local regulations.
•
The connection of the drain funnel to the waste water system is made
according to the applicable DIN EN 12056 standard.
•
Install the app.
5
Pulse water meter
6
Group fault connection
7
Pressure sensor connection
(4-20mA)
8
Conductivity sensor connection
(4-20mA)
Note!
An app is required to operate the device.
The app can be obtained here:
Note!
There is a P
Fillcontrol Smart — 11.2024
Initial commissioning
setup wizard in the app.
0
English — 17
