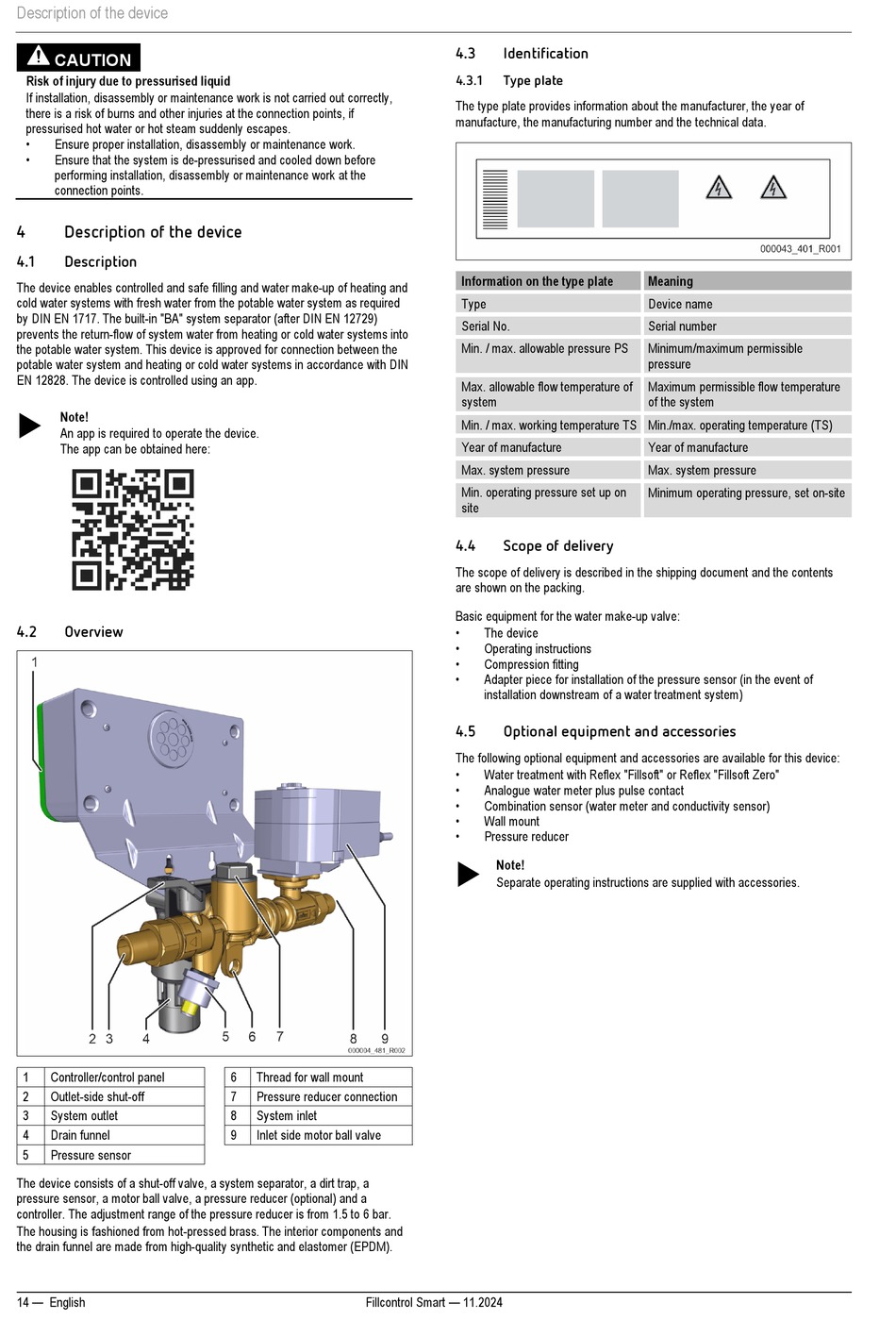

Reflex Fillcontrol Smart Originalbetriebsanleitung Seite 14

Werbung

Verfügbare Sprachen
  • DE

Verfügbare Sprachen

  • DEUTSCH, seite 3
Description of the device
CAUTION
Risk of injury due to pressurised liquid
If installation, disassembly or maintenance work is not carried out correctly,
there is a risk of burns and other injuries at the connection points, if
pressurised hot water or hot steam suddenly escapes.
Ensure proper installation, disassembly or maintenance work.
Ensure that the system is de-pressurised and cooled down before
performing installation, disassembly or maintenance work at the
connection points.
4
Description of the device
4.1
Description
The device enables controlled and safe filling and water make-up of heating and
cold water systems with fresh water from the potable water system as required
by DIN EN 1717. The built-in "BA" system separator (after DIN EN 12729)
prevents the return-flow of system water from heating or cold water systems into
the potable water system. This device is approved for connection between the
potable water system and heating or cold water systems in accordance with DIN
EN 12828. The device is controlled using an app.
Note!
An app is required to operate the device.
The app can be obtained here:
4.2
Overview
1
Controller/control panel
2
Outlet-side shut-off
3
System outlet
4
Drain funnel
5
Pressure sensor
The device consists of a shut-off valve, a system separator, a dirt trap, a
pressure sensor, a motor ball valve, a pressure reducer (optional) and a
controller. The adjustment range of the pressure reducer is from 1.5 to 6 bar.
The housing is fashioned from hot-pressed brass. The interior components and
the drain funnel are made from high-quality synthetic and elastomer (EPDM).
14 — English
6
Thread for wall mount
7
Pressure reducer connection
8
System inlet
9
Inlet side motor ball valve
Fillcontrol Smart — 11.2024
4.3
Identification
4.3.1
Type plate
The type plate provides information about the manufacturer, the year of
manufacture, the manufacturing number and the technical data.
Information on the type plate
Type
Serial No.
Min. / max. allowable pressure PS
Max. allowable flow temperature of
system
Min. / max. working temperature TS Min./max. operating temperature (TS)
Year of manufacture
Max. system pressure
Min. operating pressure set up on
site
4.4
Scope of delivery
The scope of delivery is described in the shipping document and the contents
are shown on the packing.
Basic equipment for the water make-up valve:
The device
Operating instructions
Compression fitting
Adapter piece for installation of the pressure sensor (in the event of
installation downstream of a water treatment system)
4.5
Optional equipment and accessories
The following optional equipment and accessories are available for this device:
Water treatment with Reflex "Fillsoft" or Reflex "Fillsoft Zero"
Analogue water meter plus pulse contact
Combination sensor (water meter and conductivity sensor)
Wall mount
Pressure reducer
Note!
Separate operating instructions are supplied with accessories.
Meaning
Device name
Serial number
Minimum/maximum permissible
pressure
Maximum permissible flow temperature
of the system
Year of manufacture
Max. system pressure
Minimum operating pressure, set on-site
