Operation
8
Operation
1

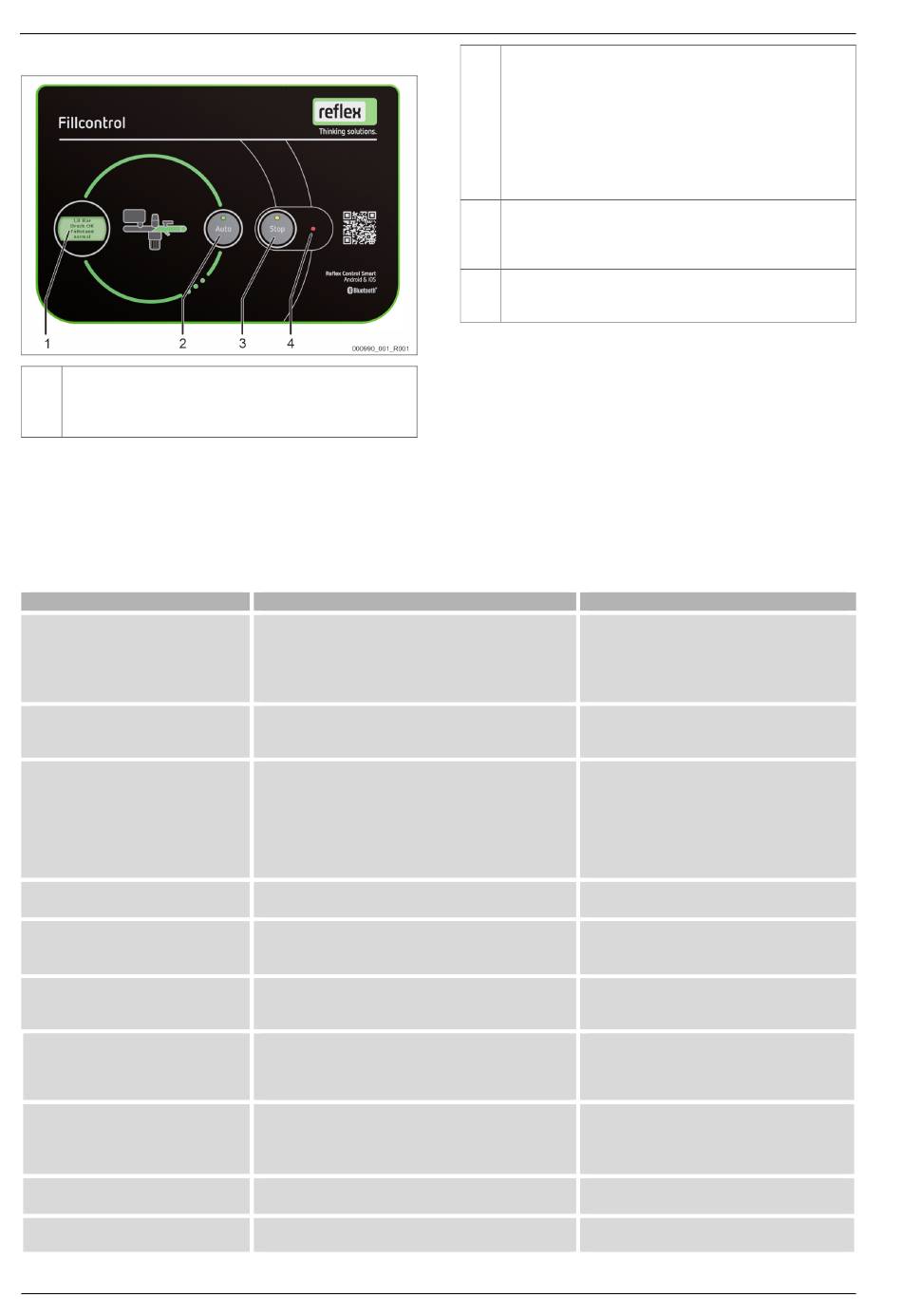

Display
Pressure display
Error & warning messages display
Soft water capacity display
Error table
Troubleshooting is also described in the app. The errors and warning messages are shown on the display.
Error & warning message
01 - Minimum pressure (MAG (expansion
vessel))
02.1 - Low water
02.2 - Low water
05 - Vacuum error
06 - Make-up time exceeded
07 - Make-up cycles/quantity per unit time
exceeded
08 - Pressure measurement (MAG
(expansion vessel))
10 - Maximum pressure
14 - Discharge time
19 - Continuous stop > 4 h
18 — English
Cause
1.
Set value P0 not reached
2.
Water loss in the system
3.
Pump fault
4.
Expansion vessel defective
5.
Water make-up interrupted – or a make-up error.
1.
Dirt trap clogged.
2.
Feed pipe blocked.
Vacuum pressure is not generated quickly enough.
1.
Vacuum pump defective.
2.
Gas in the vacuum pump.
3.
Degassing valve/backflow preventer at the quick air vent
leaking.
4.
Quick air vent dripping
1.
It is not possible to create a vacuum
2.
A vacuum pressure cannot be maintained
1.
Set time exceeded.
2.
Water make-up output insufficient.
3.
Water loss in the system.
1.
Set value exceeded
1.
Controller receives incorrect signal
2.
Pressure sensor outputs values outside the working
range
(4-20 mA)
1.
Set value
Pmax = Psv-0.5 bar exceeded
1.
Degassing line closed.
2.
Dirt trap clogged
1.
The system has been in stop mode for more than 4
hours.
Fillcontrol Smart — 11.2024
2
Auto button/LED
The Auto button starts operation after commissioning or from
stop mode
The Auto LED illuminates green in Automatic mode
The Auto LED is off in stop mode
Display
Pressure display
Error & warning messages display
Soft water capacity display
3
Stop button/LED
The stop button is for entering new values in the controller and
for manual mode (maintenance mode)
The Stop LED lights up in yellow
4
Service LED
The Service LED lights up in the event of a warning message
The Service LED flashes in the event of a fault message
8.1
Fault messages
If errors occur during operation of the system, these are visualised via the LED
and the display.
Errors must be acknowledged with the Auto button.
Until acknowledgement, the system remains in the error state.
Warnings need not be acknowledged. The system continues to run.
As soon as the cause of the warning is cleared, the corresponding
LED goes out.
1.
Check P0 set value.
2.
-
3.
Arrange for the pump to be checked.
4.
Check the system's expansion vessel.
1.
Clean the dirt trap.
2.
Unblock the feed pipe/check the water make-
up line.
1.
Check the pump and replace as necessary.
2.
Replace the backflow preventer at the quick air
vent. (ensure consistent terminology)
3.
4.
Check the water quality – fluid foaming/oxygen
inhibitor. Water quality must comply with VDI
2035
1.
Check pump
2.
Seal the leakage in the system.
1.
Check the set value.
2.
Check feed pipe.
3.
Check system for leaks.
Seal the leakage in the system
Reset the cycle counter – occurs by
acknowledging the error
Connect the pressure sensor - plug
Check the cable for damage.
Replace the pressure sensor.
Check the set value
Check the pressure sensor
Lower the pressure
Check MAG (expansion vessel)
1.
Open the degassing line.
2.
Clean the dirt trap.
Set the controller to automatic mode – by
pressing the Auto-button on the system.
