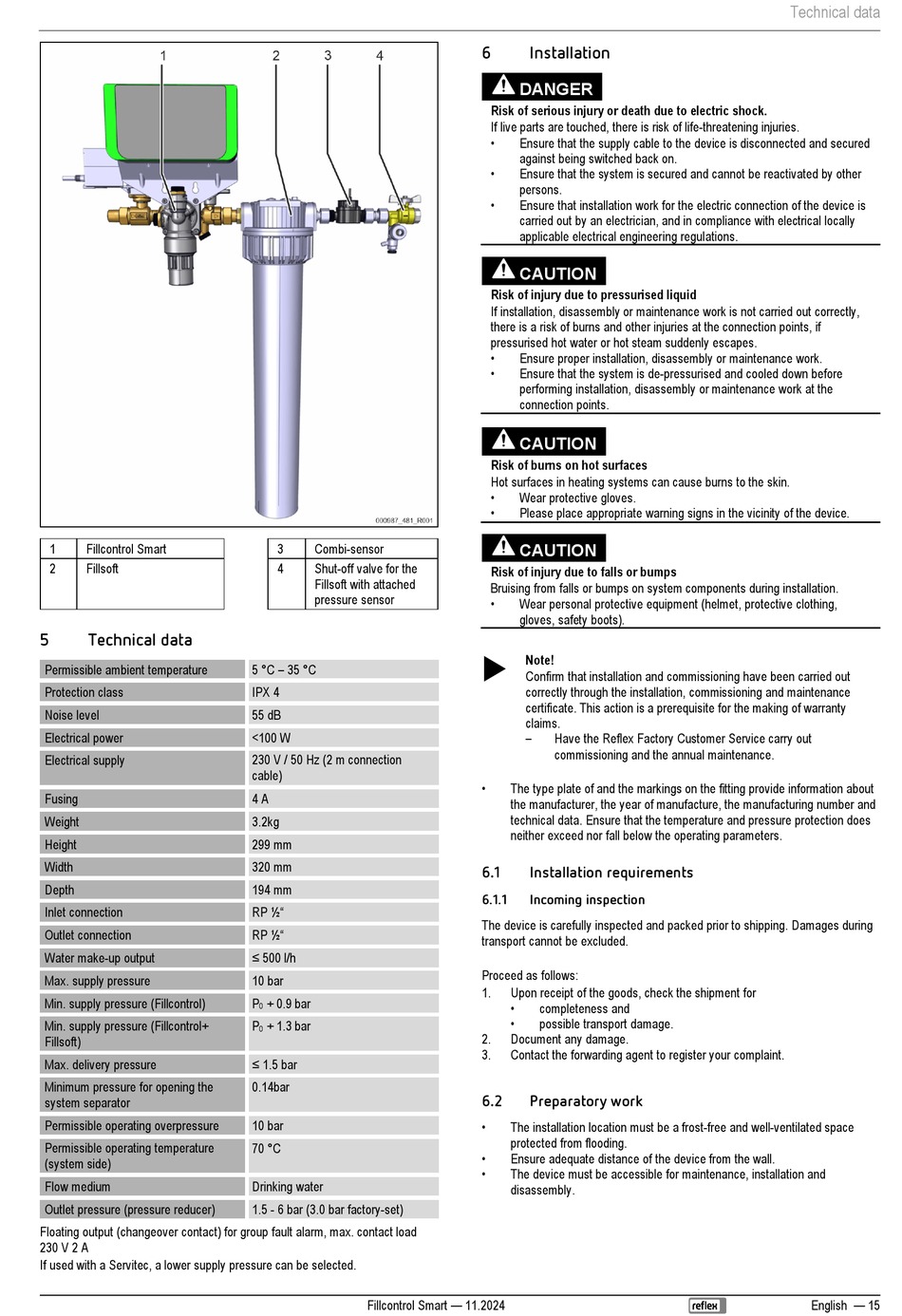

Fillcontrol Smart
2
Fillsoft
5
Technical data
Permissible ambient temperature
Protection class
Noise level
Electrical power
Electrical supply
Fusing
Weight
Height
Width
Depth
Inlet connection
Outlet connection
Water make-up output
Max. supply pressure
Min. supply pressure (Fillcontrol)
Min. supply pressure (Fillcontrol+
Fillsoft)
Max. delivery pressure
Minimum pressure for opening the
system separator
Permissible operating overpressure
Permissible operating temperature
(system side)
Flow medium
Outlet pressure (pressure reducer)
Floating output (changeover contact) for group fault alarm, max. contact load
230 V 2 A
If used with a Servitec, a lower supply pressure can be selected.
3
Combi-sensor
4
Shut-off valve for the
Fillsoft with attached
pressure sensor
5 °C – 35 °C
IPX 4
55 dB
<100 W
230 V / 50 Hz (2 m connection
cable)
4 A
3.2kg
299 mm
320 mm
194 mm
RP ½"
RP ½"
≤ 500 l/h
10 bar
P
+ 0.9 bar
0
P
+ 1.3 bar
0
≤ 1.5 bar
0.14bar
10 bar
70 °C
Drinking water
1.5 - 6 bar (3.0 bar factory-set)
Fillcontrol Smart — 11.2024
6
Installation
DANGER
Risk of serious injury or death due to electric shock.
If live parts are touched, there is risk of life-threatening injuries.
•
Ensure that the supply cable to the device is disconnected and secured
against being switched back on.
•
Ensure that the system is secured and cannot be reactivated by other
persons.
•
Ensure that installation work for the electric connection of the device is
carried out by an electrician, and in compliance with electrical locally
applicable electrical engineering regulations.
CAUTION
Risk of injury due to pressurised liquid
If installation, disassembly or maintenance work is not carried out correctly,
there is a risk of burns and other injuries at the connection points, if
pressurised hot water or hot steam suddenly escapes.
•
Ensure proper installation, disassembly or maintenance work.
•
Ensure that the system is de-pressurised and cooled down before
performing installation, disassembly or maintenance work at the
connection points.
CAUTION
Risk of burns on hot surfaces
Hot surfaces in heating systems can cause burns to the skin.
•
Wear protective gloves.
•
Please place appropriate warning signs in the vicinity of the device.
CAUTION
Risk of injury due to falls or bumps
Bruising from falls or bumps on system components during installation.
•
Wear personal protective equipment (helmet, protective clothing,
gloves, safety boots).
Note!
Confirm that installation and commissioning have been carried out
correctly through the installation, commissioning and maintenance
certificate. This action is a prerequisite for the making of warranty
claims.
–
Have the Reflex Factory Customer Service carry out
commissioning and the annual maintenance.
•
The type plate of and the markings on the fitting provide information about
the manufacturer, the year of manufacture, the manufacturing number and
technical data. Ensure that the temperature and pressure protection does
neither exceed nor fall below the operating parameters.
6.1
Installation requirements
6.1.1
Incoming inspection
The device is carefully inspected and packed prior to shipping. Damages during
transport cannot be excluded.
Proceed as follows:
1.
Upon receipt of the goods, check the shipment for
•
completeness and
•
possible transport damage.
2.
Document any damage.
3.
Contact the forwarding agent to register your complaint.
6.2
Preparatory work
•
The installation location must be a frost-free and well-ventilated space
protected from flooding.
•
Ensure adequate distance of the device from the wall.
•
The device must be accessible for maintenance, installation and
disassembly.
Technical data
English — 15
